Quick Details
-
Brand Name:
-
LIEBO
-
Fork Length:
-
70/630/1200mm
-
Fork Width:
-
Outer width:630/Internal width:240mm
-
Overall Dimensions:
-
1660
-
Weight (KG):
-
400 kg
-
Key words:
-
Self Loading Stacker
-
Loading Capacity:
-
1000kg
-
Feature:
-
High Efficiency
-
Color:
-
Green
-
Advantage:
-
stock
-
After-sales Service Provided:
-
Online Support
-
Product Type:
-
Electric Hydraulic Truck
Quick Details
-
Min. Lifting Height:
-
1630mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LIEBO
-
Fork Length:
-
70/630/1200mm
-
Fork Width:
-
Outer width:630/Internal width:240mm
-
Overall Dimensions:
-
1660
-
Weight (KG):
-
400 kg
-
Key words:
-
Self Loading Stacker
-
Loading Capacity:
-
1000kg
-
Feature:
-
High Efficiency
-
Color:
-
Green
-
Advantage:
-
stock
-
After-sales Service Provided:
-
Online Support
-
Product Type:
-
Electric Hydraulic Truck
Products Description

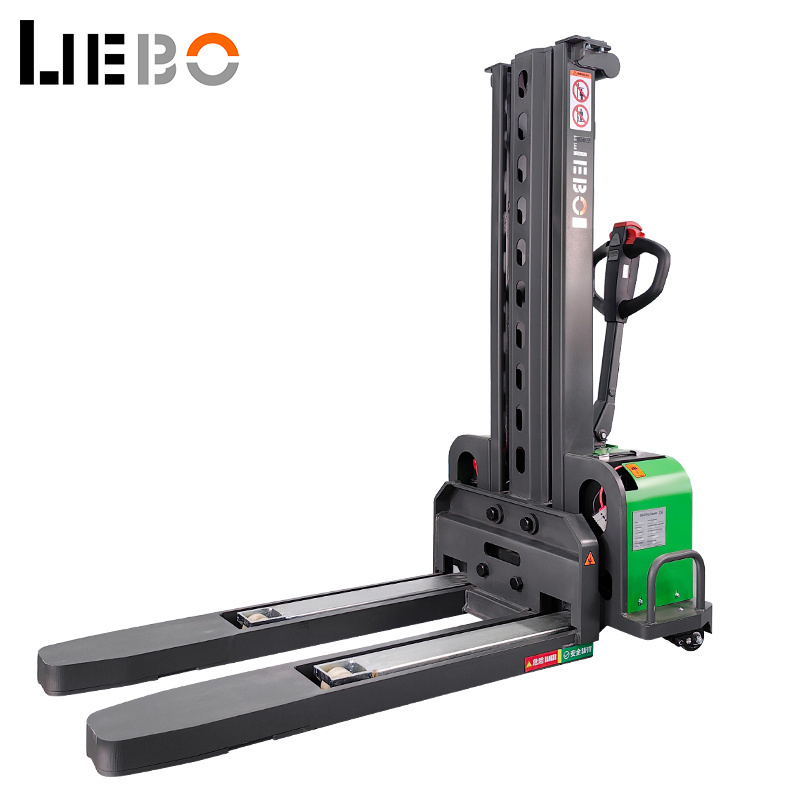

1000kg self loading stacker
more convenient for handling goods,It also be accompanied by empty trucks.
more convenient for handling goods,It also be accompanied by empty trucks.
Specification
|
Model
|
Unit
|
TF10-13
|
TF10-15
|
|
|
Loading Capacity
|
kg
|
1000
|
1000
|
|
|
Loading Centre
|
mm
|
400
|
400
|
|
|
weight
|
kg
|
400
|
410
|
|
|
Lifting height
|
mm
|
1300
|
1500
|
|
|
Forklift Size
|
mm
|
70/630/1200
|
|
|
|
lowered hength
|
mm
|
80
|
80
|
|
|
The fork is wide outside
|
mm
|
630
|
|
|
|
The inside width of the fork
|
Kw/H
|
240
|
|
|
|
Turning radius
|
mm
|
1300
|
|
|
|
wheelbase
|
mm
|
995
|
|
|
|
Front wheel size
|
mm
|
80*50
|
80*50
|
|
|
Rear wheel size
|
mm
|
210*75
|
210*75
|
|
|
Drive motor
|
KW
|
0.75
|
0.97
|
|
|
Hoist motor
|
KW
|
1.2
|
1.2
|
|
|
Battery voltage
|
V/AH
|
24V/48AH
|
24V/48AH
|
|
Details Images
Multi-fuction handle head design
7CM solid weight fork
Brand electric hydraulic system
Applicable pallet
Safety sign
Replaced pull-out lithium battery.
