Quick Details
-
Name:
-
Step Drill Bit Set Pagoda drill
-
Application:
-
Steel, Brass, Copper, Aluminium, Wood, Plastic Material and etc
-
Size:
-
4-12mm, 4-20mm, 4-32mm
-
Surface:
-
Golden, Black or others
-
Shank type:
-
Round Shank (Hex or Triangle Shank are available)
-
Flute:
-
Straight Flute or Spiral Flute
-
Packing:
-
Plastic Box Packing
-
Angle:
-
90 degree
-
MOQ:
-
10pcs
-
OEM/ODM:
-
Acceptable
Quick Details
-
Type:
-
Step Drill Bit
-
Use:
-
Metal Drilling
-
Place of Origin:
-
Zhejiang, China
-
Name:
-
Step Drill Bit Set Pagoda drill
-
Application:
-
Steel, Brass, Copper, Aluminium, Wood, Plastic Material and etc
-
Size:
-
4-12mm, 4-20mm, 4-32mm
-
Surface:
-
Golden, Black or others
-
Shank type:
-
Round Shank (Hex or Triangle Shank are available)
-
Flute:
-
Straight Flute or Spiral Flute
-
Packing:
-
Plastic Box Packing
-
Angle:
-
90 degree
-
MOQ:
-
10pcs
-
OEM/ODM:
-
Acceptable
NEED MORE INTRODUCTION? CLICK HERE!
| PRODUCT DETAILS | ||
| Here we are: Home > HSS Drill Bit > HSS Step Drill Bit | ||

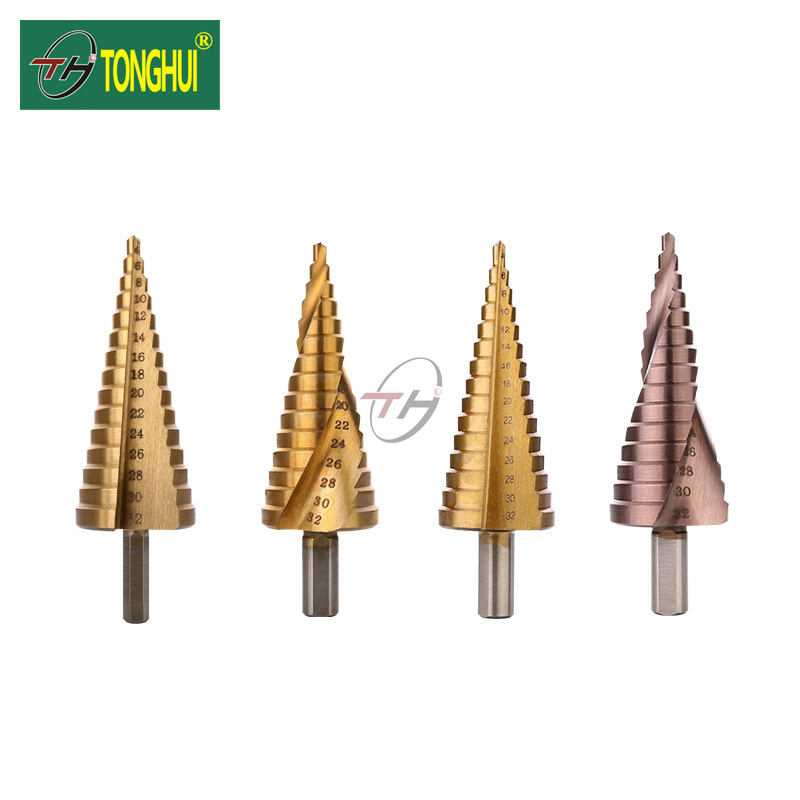

| Product Name | Titanium Coated High Speed Steel Unibit Step Drill Bit Set Pagoda drill | |
| Brand | TONGHUI | OEM/ODM is available |
| Size | 4-12mm, 4-20mm, 4-32mm (Inch Size is Available) | |
| Material | HSS or HSS Cobalt M35 | |
| Flute | Straight Flute or Spiral Flute | |
| Shank type | Round Shank (Hex or Triangle Shank are available) | |
| Surface finish | TiN (Bright, Black & Amber, Co-coated, Black Oxide, Black & Bright, TiAIN are Available) | |
| Application | Steel, Brass, Copper, Aluminium, Wood, Plastic Material and etc | |
| Features |
1. Step drill bits are perfect for drilling and enlarging multiple-holes in thin sections of sheet metals, pipes, plexiglass, plastics, wood up to a thickness of 5mm.
2. 135° Spilt Point Tip: increases cutting speed with self-centering and the drills do not run off center. 3. A variety of hole diameters can be drilled using only one tool. 4. Two Flute Design: provides longer life and better chip removal. 5. Titanium coating provides up to 2 times the life over high speed steel. 6. Only for rotary use. |
|
| Package |
3Pcs in Aluminum Case
(Nylon Bag, Wooden Box, Double Blister, Plastic Box, Metal Box are Available) Outer package: Standard sea freight carton Or Customized package. |
|
CUSTOMIZED SERVICE? CLICK HERE!
| SPECIFICATION PARAMETER | ||||
| Model | Size | Shank Diameter | Step Length | Step Overall Length |
|
HSS-4241
(Straight/Spiral Flute) |
4-12mm | 6mm | 7mm | 42mm |
| 4-20mm | 8mm | 4.5mm | 52mm | |
| 4-32mm | 10mm | 4mm | 78mm | |
|
HSS-6542
(Straight/Spiral Flute) |
4-12mm | 6mm | 4.5mm | 49mm |
| 4-20mm | 8mm | 4.5mm | 53mm | |
| 4-32mm | 10mm | 4mm | 79mm | |
|
Cobalt M35
(Straight/Spiral Flute) |
4-12mm | 6mm | 4.5mm | 44mm |
| 4-20mm | 8mm | 4.5mm | 51mm | |
| 4-32mm | 10mm | 4mm | 78mm | |
| We provide customized service of diameter, overall length, shank type, color and package. Please contact us! | ||||
MORE QUESTIONS? CLICK HERE!
Titanium Coated High Speed Steel Unibit Step Drill Bit Set Pagoda drill
A step drill bit is a drill bit that has the tip ground down to a different diameter. The transition between this ground diameter and the original diameter is either straight, to form a counterbore, or angled, to form a countersink. The advantage to this style is that both diameters have the same flute characteristics, which keeps the bit from clogging when drilling in softer materials, such as aluminum; in contrast, a drill bit with a slip-on collar does not have the same benefit. Most of these bits are custom-made for each application, which makes them more expensive.
(from wikipedia)
