Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RICOMAC
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1135*1525*1140mm
-
Power (kW):
-
4kw
-
Application:
-
spindle sharper
-
Weight (KG):
-
480 kg
-
type:
-
spindle moulder
-
color:
-
customized
-
spindle tilt:
-
0-45
-
Max working thickness:
-
150mm
-
Spindle lifting height:
-
190mm
-
Max stroke of moving table:
-
800mm
-
Fixed table size:
-
1110*550mm
-
Moving table size:
-
1110*260mm
Quick Details
-
Shaft Number:
-
one
-
Spindle Diameter(mm):
-
35 mm
-
Max.Working Thickness(mm):
-
150 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RICOMAC
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1135*1525*1140mm
-
Power (kW):
-
4kw
-
Application:
-
spindle sharper
-
Weight (KG):
-
480 kg
-
type:
-
spindle moulder
-
color:
-
customized
-
spindle tilt:
-
0-45
-
Max working thickness:
-
150mm
-
Spindle lifting height:
-
190mm
-
Max stroke of moving table:
-
800mm
-
Fixed table size:
-
1110*550mm
-
Moving table size:
-
1110*260mm

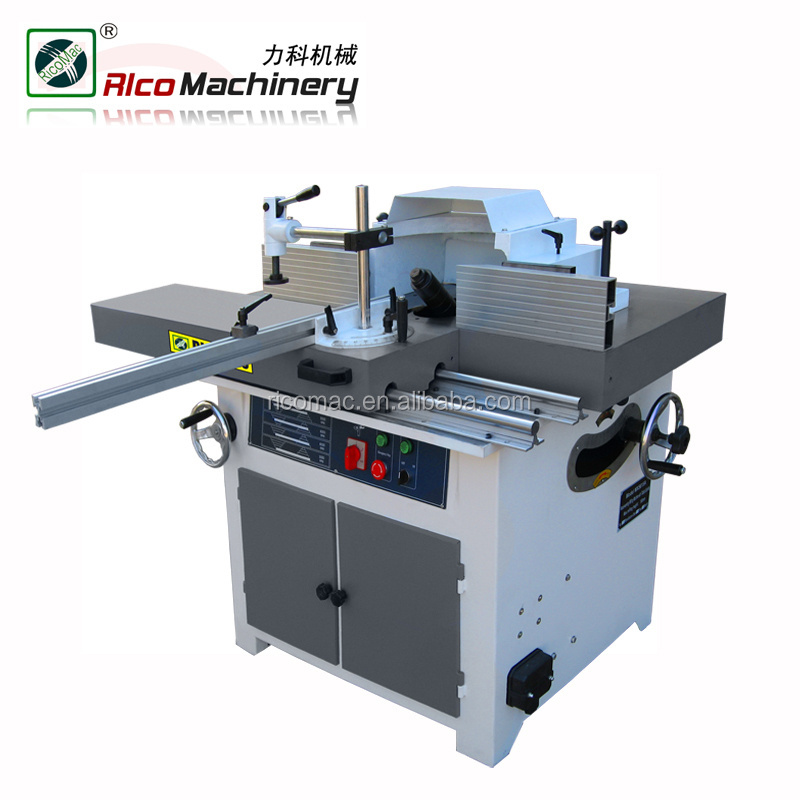

Tilt spindle wood shaping machine with sliding table
1.With overall grinding of the worktable surface,the woodworking milling machine ,with tiltable spindle MX5615A,features high precision
2.The machine has a desirable appearance and has the advantages of easy and safe operation and low noise.
3.The woodworking milling machine with tiltable spindle conducts two-time dynamic balancing operations for spindle assembly to ensure more stable operation of the machine under high speed.
4.Its machine body has aging treatment and precision processing for many times,and is made of low-temperature welding of high-quality steel plate.The machine can achieve sound precision retaining ability .
|
Model |
MX5615A |
|
Max milling height |
150mm |
|
Spindle speed |
3000/4000/6000/8000/10000rmin |
|
Spindle diameter |
35mm |
|
Spindle lifting height |
0-190mm |
|
Model wheel external diameter |
80mm |
|
Max stroke of traveling table |
800mm |
|
Tilting angle of cutter arbor |
0-45 degrees |
|
Motor power |
4kw |
|
Fixed table size |
1110*550mm |
|
Traveling table size |
1110*260mm |
|
Overall dimensions |
1135*1525*1140mm |
|
Net weight |
480kg |
1. MX5615A Woodworking milling machine with tilting spindle Package:
- Package: Plywood Case
- Packing Qty: 1pc
2. Shipping
- We accept shipping departure from Qingdao Port, Shanghai Port , Ningbo Port , Guangzhou Port
- Trade Term acceptable: FOB, C&F, CIF, door to door, Ex-works
