Quick Details
-
Brand:
-
Harxon
-
Air Baud Rate:
-
19200bps, 9600bps
-
Serial Baud Rate:
-
115200bps, 57600bps, 38400bps, 19200bps, 9600bps
-
Communication Protocal:
-
SATEL, Trans EOT, TrimTalk, TrimMark3
-
Frequency:
-
410~470MHz
-
Operating Mode:
-
Half-duplex
-
Channels:
-
36 (programmable)
-
Frequency Stability:
-
≤±1.0ppm
Quick Details
-
Model Number:
-
HX-DU1603D SE
-
Application:
-
Surveying and Mapping
-
Country of Origin:
-
China
-
Brand:
-
Harxon
-
Air Baud Rate:
-
19200bps, 9600bps
-
Serial Baud Rate:
-
115200bps, 57600bps, 38400bps, 19200bps, 9600bps
-
Communication Protocal:
-
SATEL, Trans EOT, TrimTalk, TrimMark3
-
Frequency:
-
410~470MHz
-
Operating Mode:
-
Half-duplex
-
Channels:
-
36 (programmable)
-
Frequency Stability:
-
≤±1.0ppm
Harxon Exhibition
Product Description

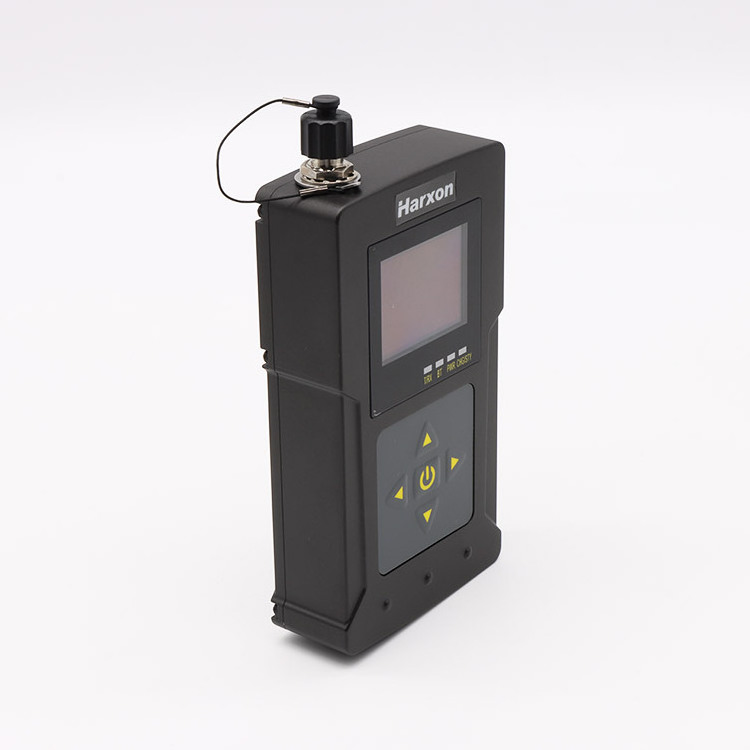

Radio Modem
Specification
|
GENERAL
|
|
|
Frequency
|
410MHz~470MHz
|
|
Operating Mode
|
Half-duplex
|
|
Channel Width
|
25KHz, 12.5KHz
|
|
Modulation Type
|
GMSK/4FSK
|
|
Channels
|
36 (programmable)
|
|
Operating Voltage
|
9~36V
|
|
Power Consumption (Typical)
|
High power 7.5W@12V DC
Low Power 4.0W@12V DC
Standby 1.2W@12V DC
|
|
Frequency Stability
|
≤±1.0ppm
|
|
Size
|
147.6L×83W×31.5H mm
|
|
Weight
|
Approx. 410g
|
|
Antenna Interface
|
TNC Female
|
|
Antenna Interface Impedance
|
50ohm
|
|
Data Interface
|
LEMO 5pin
|
|
MODEM
|
|
|
Air Baud Rate
|
9600bps / 19200bps
|
|
Serial Port Baud
|
9600bps / 19200bps / 38400bps / 115200bps
|
|
TRANSMITTER
|
|
|
RF Output Power
|
410~470MHz
High Power（2.0W） 33.5±1.0dBm@DC 12V
Low Power (0.5W) 27.5±1.0dBm@DC 12V
|
|
Power Stability
|
±1dB
|
|
Adjacent Channel Power
|
>50dB@25KHz
|
|
RECEIVER
|
|
|
Sensitivity
|
-115dBm@BER 10-5， 9600bps
|
|
Co-channel Rejection
|
>-12dB
|
|
RADIO BATTERY
|
|
|
Battery
|
Cylindrical Li-ion battery pack
|
|
Model
|
INR18650F1L 7.26V 6700mAh-2S2P
|
|
Rating
|
12V, 6700mAh, 48.642Wh
|
|
Temperature (operation)
|
-20℃~+60℃
|
|
Temperature (storage)
|
-20℃~+60℃
|
FAQ
Q: Are you a manufacturer or a trading company?
A: We have been professional GNSS antenna manufacturer for 14 years.
Q: What can I buy from Harxon on alibaba?
GNSS antenna, vehicle antenna, communication antenna and wireless data radio.
Q: Can I get free sample?
A: No, we do not offer free samples.
Q: What is the minimum order (MOQ)?
A: For automotive antennas and communication antennas, the MOQ is 500; for other products, the MOQ is 1.
Q: What's the delivery time?
A: The delivery time depends on the product category, please consult customer service.
Q: Could I use my own LOGO or design on products?
A: Please contact our sales manager via sales@harxon.com if you have customization requirements.
Q: What is the payment term?
A: T/T, MoneyGram and Western Union.
Q: Does your product have warranty?
A: Yes, we offer 1-year warranty for our products. After-sales service is also available.
