Quick Details
-
Length:
-
1m/2m/3m/5m/customized
-
Connector 1:
-
N-Male
-
Connector 2:
-
4.3-10 Male
-
Cable type:
-
3/8" Superflex RF Cable
-
Jacket:
-
PE Jacket
-
Impedance:
-
50ohm
-
Degree Of Protection:
-
IP68
-
Frequency:
-
800-3800MHz
-
Insertion Loss:
-
≤1dB
-
PIM:
-
≤-155dBc@2x20W
Quick Details
-
Brand Name:
-
CenRF
-
Model Number:
-
DM-43M-1/2S-LM
-
Place of Origin:
-
Zhejiang, China
-
Length:
-
1m/2m/3m/5m/customized
-
Connector 1:
-
N-Male
-
Connector 2:
-
4.3-10 Male
-
Cable type:
-
3/8" Superflex RF Cable
-
Jacket:
-
PE Jacket
-
Impedance:
-
50ohm
-
Degree Of Protection:
-
IP68
-
Frequency:
-
800-3800MHz
-
Insertion Loss:
-
≤1dB
-
PIM:
-
≤-155dBc@2x20W
Specification
|
General Specifications
|
|
|
|
|
|
|||||
|
Jumper Length
|
1m, 2m, 3m, 5m
|
|
|
|
|
|||||
|
Interface 1 & Interface 2
|
N-Male & 4.3-10Male
|
|
|
|
|
|||||
|
Cable Type
|
3/8'' Super Flexible Coaxial Cable
|
|
|
|
|
|||||
|
Interface According To
|
IEC 60169-4, VG 95250, EN 122190, DIN 47223, GJB681-89, GJB360A-96
|
|
|
|
|
|||||
|
Electrical Specifications
|
|
|
|
|
|
|||||
|
Impedance
|
50 ohm
|
|
|
|
|
|||||
|
Frequency
|
800-3800MHz
|
|
|
|
|
|||||
|
VSWR
|
≤1.11 (0.8-2.2GHz), ≤1.18 (2.2-2.7GHz)
|
|
|
|
|
|||||
|
Operating Voltage
|
1500V
|
|
|
|
|
|||||
|
Insulation Voltage
|
≥2500V
|
|
|
|
|
|||||
|
Insulation Resistance
|
≥5000MΩ
|
|
|
|
|
|||||
|
PIM (900MHz, 1800MHz 2×20W)
|
≤-155dBc@2x20W
|
|
|
|
|
|||||
|
Insertion Loss
|
1m
|
2m
|
3m
|
|
Frequency
|
|||||
|
|
≤0.15dB
|
≤0.26dB
|
≤0.36dB
|
|
890-960MHz
|
|||||
|
|
≤0.20dB
|
≤0.36dB
|
≤0.52dB
|
|
1710-1880MHz
|
|||||
|
|
≤0.26dB
|
≤0.42dB
|
≤0.58dB
|
|
1920-2200MHz
|
|||||
|
|
≤0.30dB
|
≤0.50dB
|
≤0.70dB
|
|
2500-2690MHz
|
|||||
|
|
≤0.30dB
|
≤0.64dB
|
≤0.96dB
|
|
5800-5900MHz
|
|||||
|
Mechanical Specifications
|
|
|
|
|
|
|||||
|
Total Length Of Cable Assemblies
|
1000mm±10, 2000mm±20, 3000mm±25, 5000mm±40
|
|
|
|
|
|||||
|
Max. tensile Strength
|
750N
|
|
|
|
|
|||||
|
Min. bending Radius
|
32mm
|
|
|
|
|
|||||
|
Environmental Specifications
|
|
|
|
|
|
|||||
|
Temperature Range
|
-40℃ to +85℃
|
|
|
|
|
|||||
|
Degree Of Protection (mated pair)
|
IEC 60529, IP68
|
|
|
|
|
|||||
|
Environmental Standards
|
RoHS
|
|
|
|
|
|||||
|
Mechanical Shock Test Method
|
MIL-STD-202, Method 213, Test Condition I
|
|
|
|
|
|||||
|
Moisture Resistance Test Method
|
MIL-STD-202F, Method 106F
|
|
|
|
|
|||||
|
Thermal Shock Test Method
|
MIL-STD-202F, Method 107G, Test Condition A-1
|
|
|
|
|
|||||
|
Material & Plating
|
|
|
|
|
|
|||||
|
Cable Parts
|
Inner Conductor
|
aluminum wire covered with copper (φ3.60mm)
|
|
|
|
|||||
|
|
Insulation Dielectric
|
polyethylene foam (φ8.90mm)
|
|
|
|
|||||
|
|
Outer Conductor
|
corrugated copper tube (φ12.20mm)
|
|
|
|
|||||
|
|
Cable Jacket
|
PE (φ13.60mm)
|
|
|
|
|||||
|
Connector Parts
|
|
Material
|
Plating
|
Thickness
|
|
|||||
|
|
Inner Conductor
|
Brass
|
Silver
|
≥0.003mm
|
|
|||||
|
|
Insulation Dielectric
|
PTFE
|
_
|
_
|
|
|||||
|
|
Outer Conductor
|
Brass
|
Ternary Alloy
|
≥0.002mm
|
|
|||||
|
Sealing
|
Heat shrinking tube or Molding
|
|
|
|
|
|||||

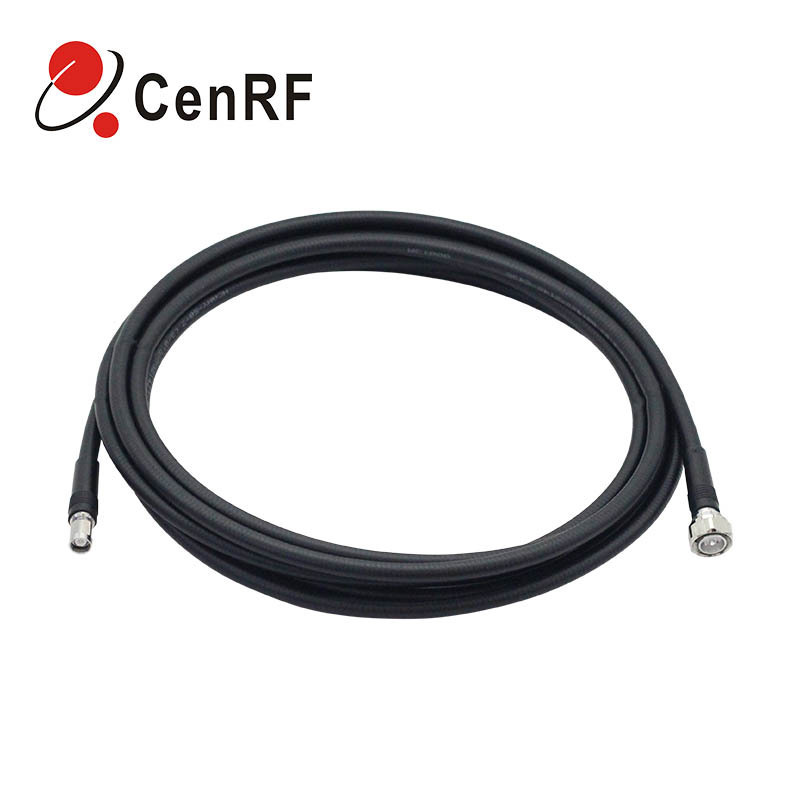

Product Show
3/8'' Super Flexible Coaxial Cable
1. High Flexibility: The cable has a high level of flexibility that allows you to bend and route it easily to fit your needs. Its flexibility also makes it ideal for use in tight spaces.
2. Low Attenuation: The cable has a low attenuation level, which means that you can transmit signals over long distances without experiencing significant signal loss.
3. High Shielding: The cable has a high shielding level that protects against electromagnetic interference (EMI).
4. Low VSWR: The cable has a low voltage standing wave ratio (VSWR) that ensures maximum power transfer between the transmitter and the receiver.
Cable workshop
Our Team
Hangzhou Shengtong Technology Co,. Ltd
Hangzhou Shengtong Technology Co.,ltd , Is A Certified ISO9001-2015 Company Located In Hangzhou Were Founded In 1999.
There Is Well Educated Management Team And Also Experienced Engineers Major In Microwave Technology.
It Is Specialize In The Products Including, Comprehensive Mobile Enhancement Solutions, All Kinds Of Repeater, Rf Components, Antenna,Subassembly To Help To Optimize Operators’ Mobile Networks
