XCMG Official Concrete Blocks Machine MM4-15 Hollow Cement Blocks Machine Maker

XCMG Official Concrete Blocks Machine MM4-15 Hollow Cement Blocks Machine Maker

FOB Reference Price: Get Latest Price

≥1 Pieces

US $40000

≥5 Pieces

US $25000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brick size:: 400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm

Place of Origin:: Jiangsu, China

Brand Name:: XCMG

Voltage:: 21Mpa

Dimension(L*W*H):: 8600x2300x2600mm

Weight (KG):: 8000 kg

Vibration motor:: 2x7.5KW

Pallet Size:: 980x560mm

Quick Details

Type:: Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Autoclaved aerated concrete block (AAC)

Brick Raw Material:: CONCRETE

Production Capacity (Pieces/8 hours):: 4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours

Brick size:: 400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm

Place of Origin:: Jiangsu, China

Brand Name:: XCMG

Voltage:: 21Mpa

Dimension(L*W*H):: 8600x2300x2600mm

Weight (KG):: 8000 kg

Vibration motor:: 2x7.5KW

Pallet Size:: 980x560mm

Product Description

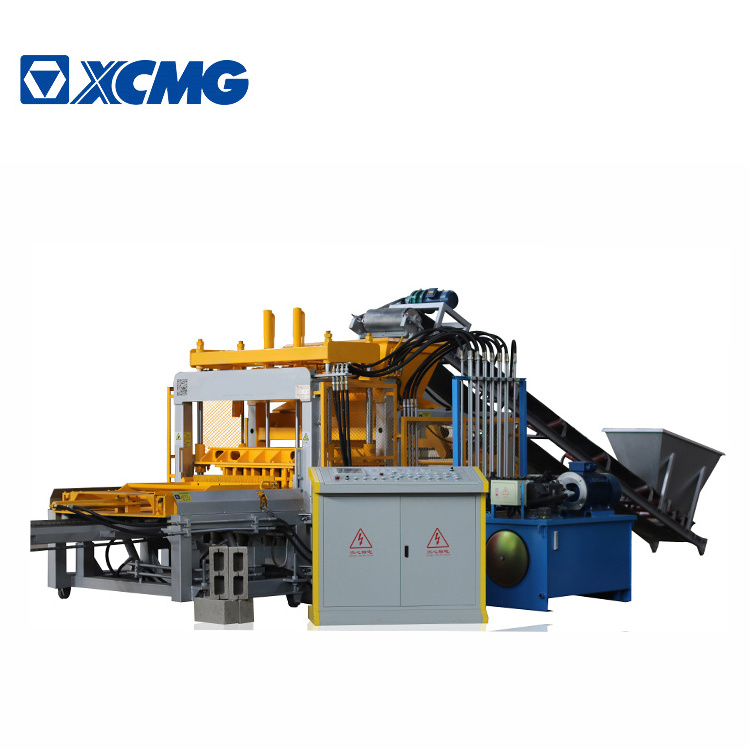

XCMG Official Concrete Blocks Machine MM4-15 Hollow Cement Blocks Machine Maker

MM4-15 Cement brick and paver making machine is a top-class small-capacity machine,which is designed to consistently produce high-quality bricks, industrial strength pavers, hollow blocks, decking blocks, retaining wall blocks and garden kerbs. With the pallet size at 980x560mm or 850x560mm according to the size of concrete products to be made by customer. To make the 8 inch hollow block,it is 4pcs per drop,around 5,700pcs per shift at 8 hours. For making rectangular paver at 200x100x60mm,the output is 16pcs per drop,at 450 square meter per shift. Technical Characteristics: Hydraulic system: With"Yuken" brand single proportional valve and directional relief valves, the flow and pressure of each movement could be adjusted on touch panel,machine running smoothly without impact,through the double vane pump,different actions run simultaneously,greatly improve production efficiency. PLC Control system: Combined with German automatic control technology and system, it adopts German Siemens PLC and Siemens touch screen control to make each action accurate and reliable, computer operation saves time and effort, easy operation with low failure rate. Vibration system: With Static and Dynamic vibration table,it is designed to ensure the amplitude of the vibration table, so as to ensure the high density of concrete products.Adjustable vibration frequency/speed control via VSD (Variable Speed Drive) provides optimum compaction for different product types being manufactured, reducing machine maintenance costs and increasing productivity.

Product Paramenters

Technical Specification for MM4-15 Automatic Block Making Machine
Pallet Size:	980x560mm
Vibration	Table Vibration
Rating Pressure	21Mpa
Cycle time	14-22s
Motors Power:	41KW For Main forming machine parts only with material conveyor belt
Vibration motor	2x7.5KW
Machine Dimensions:	8600x2300x2600mm
Gross Weight:	About 8T
Raw Materials:	crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes
Applied Products:	concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields:	widely used in buildings, road pavings, squares, gardens, landscaping, city constructions
Installation power of plant	70-80KW
Actual Power consumption	30-35kw per hour
