Quick Details
-
Interface Standard:
-
TYEP 2/GBT
-
Output Current:
-
32A, 8A~32A Adjustable
-
Output Power:
-
22KW
-
Input Voltage:
-
380V 3 PHASE
-
Input Frequency:
-
50Hz
-
Charging Interface Type:
-
IEC 62196 (Type 2)
-
Protection Level:
-
IP65
-
Over-voltage Protection:
-
Yes
-
Under-Voltage Protection:
-
Yes
-
Overload Protection:
-
Yes
-
Earth Leakage Protection:
-
Yes
-
Grounding Protection:
-
Yes
-
Lightning Protection:
-
Yes
Quick Details
-
Place of Origin:
-
Anhui, China
-
Model Number:
-
TA-1AC220/3.5
-
Brand Name:
-
TARY
-
Interface Standard:
-
TYEP 2/GBT
-
Output Current:
-
32A, 8A~32A Adjustable
-
Output Power:
-
22KW
-
Input Voltage:
-
380V 3 PHASE
-
Input Frequency:
-
50Hz
-
Charging Interface Type:
-
IEC 62196 (Type 2)
-
Protection Level:
-
IP65
-
Over-voltage Protection:
-
Yes
-
Under-Voltage Protection:
-
Yes
-
Overload Protection:
-
Yes
-
Earth Leakage Protection:
-
Yes
-
Grounding Protection:
-
Yes
-
Lightning Protection:
-
Yes
We are a factory,professional factory!!!
Price is our only advantage.
Provide OEM &OEM Serivice, contact us!
WhatsApp/Wechat:+86
18256980782(IVY ZUO)

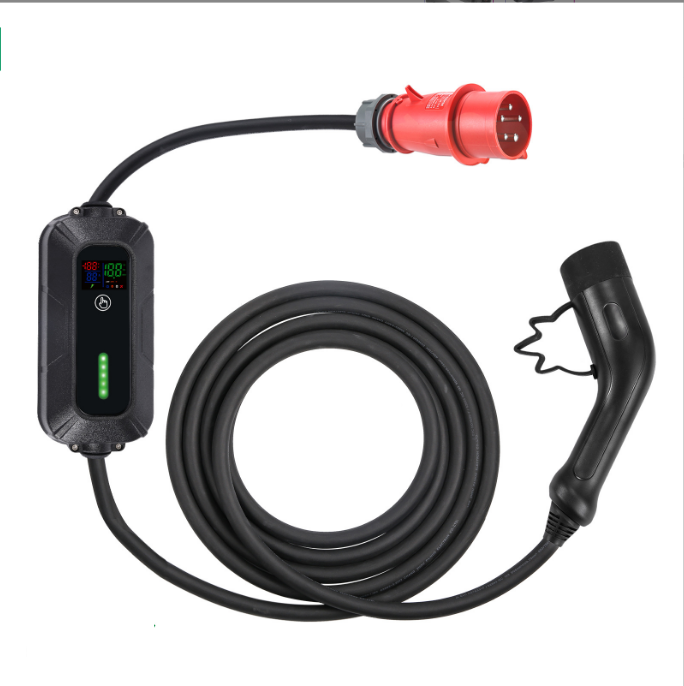

Product Description
Specification
|
item
|
value
|
|
Model Number
|
TA-1023
|
|
Input&Output Voltage
|
85-380V AC
|
|
Operating Temperature
|
20℃~ 60℃
|
|
Rated Power
|
MAX 22KW
|
|
Output Current
|
10A~32A Adjustable
|
|
Input Frequency
|
50Hz/60hz
|
|
Charging Interface Type
|
IEC 62196 (Type 2)
|
|
Protection Level
|
IP65
|
|
Over-voltage Protection
|
Yes
|
|
Under-Voltage Protection
|
Yes
|
|
Overload Protection
|
Yes
|
|
Earth Leakage Protection
|
Yes
|
|
Grounding Protection
|
Yes
|
|
Lightning Protection
|
Yes
|
Charging Standard : IEC62196/SAEJ1772/ GB/T20234
Rared Current :Default32A(Adjustable 10A/13A/16A/20A)
Rated power : Max. 22KW
Input&Output Voltage : 85-380V AC
Input Frequency : 50-60Hz
Operating Temperature : 20℃~ 60℃
Insulation Resistance : >1000MΩ （DC500V）
Contact Resistance :0.5mΩ
Housing Fire Rating: UL94V-0
Length Of Cable : 5 Meter(16.5feet)or customized
Warnings
Children should be supervised when in the vicinity of the charger while plug in.
Do not place the EV charger near explosive, flflammable materials, chemical vapours or potentially
hazardous materials.
The product must be grounded. If it should malfunction or break down, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. The unit detects the presence of a good
ground connection and will not operate if it is disconnected.
Do not operate your charger with a damaged output cable, charger connector, or module.
Do not disassemble the internal components of the EV charger without permission, this will void the
warranty.
Always position the charger output cable so that it will bot be driven over, stepped on, tripped over, or
otherwise damaged or stressed.
Disconnect the charger from the wall outlet before cleaning it. To clean the charger, wipe it with a clean
cloth dampened with water or a mild detergent solution suitable for use on automobile parts. Do not use
chemicals or solvents.
Do not submerge the control box or charging connector in water.
