Quick Details
-
Fiber Diameter:
-
2-5um, 3-4mm
-
Thermal Conductivity:
-
0.055-0.180, 0.1-0.13 w/m.k
-
Width:
-
20-150mm
-
Length:
-
30m,50m,100m
-
Shrinkage (1800℉, 3h):
-
-3%, -3%
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hitex
-
Model Number:
-
TCR2900
-
Product name:
-
Heat Insualtion Refractory Ceramic Fiber Tape
-
Density (kg/m3):
-
160
Quick Details
-
Chemical Composition:
-
AL2O3,SIO2
-
Ultimate Strength (≥ MPa):
-
0.5, 0.04
-
Working Temperature:
-
1260, 1000
-
Fiber Diameter:
-
2-5um, 3-4mm
-
Thermal Conductivity:
-
0.055-0.180, 0.1-0.13 w/m.k
-
Width:
-
20-150mm
-
Length:
-
30m,50m,100m
-
Shrinkage (1800℉, 3h):
-
-3%, -3%
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hitex
-
Model Number:
-
TCR2900
-
Product name:
-
Heat Insualtion Refractory Ceramic Fiber Tape
-
Density (kg/m3):
-
160

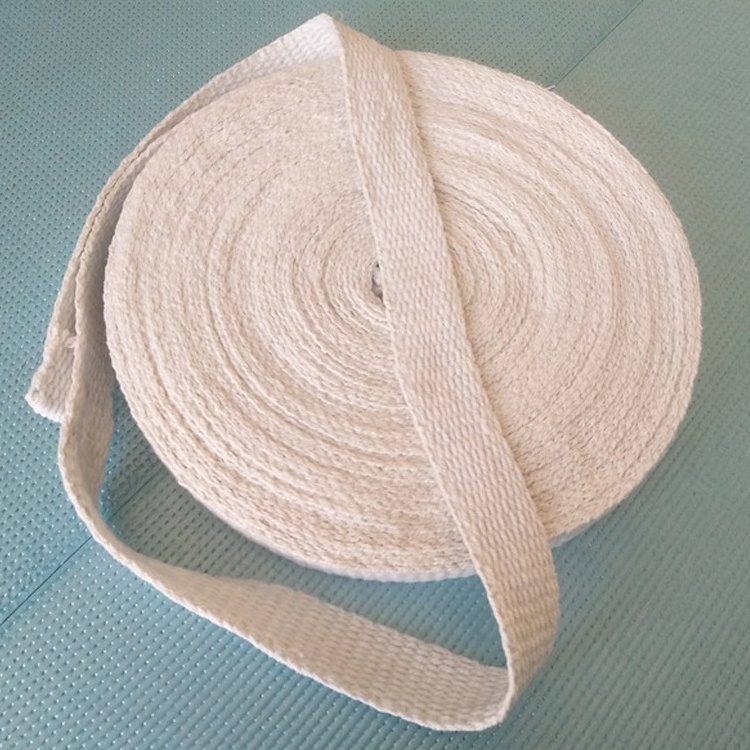

Heat Insulation Refractory Ceramic Fiber Tape
Ceramic Fiber Tape is a woven tape made of our high quality ceramic fiber yarns. It can be used for high temperature applications up to 1000°C. The tape is reinforced with fiberglass filament, and optional stainless steel wire. It contains a certain amount of binder material which is normally burned at lower temperature and does not affect the insulation property.
Idea for protective and insulating covers or shields, cable or pipe wrapping, expansion joints, high temperature seals or gaskets. The product has been widely used in welding, foundry works, aluminum and steel mills, boiler insulation and seal, exhaust systems, shipyards, refineries, power plants, and chemical plants.
|
Item No. |
Thickness |
Width |
Length |
Reinforced |
Weight Per Roll |
|
TCR2900G-2-25-30 |
2mm |
25mm |
30m |
Glass yarn |
0.83kg |
|
TCR2900G-2-50-30 |
2mm |
50mm |
30m |
Glass yarn |
1.65kg |
|
TCR2900G-2-75-30 |
2mm |
75mm |
30m |
Glass yarn |
2.48kg |
|
TCR2900G-2-100-30 |
2mm |
100mm |
30m |
Glass yarn |
3.3kg |
|
TCR2900G-3-25-30 |
3mm |
25mm |
30m |
Glass yarn |
1.05kg |
|
TCR2900G-3-50-30 |
3mm |
50mm |
30m |
Glass yarn |
2.1kg |
|
TCR2900G-3-75-30 |
3mm |
75mm |
30m |
Glass yarn |
3.15kg |
|
TCR2900G-3-100-30 |
3mm |
100mm |
30m |
Glass yarn |
4.2kg |
|
TCR2900S-2-25-30 |
2mm |
25mm |
30m |
SS wire |
0.86kg |
|
TCR2900S-2-50-30 |
2mm |
50mm |
30m |
SS wire |
1.73kg |
|
TCR2900S-2-75-30 |
2mm |
75mm |
30m |
SS wire |
2.59kg |
|
TCR2900S-2-100-30 |
2mm |
100mm |
30m |
SS wire |
3.45kg |
|
TCR2900S-3-25-30 |
3mm |
25mm |
30m |
SS wire |
1.1kg |
|
TCR2900S-3-50-30 |
3mm |
50mm |
30m |
SS wire |
2.25kg |
|
TCR2900S-3-75-30 |
3mm |
75mm |
30m |
SS wire |
3.4kg |
|
TCR2900S-3-100-30 |
3mm |
100mm |
30m |
SS wire |
4.5kg |
*Specific products could be made according to customers’requirements.
