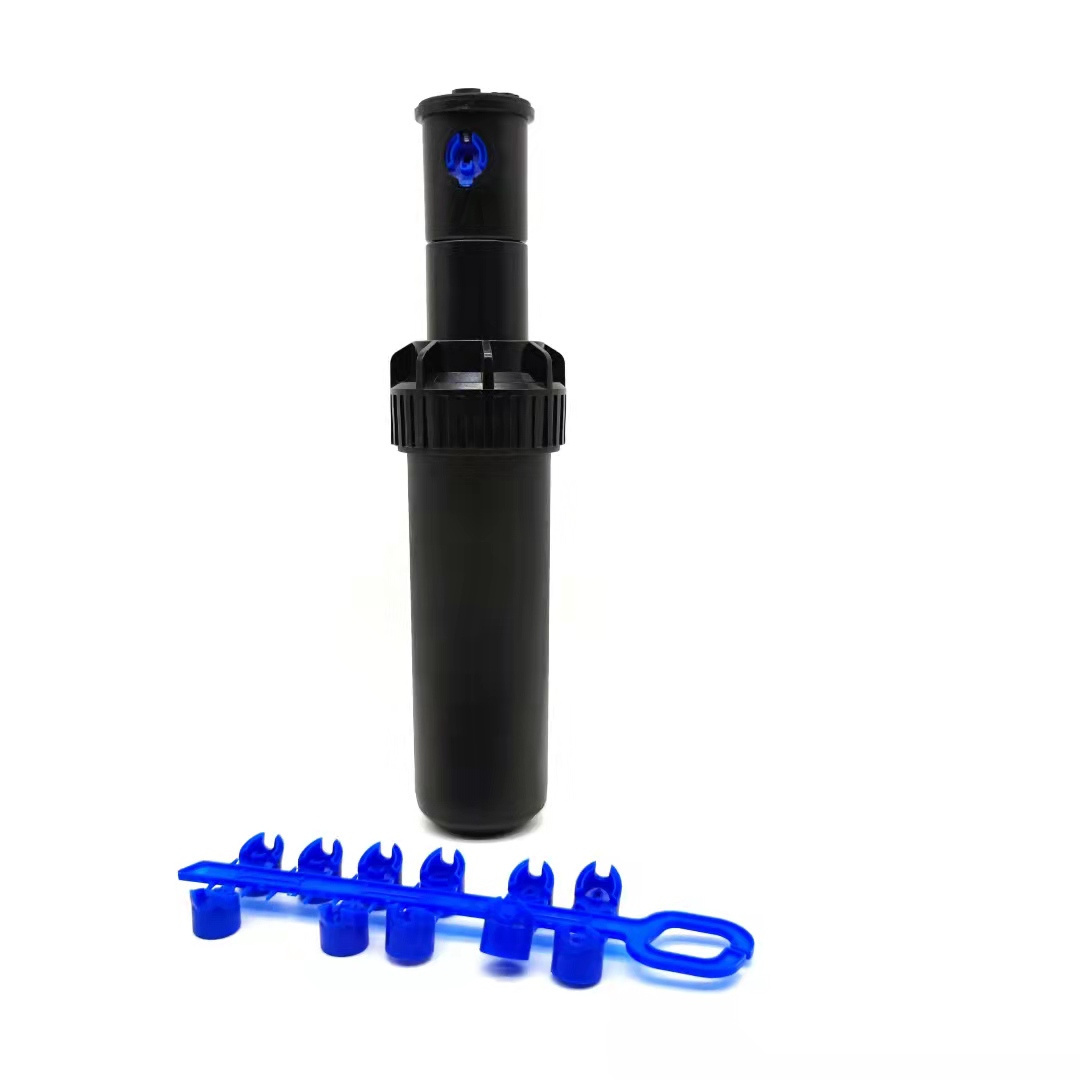

Durable 3/4" Underground Adjustable Hunter Pop up Sprinklers For Lawn Irrigation sprinkler system

FOB Reference Price: Get Latest Price

≥20 Pieces

US $6.9

≥100 Pieces

US $6.2

≥500 Pieces

US $5.8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Agricultural Farmland Irrigation System

Feature:: Eco Friendly

Usage:: Agriculture Drip Irrigation System

Certification:: ISO9001

Product name:: pop-up sprinkler for garden

Wet diameter:: 6-16m

Flow rate:: 0.17-3m3/h

adapter size:: 3/4''male

Working Pressure:: 0.17-0.45Mpa

The sample:: provide

Quick Details

Place of Origin:: Shandong, China

Brand Name:: Dongfeng intelligent Agriculture

Model Number:: DFDT0038

Application:: Agricultural Farmland Irrigation System

Feature:: Eco Friendly

Usage:: Agriculture Drip Irrigation System

Certification:: ISO9001

Product name:: pop-up sprinkler for garden

Wet diameter:: 6-16m

Flow rate:: 0.17-3m3/h

adapter size:: 3/4''male

Working Pressure:: 0.17-0.45Mpa

The sample:: provide

Product Description

Parameter

Connection size: [DN20] [3/4”]

Working pressure: 0.17-0.45Mpa

Water flow rate: 0.17-2.19m3/h

Spraying radius: 7.0-15.2m

Lifting height: 102mm

This series of sprinklers are suitable for the irrigation of small and medium-sized lawns and flowers in parks, playgrounds, campuses, industrial and mining enterprises, and streets.

Features

1. The materials are engineering plastics and stainless steel, with high strength and corrosion resistance (chemical fertilizers, pesticides, etc.). 2. Built-in filter screen, nozzle and filter screen are easy to disassemble and replace. 3. The lifting column has a self-cleaning function, which can adapt to extremely harsh site conditions to ensure the reliable operation of the nozzle. 4. The entire inner core can be unscrewed from the top of the nozzle (the connection between the shell and the pipe does not move), which is convenient for cleaning and maintenance. 5. Integrating full circle and adjustable angle spraying, the top angle adjustment range is 40°～360°, the operation is simple, and the nozzle replacement is convenient. 6. The range adjustment screw can reduce the range by 35%.

Nozzle combination

Nozzle combination: It is realized that there are multiple large nozzles on each nozzle. The larger the number, the greater the
range of the nozzle, which is convenient for correct selection during installation. 12 interchangeable nozzles

Instructions for use

① Lock the nozzle and adjust the shape of the water ② Nozzle lifting hole ③ Angle adjustment

Adjustment method: The "+" twist is to increase the angle, and the "-" twist is to reduce the angle. Usually a screwdriver rotates 90 degrees. Note: When adjusting the angle, adjust the angle clockwise. Do not twist back when the nozzle is halfway. You must wait for the nozzle to turn around and hear a "click" before turning back.

Why choose us:

Made of high-quality plastic and stainless steel Factory delivery, orders can be adjusted in time Sufficient production capacity, delivery on time within the agreed time Faster logistics service, shipping port: Qingdao Delivery time: 3-7 days The sprinkler accessory products are rich, to meet your needs

Specification
