Quick Details
-
Warranty:
-
25 years, 25 Years Output Power Guarantee
-
Brand Name:
-
Longi
-
Model Number:
-
LR5-72HPH 540-560M
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2278*1134*35mm
-
Name:
-

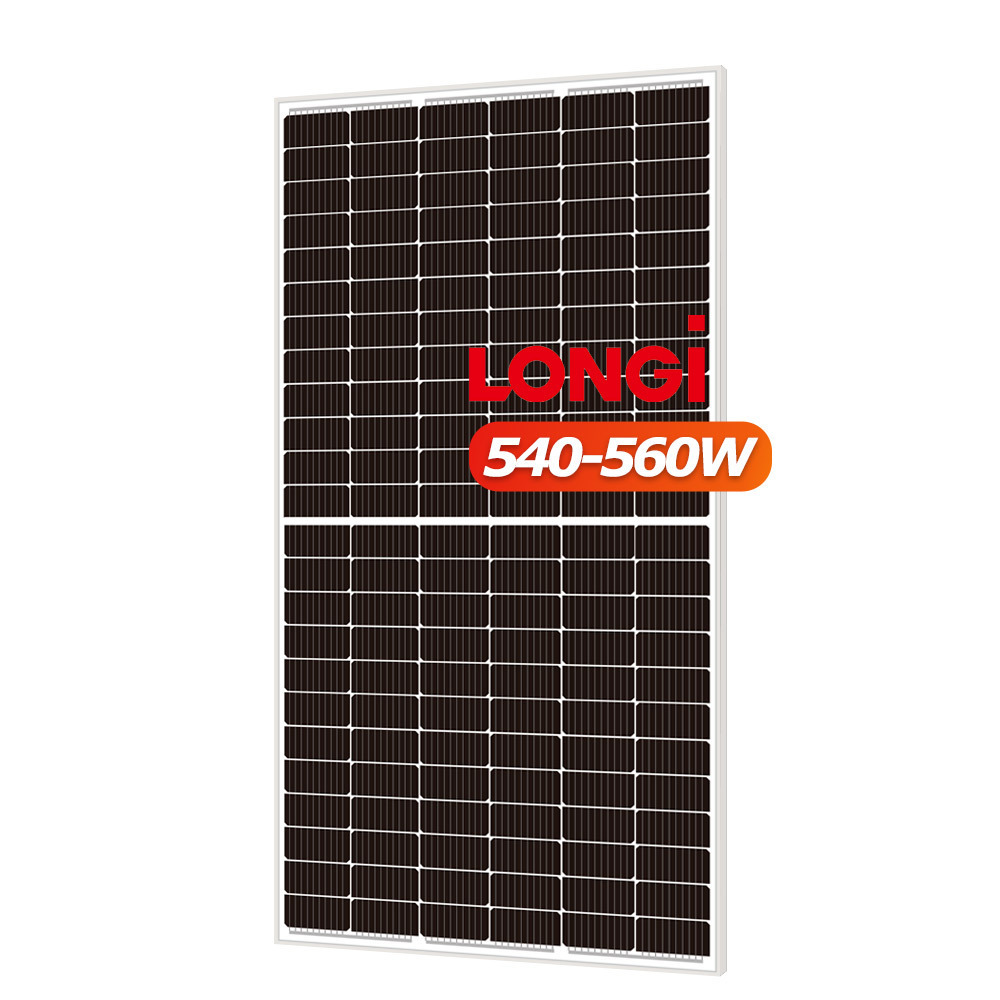

Longi Solar PV Panel 540W 545Wp 550W 555 Watt 560W
-
Solar cell:
-
Half Cut 12BB perc mono solar cell
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Black or Sliver
-
OEM:
-
Acceptable
-
Application:
-
Solar System Solar Street Light
-
Certificate:
-
TUV/IEC61215/IEC61730/CE/PID/ISO, CE
-
Number of Cells:
-
144 (6* 24)
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, BIPV
-
Panel Efficiency:
-
21.7%
-
Warranty:
-
25 years, 25 Years Output Power Guarantee
-
Brand Name:
-
Longi
-
Model Number:
-
LR5-72HPH 540-560M
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2278*1134*35mm
-
Name:
-
Longi Solar PV Panel 540W 545Wp 550W 555 Watt 560W
-
Solar cell:
-
Half Cut 12BB perc mono solar cell
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Black or Sliver
-
OEM:
-
Acceptable
-
Application:
-
Solar System Solar Street Light
-
Certificate:
-
TUV/IEC61215/IEC61730/CE/PID/ISO, CE
-
Number of Cells:
-
144 (6* 24)
Product Description
Production
|
Module
|
LR5-72HPH-540M
|
LR5-72HPH-545M
|
LR5-72HPH-550M
|
LR5-72HPH-555M
|
LR5-72HPH-560M
|
||||
|
Rated Maximum Power(Pmax)[W]
|
540
|
545
|
550
|
555
|
560
|
||||
|
Maximum Power Voltage(Vmp)[V]
|
41.65
|
41.80
|
41.95
|
42.10
|
42.25
|
||||
|
Maximum Power Current(Imp)[A]
|
12.97
|
13.04
|
13.12
|
13.19
|
13.26
|
||||
|
Open Circuit Voltage(Voc) [V]
|
49.50
|
49.65
|
49.80
|
49.90
|
51.10
|
||||
|
Power Tolerance
|
0~+5
|
|
|
|
|
||||
|
emperature Coefficient of Isc((α_Isc))
|
+0.050%/°C
|
|
|
|
|
||||
|
Temperature Coefficient of Voc(β_Voc)
|
-0.265%/°C
|
|
|
|
|
||||
|
Temperature Coefficient of Pmax(γ_Pmp)
|
-0.340%/°C
|
|
|
|
|
||||
Packing & Transport
Packing Method: Customized Wooden&Carton with Pallet(offer 100% protection during transportation)
|
Container(
72
Cells
solar panel)
|
20'GP
|
40'HC
|
|
PCS/Pallet
|
31
|
31
|
|
PCS/Container
|
155
|
620
|
Transport:
Accodring to your products quantity and requirement , we will choose Security and Economical transportation for you .
Including Sea transportation ,Air transportation , Land transportation and Express .
Payment&Warranty
|
Payment Terms
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
|
|
|||
|
|
FOB
|
|
|
|
|||
|
|
CNF
|
|
|
|
|||
|
|
CIF
|
|
|
|
|||
|
|
LC
|
L/C amount above 300,000 usd, we can accept L/C at sight
|
|
|
|||
|
|
West Union
|
Accpetable
|
|
|
|||
|
Delivery Time
|
7~15days after receiving payment for one container
|
|
|
|
|||
