Quick Details
-
Model Number:
-
ZPSM024H
-
Type:
-
Magnetic Proximity Sensor
-
Sensing Range:
-
2.5~3.5mT
-
IP level:
-
IP67
-
Supply Voltage:
-
DC5~24V
-
Detection Poles:
-
ZPSM024 -S: S pole; ZPSM024 -N: N pole
-
Magnetic sensitivity:
-
2.5~3.5mT
-
Magnetic detection direction:
-
Forward
-
Output current:
-
12mA MAX
-
Current consumption:
-
15mA MAX
-
Response time:
-
5μ sec
-
Shell material:
-
Glass fiber reinforced resin: black
-
Indicator light:
-
Red color
-
Protection class:
-
IP67
Quick Details
-
Voltage:
-
DC5~24V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Makinopc
-
Model Number:
-
ZPSM024H
-
Type:
-
Magnetic Proximity Sensor
-
Sensing Range:
-
2.5~3.5mT
-
IP level:
-
IP67
-
Supply Voltage:
-
DC5~24V
-
Detection Poles:
-
ZPSM024 -S: S pole; ZPSM024 -N: N pole
-
Magnetic sensitivity:
-
2.5~3.5mT
-
Magnetic detection direction:
-
Forward
-
Output current:
-
12mA MAX
-
Current consumption:
-
15mA MAX
-
Response time:
-
5μ sec
-
Shell material:
-
Glass fiber reinforced resin: black
-
Indicator light:
-
Red color
-
Protection class:
-
IP67
Products Description
Magnetic proximity sensors use for non-contact position detection beyond the normal limits of inductive sensors. In conjunction with a separate “damping” magnet, magnetic sensors offer very long sensing ranges from a small package size and can detect magnets through walls of non-ferrous metal, stainless steel, aluminum, plastic or wood.
Key Features
●Magnetic proximity sensors are sensors that operate ON and OFF according to changes in the strength of the magnetic field.
●The operating principle is the Hall principle, which detects the magnetic field according to its polarity, and the standard detection pole is the S pole.
●Because of the short response time (5μsec or less), it can also be used for tachometers and speedometers.
●Compared with general proximity sensors, it is characterized by high sensitivity, large detection distance, and small size.
●Can perform both home position and over-travel detection of servo mechanisms with only one dual sensor.
●Strong resistance to electromagnetic interference and high reliability.
Product Paramenters
|
Supply Voltage
|
DC5～24V
|
|
Detection Poles
|
ZPSM024H-S: S pole
|
|
|
ZPSM024H-N: N pole
|
|
Magnetic sensitivity
|
ZPSM024H-S：0.8±0.2mT
|
|
|
ZPSM024H-N: 0.9±0.2mT
|
|
Magnetic detection direction
|
Forward
|
|
Output mode
|
NPN normally open (ON when close)
|
|
Output current
|
12mA MAX
|
|
Current consumption
|
15mA MAX
|
|
Response time
|
5μ sec
|
|
Withstanding Voltage
|
AC1000V
|
|
|
(1 minute, between the whole charging part and the case)
|
|
Insulation resistance
|
DC250V
|
|
|
(20MΩ or more, between the whole charging part and the case)
|
|
Operating Ambient Temperature
|
-20℃～+85℃ (no condensation)
|
|
Humidity
|
20～95%RH
|
|
Wire Specification
|
φ2.8×1m
|
|
|
S pole: Gray
|
|
|
N pole: black
|
|
Shell material
|
SUS303
|
|
Installation
|
M9 nut Tightening torque 5N-m
|
|
Mounting aperture processing size
|
φ9 +0.5 / 0
|
|
Indicator light
|
Red color
|
|
Protection Class
|
IP67
|
※Output conversion and current increase can be realized by wire attachment.

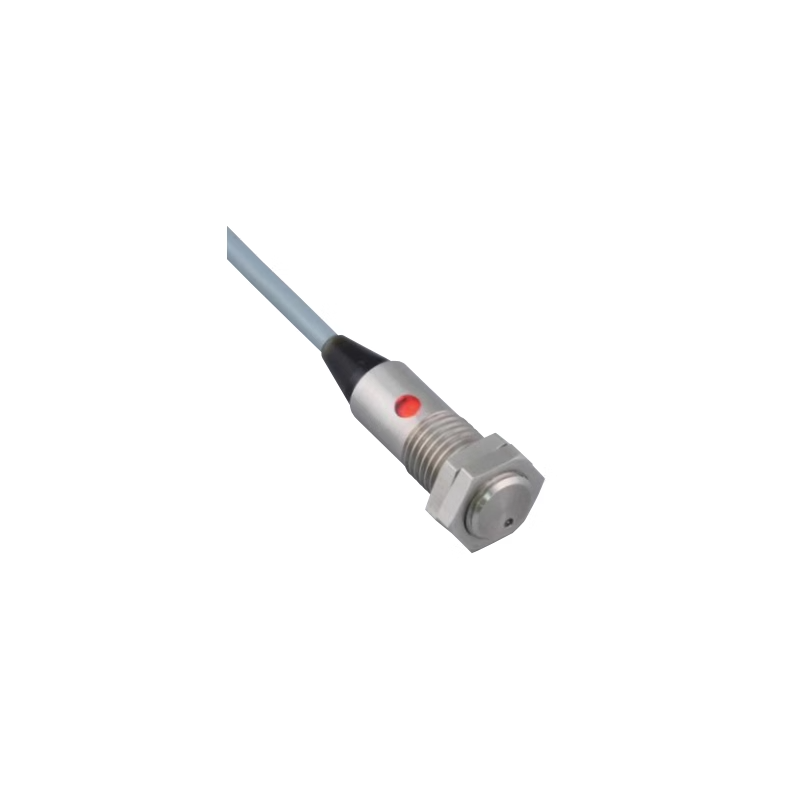

Details Images
※Output conversion and current increase can be realized by wire attachment.
Product packaging
We usually use foam board with 3 cm thick to fill in all around the box inside to protect parts. We often use carton to pack the parts, but if it's too heavy, we'll use custom-wooden box to pack it.
Package : carton or wooden box
Lead time : 1-2 days
All products can be shipped around the world via DHL, UPS, FedEx, TNT and more. The package is safe and green. If you have any special needs, please let me know.
