Quick Details
-
Place of Origin:
-
Guangdong, China
-
Volume:
-
3 L ~ 32 L
-
Max temperature:
-
1800 ℃
-
Working temperature:
-
1700 ℃
-
Temperature control:
-
30 segments programmable and PID auto control
-
Heating elements:
-
1900 degree silicon molybdenum rod
-
Thermocouple:
-
B type
-
Heating rate:
-
0~20℃/min
-
Temperature accuracy:
-
±1℃
-
Use:
-
high temperature muffle furnace
Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
JVLAB
-
Model Number:
-
JV-M1800 Series
-
Place of Origin:
-
Guangdong, China
-
Volume:
-
3 L ~ 32 L
-
Max temperature:
-
1800 ℃
-
Working temperature:
-
1700 ℃
-
Temperature control:
-
30 segments programmable and PID auto control
-
Heating elements:
-
1900 degree silicon molybdenum rod
-
Thermocouple:
-
B type
-
Heating rate:
-
0~20℃/min
-
Temperature accuracy:
-
±1℃
-
Use:
-
high temperature muffle furnace
Product Overview

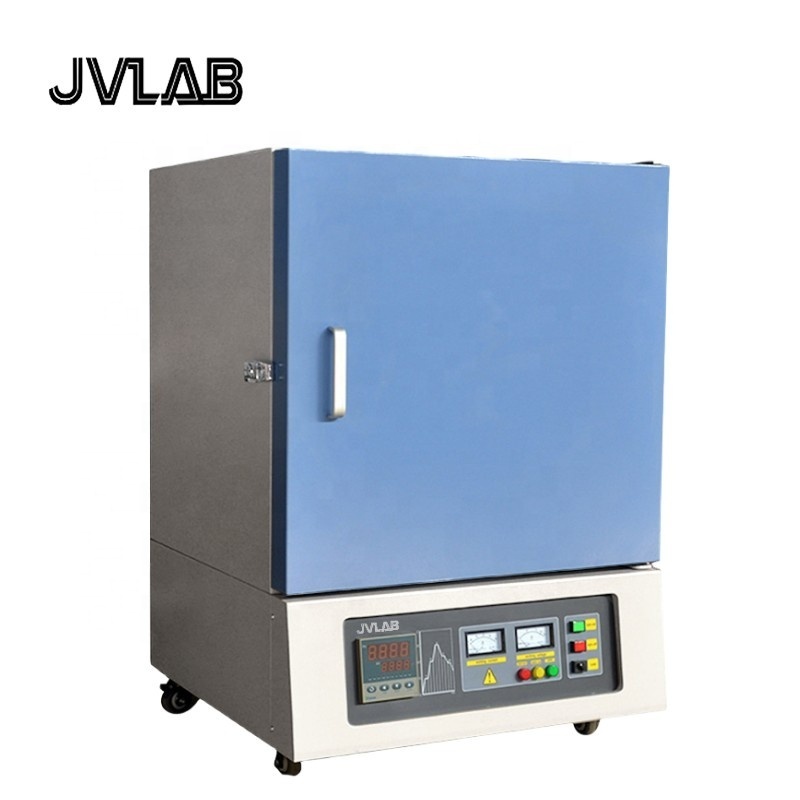

JV-M1800 Series
Box Furnace
The JV-M1800 series laboratory high-temperature sintering furnace uses high-quality silicon rods or graphite, molybdenum strips for heating, and the temperature can reach 1800 degrees. It has good performance design and integrates multiple technologies, with good temperature uniformity, safety, reliability, and practicality.
Features
1. Control accuracy: plus or minus 1 ℃, furnace temperature uniformity: plus or minus 1 ℃ (depending on the size of the heating chamber).
2. Easy to operate, programmable, PID self tuning, automatic heating, automatic insulation, automatic cooling, no need to be on duty; It can be additionally equipped with computer communication to operate the electric furnace through computer (starting the furnace, stopping the furnace, pausing heating, setting the heating curve, storing the heating curve, historical curve, etc.).
3. Fast heating rate (adjustable from 1 ℃/h to 40 ℃/min).
4. Energy saving (the furnace is made of imported fibers, which is resistant to high temperatures, rapid heating, and cooling).
5. The furnace body is exquisitely sprayed with plastic to resist corrosion, acid, and alkali. The furnace body is isolated from the furnace by air cooling, and the temperature of the furnace wall is close to room temperature.
6. Dual circuit protection (over temperature, over pressure, over current, section couple, power outage, etc.)
7. The furnace material is imported refractory material, with good insulation performance, high temperature resistance, resistance to rapid cooling and heating, no cracks, no slag falling, and good insulation performance (energy-saving is more than 60% of the old electric furnace).
8. Door opening method: side opening, translation, up and down lifting, pull-down, top opening, bottom opening, top opening, etc., with lock.
9. Adopting vertical overtemperature protection, overvoltage, overcurrent, leakage, short circuit protection, etc., with a high degree of automation.
10. Equipped with a fully isolated silent copper wire transformer, it has low noise, low heating capacity, and high safety factor.
Product Paramenters
Model: JV-M3-1800 Series
Application: Sintering Cemented Tungsten Carbide
Max temperature: 1800℃
Working temperature: 1700℃
Temperature control: 30 segments programmable and PID auto control
Heating elements: 1900 degree silicon molybdenum rod
Thermocouple: B type, directly behind temperature measurement
Heating rate: 0~20℃/min
Temperature accuracy: ±1℃
Temperature control protection: With ultra mild couple breaking protection function
Power supply: single-phase AC220V/50Hz (can OEM)
Power: 5KW
Furnace shell temperature: ≤45℃
Furnace size： 400*200*200 mm (OEM)
Net weight: About 140 kg
PRODUCT SPECIFICATIONS
|
Model
|
Temp. Range
|
Interior Size
(D*W*H)
|
Capacity
(L)
|
Power
(KW)
|
Power Supply
|
|
JV-M3-1800
|
1800°C
|
120×200×120 mm
|
3 L
|
3 KW
|
220V
|
|
JV-M4-1800
|
|
150×200×120 mm
|
4 L
|
4 KW
|
220V
|
|
JV-M5-1800
|
|
150×200×150 mm
|
5 L
|
6 KW
|
220V
|
|
JV-M7-1800
|
|
300×150×150 mm
|
7 L
|
10 KW
|
380V
|
|
JV-M12-1800
|
|
300×200×200mm
|
12 L
|
14 KW
|
380V
|
|
JV-M16-1800
|
|
400×200×200mm
|
16 L
|
16 KW
|
380V
|
|
JV-M32-1800
|
|
500×250×250mm
|
32 L
|
20 KW
|
380V
|
