- Product Details
- {{item.text}}
Quick Details
-
Wheel:
-
Four-wheel
-
Dimension (L x W x H):
-
customization
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZHONGXIANG
-
Model Number:
-
SJY
-
Product Name:
-
1M 2M Hand Double Manual Hydraulic Lifting Table Trolley
-
key words:
-
hydraulic car lift
-
Application:
-
Auto Parking
-
Mode of drive:
-
hydraulic drive
-
Drive mode:
-
Hydraulic
-
Operation Mode:
-
Automatic
-
Power supply:
-
220V / 380V / Customized
-
Warranty period:
-
1 year
Quick Details
-
Color:
-
customization
-
Usage:
-
Industrial, Other
-
Material:
-
Chrome Plated
-
Wheel:
-
Four-wheel
-
Dimension (L x W x H):
-
customization
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZHONGXIANG
-
Model Number:
-
SJY
-
Product Name:
-
1M 2M Hand Double Manual Hydraulic Lifting Table Trolley
-
key words:
-
hydraulic car lift
-
Application:
-
Auto Parking
-
Mode of drive:
-
hydraulic drive
-
Drive mode:
-
Hydraulic
-
Operation Mode:
-
Automatic
-
Power supply:
-
220V / 380V / Customized
-
Warranty period:
-
1 year

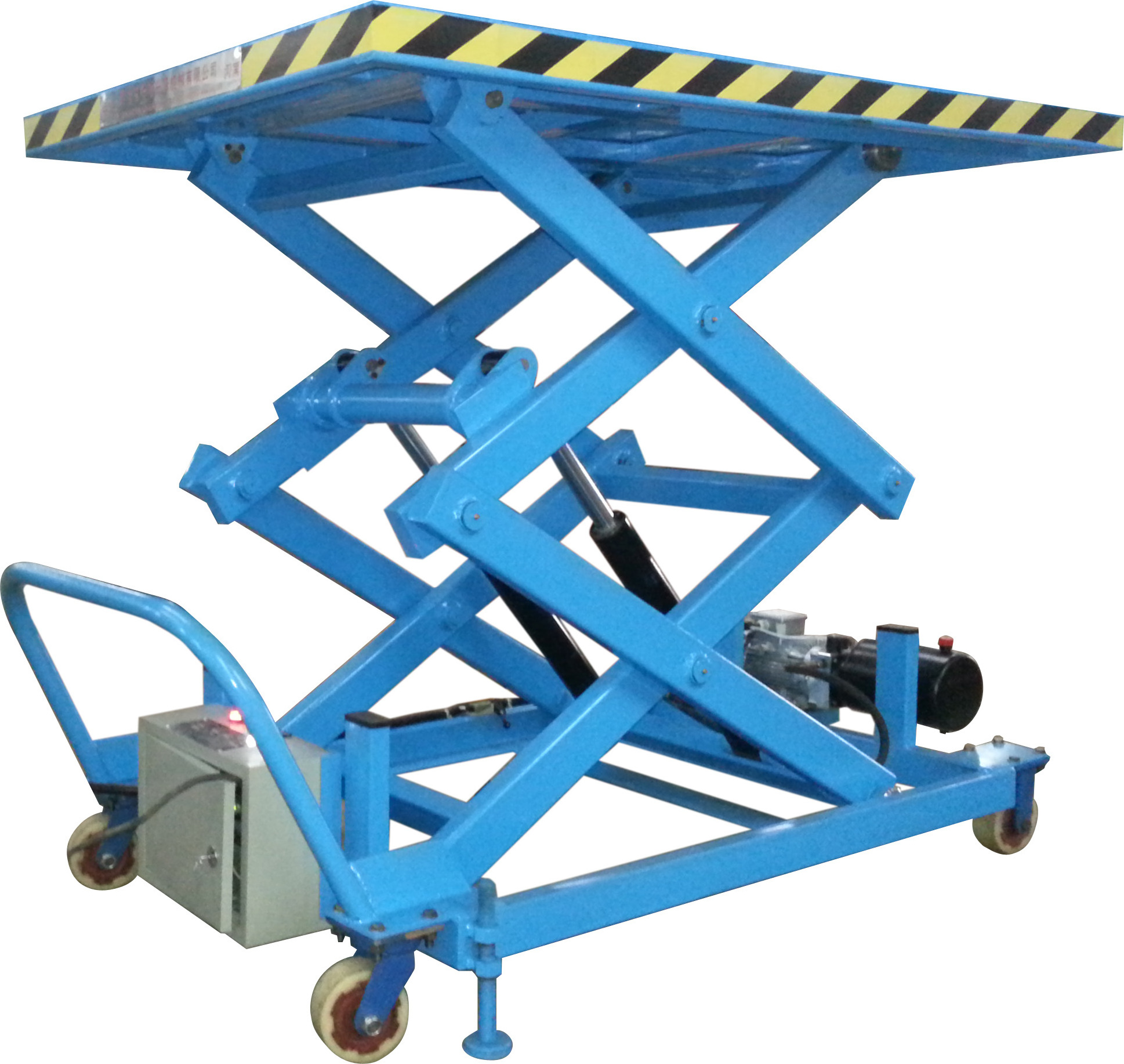

1M 2M Hand Double Manual Hydraulic
Lifting Table Trolley
The product is a kind of cargo lifting equipment with good lifting stability , large carrying capacity and wide application range . And it can also add translation, side, flip and other functions .
1M 2M Hand Double Manual Hydraulic Lifting Table Trolley 1M 2M Hand Double Manual Hydraulic Lifting Table Trolley1M 2M Hand Double Manual Hydraulic Lifting Table Trolley 1M 2M Hand Double Manual Hydraulic Lifting Table Trolley
| model | rated loading(kg) | min height(mm) | max height(mm) | table size(mm)L*W | votage(V) | power(Kw) |
|
single shear lift platform |
||||||
|
SJY0.3-0.8 |
300 | 200 | 800 | 1200*700 | 380 | 1.5 |
| SJY0.5-1.0 | 500 | 220 | 1020 | 1300*800 | 380 | 2.2 |
| SJY1.0-1.2 | 1000 | 220 | 1220 | 1800*1000 | 380 | 3 |
| SJY2.0-2.0 | 2000 | 350 | 1550 | 2000*1200 | 380 | 5.5 |
| double shear lift platform | ||||||
| SJY0.3-1.5 | 300 | 350 | 1550 | 1200*1000 | 380 | 1.1 |
| SJY0.5-2.1 | 500 | 400 | 2100 | 1500*1000 | 380 | 1.5 |
| SJY1.0-2.2 | 1000 | 600 | 2200 | 1800*1200 | 380 | 2.2 |
| SJY2.0-2.2 | 2000 | 650 | 2200 | 1800*1000 | 380 | 4 |
1.The basic frame is made of rectangular square steel-field platform frame with anti-skid plate . the plate or stainless steel plate can effectively reduces the deformation of the table.
2.The materials of The support arm frame are made of high strength 16Mn steel rectangular tube or standard channel composite plate.
3. All sliding bearings are self-lubricated bearings with new composite materials,simple maintenance ang long service life.
4.The hydraulic system of main oil cylinder is equippevalved with anti-crack which automatically locks the oil cylinder when the thbing is broken.
5.The hydraulic system has a power failure emergency manual descending device .
The hydraulic lifting platform can be equipped with other additional devices according to the requirements of use, and can be combined in any number of combinations to achieve better use effect.
Click on the picture to see more details
Our main products include lifting platforms, solid garages, industrial ceiling fans, hydraulic ramps, turning machines, road piles, roadblocks and other products. We can customize the product according to the customer's requirements.
