Product Overview

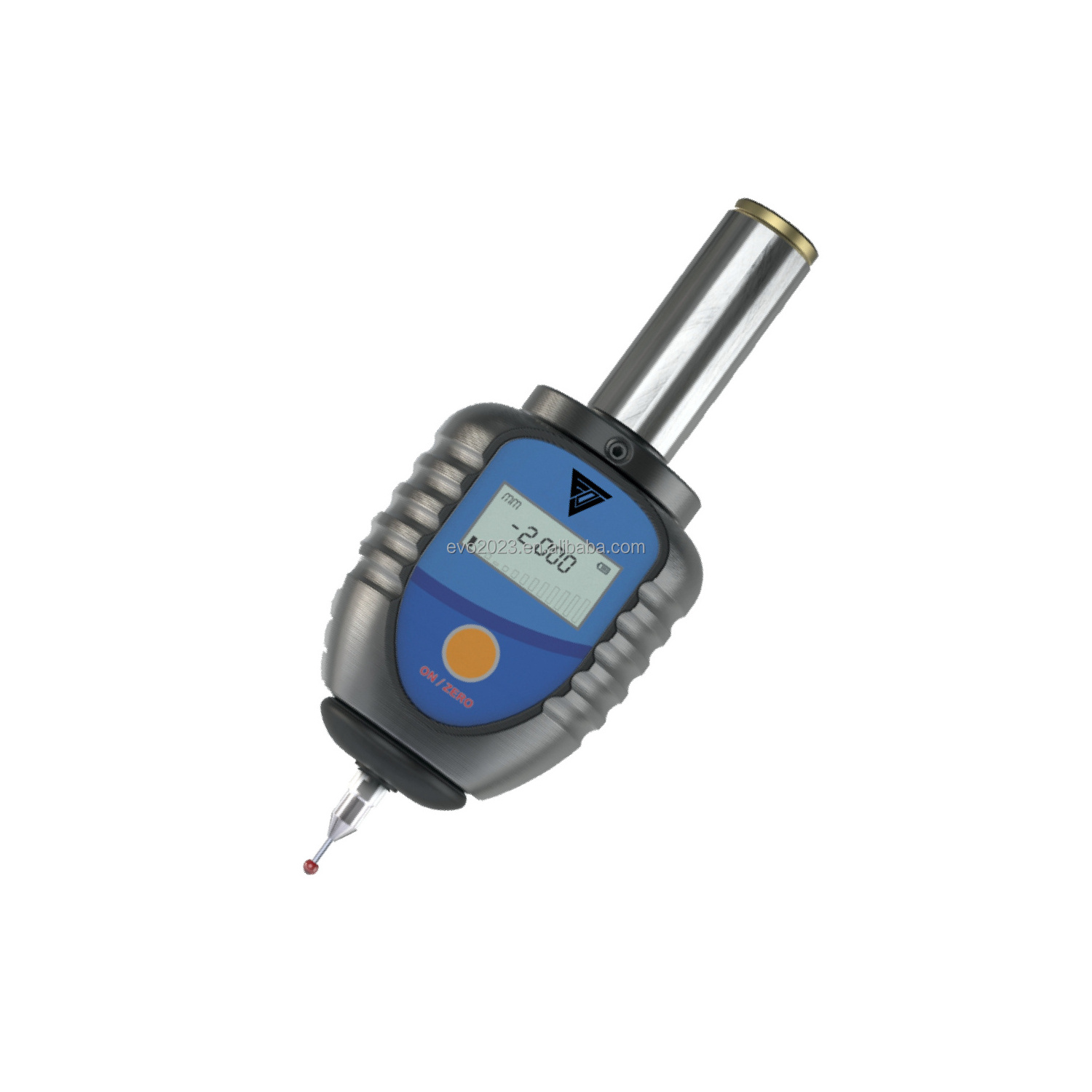

EMP-DIGITAL
Manual edge finder
The EMP-Digital is a further development of the time proven mechanical 3D-Sensor. It serves for approaching workpiece edges on
milling machines. The spindle may be positioned quickly and safely on the references edge. The approaching operation can be
exactly monitored on the digital display. The zero points can be set without any calculations because the spindle axis is
positioned exactly on the approached edge.
milling machines. The spindle may be positioned quickly and safely on the references edge. The approaching operation can be
exactly monitored on the digital display. The zero points can be set without any calculations because the spindle axis is
positioned exactly on the approached edge.
The digital display has large numbers that measure in increments of 0.001 mm. It can be easily read from a long distance (i.e. when mounted on a large machining center). The digital display is water- and dust-proofed according to IP 64 and can be stored in the tool magazine of the machine.
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
|
|
1
|
Principal application
|
measuring instrument for milling and EDM machines (insulated probe).
|
|
|
|
2
|
Gripper shank diameter
|
20mm
|
|
|
|
3
|
Weight
|
200g
|
|
|
|
4
|
Recommended styli
|
Ceramic, lengths 25 mm to 100 mm
|
|
|
|
5
|
Switch-on method/switch-off methods
|
Trigger open, no trigger close
|
|
|
|
6
|
Sense directions
|
±X, ±Y, +Z
|
|
|
|
7
|
Unidirectional repeatability
|
1.00 μm 2σ
|
|
|
|
8
|
Contact life time
|
8 million
|
|
|
|
9
|
Stylus trigger force
XY low force
XY high force Z force |
0.85 N
5.75 N |
|
|
|
10
|
Stylus overtravel
|
XY plane ±12.5°
+Z plane 6.2mm |
|
|
|
11
|
Environment
|
IP rating
|
IP64
|
|
|
|
|
Storage temperature
|
25 °C to +70 °C (−13 °F to +158 °F)
|
|
|
|
|
Operating temperature
|
+5 °C to +55 °C (+41 °F to +131 °F)
|
|
Manufacturing
