Quick Details
-
Warranty:
-
3 years
-
Brand Name:
-
JINXYSOLAR
-
Model Number:
-
JXY-E80S
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
830*535*2.8MM
-
Solar cell:
-
Sunpower Maxeon Gen III
-
Max. Power:
-
80W
-
Vmp:
-
20.0V
-
Imp:
-
4.00A
-
Voc:
-
24.0V
-
Isc:
-
4.30A
-
Maximum System Voltage:
-
600V
-
Weight:
-
1.55KG
-
Application:
-
RV Yacht Campervan Home Solar System
-
OEM Order:
-
Customer's LOGO and Label Print
Quick Details
-
Cell size:
-
125mmx41.67mm
-
Type:
-
Flexible
-
Panel Efficiency:
-
23%
-
Warranty:
-
3 years
-
Brand Name:
-
JINXYSOLAR
-
Model Number:
-
JXY-E80S
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
830*535*2.8MM
-
Solar cell:
-
Sunpower Maxeon Gen III
-
Max. Power:
-
80W
-
Vmp:
-
20.0V
-
Imp:
-
4.00A
-
Voc:
-
24.0V
-
Isc:
-
4.30A
-
Maximum System Voltage:
-
600V
-
Weight:
-
1.55KG
-
Application:
-
RV Yacht Campervan Home Solar System
-
OEM Order:
-
Customer's LOGO and Label Print

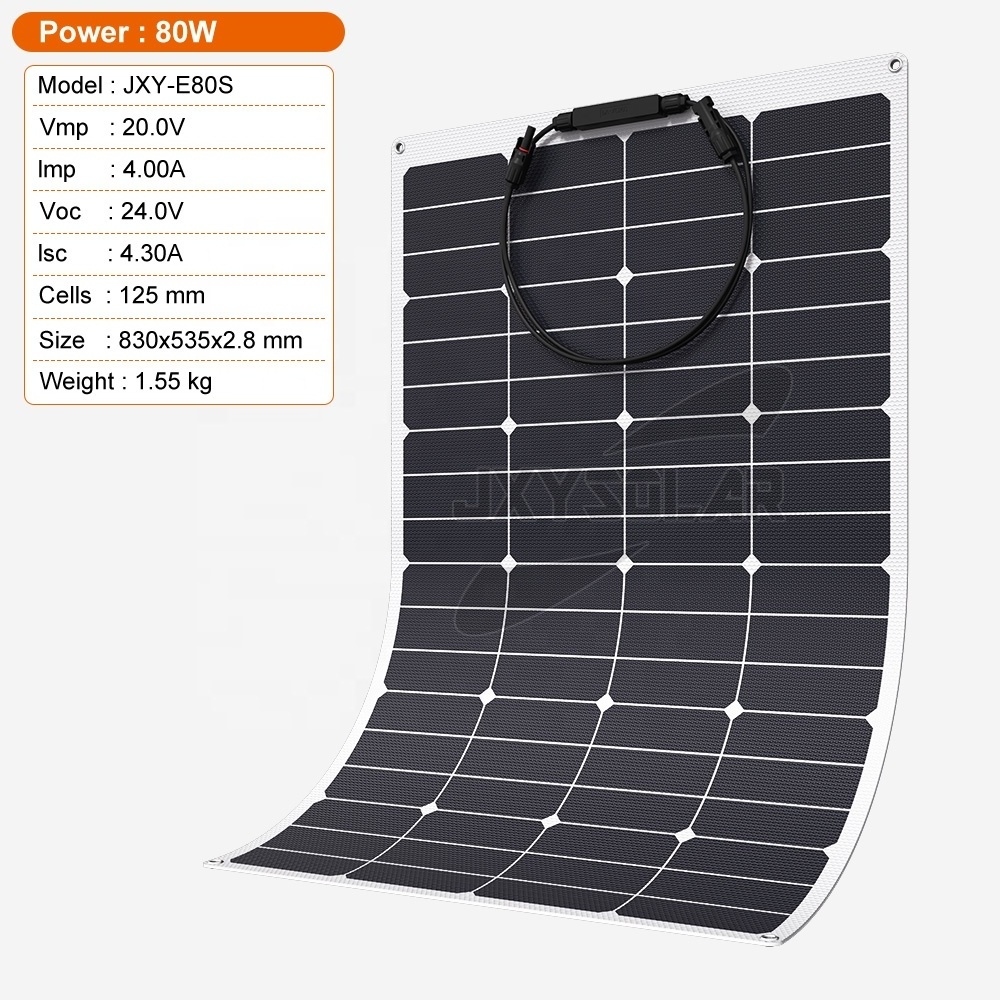

80 Watt 20 Volt Flexible Solar Panel Kit Resistant to Salt Spray for Car Truck Boat RV Motorcycle Marine Tractor Battery
Product Description
| ELECTRICAL CHARACTERISTICS | |
| Model | JXY-E80S |
| Maximum Power (Pmax) | 80W |
| Maximum Power Voltage (Vmp) | 20.0V |
| Open-circuit Voltage (Voc) | 24.0V |
| Maximum Power Current (Imp) | 4.00A |
| Short-circuit Current (Isc) | 4.30A |
| Cells Efficiency (%) | >23% |
| Operating Temperature | -40℃~85℃ |
| Maximum System Voltage | 600V DC (IEC) |
| Maximum Series Fuse Rating | 20A |
| Nominal Module Operating Temperature(NOMT) | 41±2℃ |
| Temperature Coefficient of Pmax | -0.35%/℃ |
| Temperature Coefficient of Voc | -0.27%/℃ |
| Temperature Coefficient of Isc | +0.048%/℃ |
|
STC: Irradiance 1000W/m2 , Cell temperature 25C, AM=1.5.
Tolerances of Pmax , Voc and lsc are within ±5% |
|
| MECHANICAL CHARACTERISTICS | |
| Solar Cell | SunPower Maxeon Gen III Solar Cells (125mm*41.67mm) |
| Number of Cells | 72(4*18) |
| Module Dimensions | 830x535x2.8 mm |
| Weight | 1.55kg |
| Backsheet | Black/White/Transparent |
| Frame | Frameless |
| Junction Box | IP 67 rated |
| Output Cables | 0.9M, 2.5mm² Photovoltaic cable |
| Connector | MC4 compatible |
