Quick Details
-
Brand Name:
-
Hengsen
-
Product name:
-

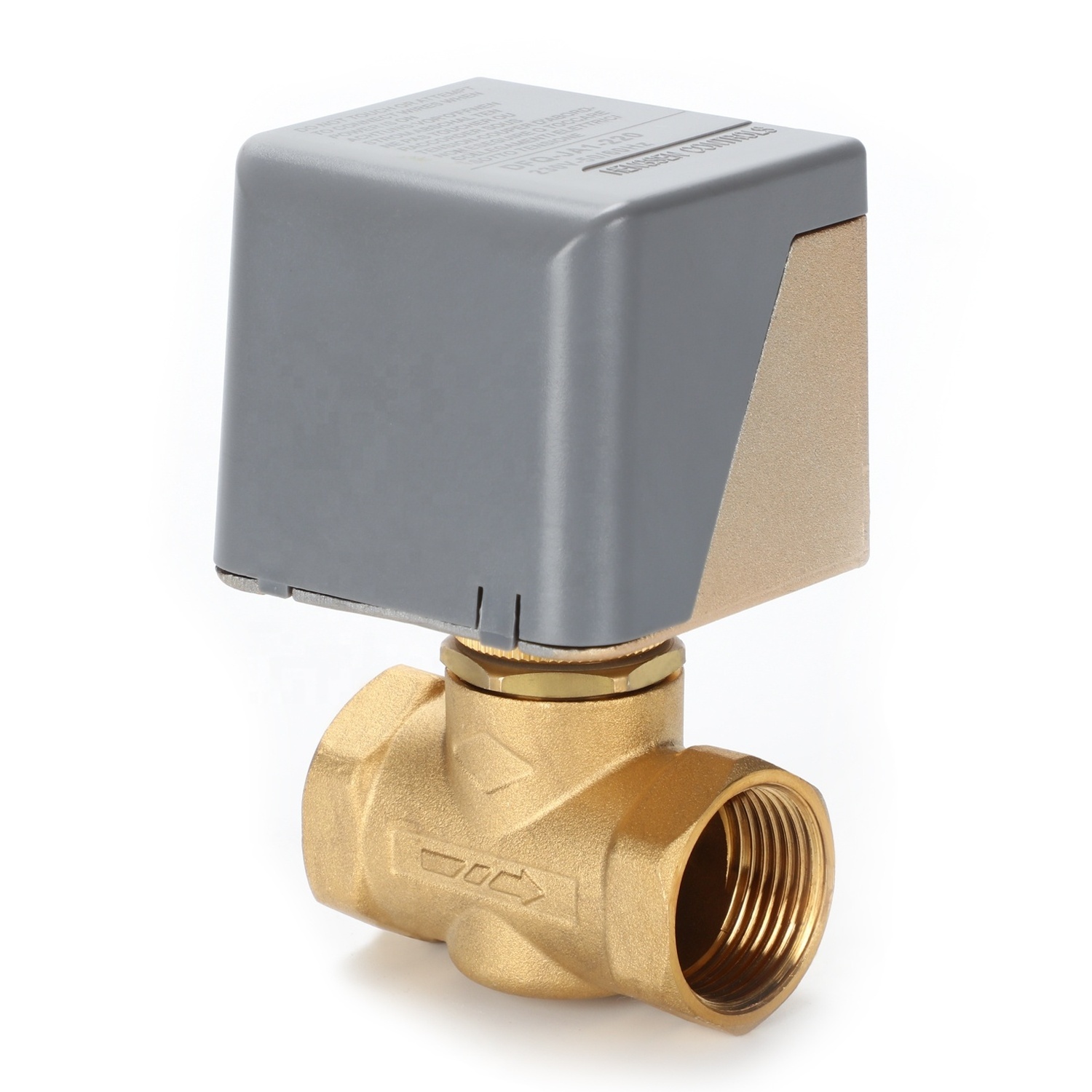

Brass Electric Valve
-
Valve body material:
-
Forging brass
-
Stem material:
-
Brass
-
Sealing material:
-
Chemigum(NBR)
-
Working medium:
-
Cold/Hot water
-
Fluid temperature:
-
5~95℃
-
Pressure-bearing:
-
1.6MPa
-
Travel time:
-
11~15 Second
-
Motor torque:
-
>800Gf.cm
-
Environment temperature:
-
0~65℃ Maximum relative humidity is Non-condensation
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
DDF-G
-
Brand Name:
-
Hengsen
-
Product name:
-
Brass Electric Valve
-
Valve body material:
-
Forging brass
-
Stem material:
-
Brass
-
Sealing material:
-
Chemigum(NBR)
-
Working medium:
-
Cold/Hot water
-
Fluid temperature:
-
5~95℃
-
Pressure-bearing:
-
1.6MPa
-
Travel time:
-
11~15 Second
-
Motor torque:
-
>800Gf.cm
-
Environment temperature:
-
0~65℃ Maximum relative humidity is Non-condensation
Product Description
|
Code definition
|
Optional range definition
|
|
Motorized valve body series
|
DDF
|
|
Valve body code
|
G=high pressure motorized valve
|
|
Valve type
|
2=2-way valve,3=3-way valve
|
|
DN
|
15=DN15，20=DN20，25=DN25
|
|
Motorized valve actuator series
|
DFQ
|
|
Actuator code
|
JA1=2-wire,JA2=5-wire,JA3=2-wire aluminum alloy shell, JAL1=2-wire economic type
|
|
Input power
|
220=220VAC，110=110VAC，24AC=24VAC
|
Size Description
|
Order No.
|
Model No.
|
Valve
Type |
DN
|
Thread Size
|
Kvs
|
Maximum differential pressure
kPa
|
Dimensions
|
|
|
||
|
|
|
|
|
|
|
|
L
|
W
|
H
|
||
|
12060
|
DDF-G-215*DFQ-JA1-220
|
2-way
|
15
|
G1/2
|
1.5
|
250
|
52
|
14
|
44.5
|
||
|
12061
|
DDF-G-220*DFQ-JA1-220
|
2-way
|
20
|
G3/4
|
2.1
|
250
|
64
|
17.5
|
44.5
|
||
|
12662
|
DDF-G-220A*DFQ-JA1-220
|
2-way
|
20
|
G3/4
|
2.3
|
250
|
55
|
17.5
|
44.5
|
||
|
12663
|
DDF-G-220B*DFQ-JA1-220
|
2-way
|
20
|
G3/4
|
2.3
|
250
|
51
|
17.5
|
44.5
|
||
|
12063
|
DDF-G-225*DFQ-JA1-220
|
2-way
|
25
|
G1
|
2.3
|
100
|
71
|
20
|
44.5
|
||
|
12064
|
DDF-G-315*DFQ-JA1-220
|
3-way
|
15
|
G1/2
|
1
|
250
|
55
|
30
|
40
|
||
|
12065
|
DDF-G-320*DFQ-JA1-220
|
3-way
|
20
|
G3/4
|
2.3
|
250
|
64
|
35
|
5
|
||
|
12066
|
DDF-G-325*DFQ-JA1-220
|
3-way
|
25
|
G1
|
3.6
|
100
|
66
|
35
|
5
|
||
