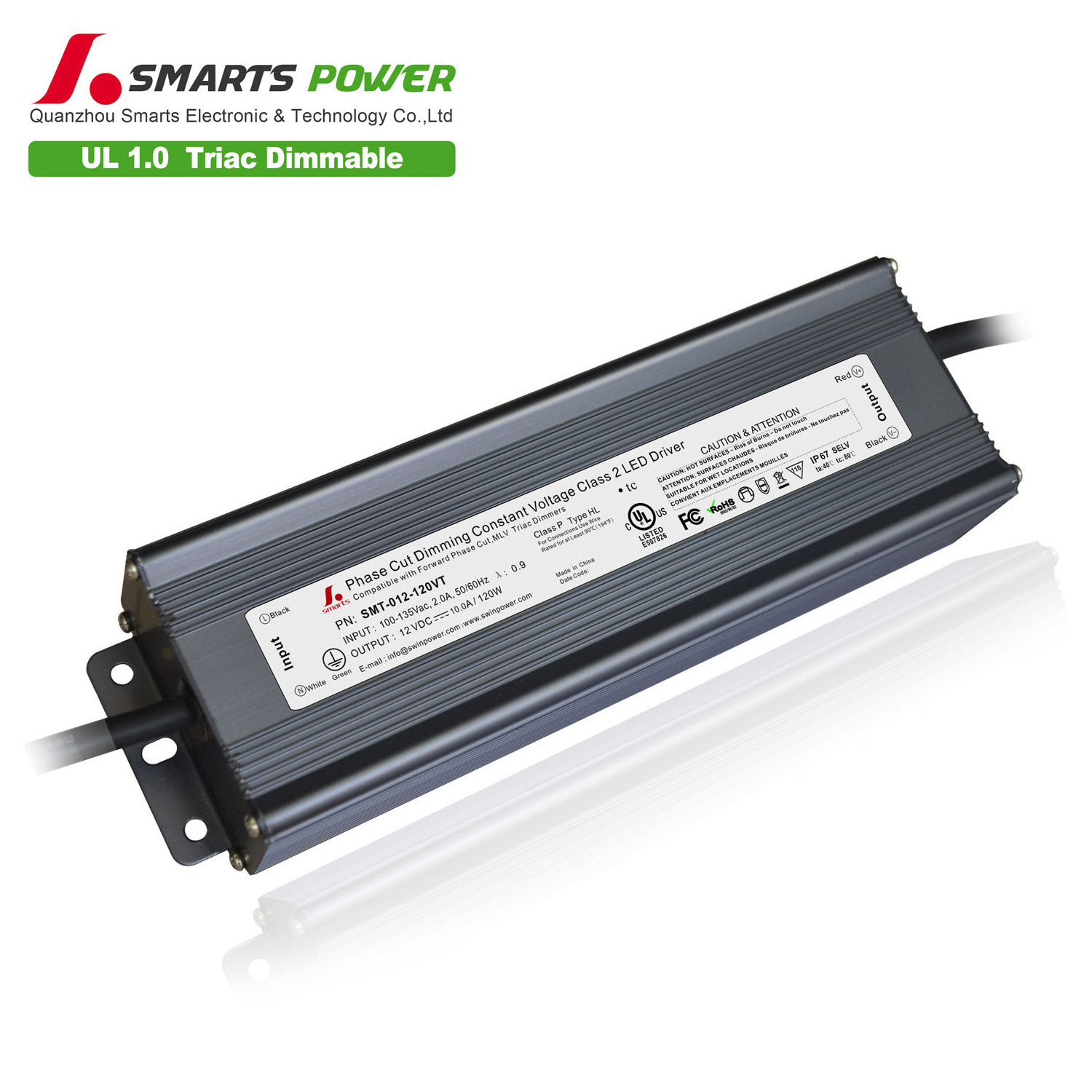

intertek 110v/220v 12v 24v dc led transformer 120w triac constant voltage dimmable led driver

intertek 110v/220v 12v 24v dc led transformer 120w triac constant voltage dimmable led driver

FOB Reference Price: Get Latest Price

≥2 Pieces

US $30

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: SMT-012-120VT

Output Frequency:: 47-63Hz

outer case:: Aluminum housing

waterproof rate:: IP67

PF:: > 0.7

working mode:: constant voltage type

efficiency:: > 84%

size:: 230*70*46mm

warranty:: 5 years warranty

certificate:: CE, ETL/cETL,FCC approval

product:: 120w 36v dc triac dimmable led transformer

Quick Details

Warranty(Year):: 5-Year

Place of Origin:: Fujian, China

Brand Name:: SMARTS

Model Number:: SMT-012-120VT

Output Frequency:: 47-63Hz

outer case:: Aluminum housing

waterproof rate:: IP67

PF:: > 0.7

working mode:: constant voltage type

efficiency:: > 84%

size:: 230*70*46mm

warranty:: 5 years warranty

certificate:: CE, ETL/cETL,FCC approval

product:: 120w 36v dc triac dimmable led transformer

intertek 110v/220v 12v 24v dc led transformer 120w triac constant voltage dimmable led driver

Product Description

Features
·Output constant voltage

·Input voltage range 100-130VAC/170-265VAC

·Built-in PFC function, PF> 0.7

·Efficiency > 84%

·Protections:short circuit/over voltage/over heat

·IP67 design for indoor or outdoor installations

·Cooling by free air convection

·Work with leading edge and trailing edge TRIAC dimmers

·Strong compatibility, flicker-free dimming

·Suitable for LED lighting and moving sign applications

·Compliance to worldwide safety regulations for lightings.

·5 years warranty

Specification

Model		SMT-012-120VT	SMT-024-120VT		SMT-036-120VT
Output	DC Voltage	12V	24V		36V
	Voltage Accuracy	±0.5V	±0.5V		±0.5V
	Rated current	10.00A	5.00A		3.33A
	Rated power	120W
Input	Voltage Range	100~130V AC/170~265V AC
	Frequency Range	47~63HZ
	Power Factor ( Typ.)	PF ≥ 0.70/110V,PF ≥ 0.70/170V,PF ≥ 0.70/220V,PF ≥ 0.70/265V
	Full Load Efficiency(Typ.)	>84%		>84%	>84%
	AC Current(Typ.)	1.86A/110VAC 1.20A/170VAC 0.93A/220VAC 0.77A/265VAC
	Leakage current	< 0.27mA/110V/220VAC
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed.
	Over voltage	≤ 140VAC(100~130V) , ≤ 270VAC(170~265V)
Environment	Working TEMP.	-40~+60℃
	Working Humidity	20~90%RH,non-condensing
	Storage TEM.,Humidity	-40~+80℃,10~95%RH
	TEMP.coefficient	±0.03%/℃(0~50℃)
	Vibration	10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC	Safety standards	EN-60950-1, EN61347-1 EN61347-2-13
	Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
	Isolation resistance	I/P-O/P:100MΩ/500VDC/25℃/70%RH
	EMC EMISSION	Compliance toEN55015,EN61000-3-2 ( ≥ 50%load)
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level (surge4KV)
Others	Weight	1.3Kg
	Size	2307046mm(LWH)
	packing	329279176mm , 10PCS/ctn
Notes	1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation .

Mechanical Specification

Dimming Operation

Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection atriac dimmer.
Compatible with Leading edge or tailing edge triac dimmers.
please try to use the small power dimmers, which have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero

Derating Curve
