Quick Details
-
Brand Name:
-
CNTD
-
Model Number:
-
CM-1308
-
Max. Current:
-
15A
-
Operating Temperature:
-
-10~+80C
-
Protection Level:
-
No
-
Material:
-
Bakelite/Plastic
-
Contact Form:
-
1NO1 NC
-
Terminal:
-
Iron screw
-
Operation speed:
-
0.5mm-50cm/sec
-
Operation frequency:
-
Mechanical: 120times/min; Electrical: 30times/min
-
Ambient temperature:
-
-10℃ to +80℃
-
Humidity:
-
<95% RH
-
Degree of protection:
-
IP40
-
Certificate:
-
TUV, ISO9001, CCC, CE
-
Certification:
-
CCC, CE,
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNTD
-
Model Number:
-
CM-1308
-
Max. Current:
-
15A
-
Operating Temperature:
-
-10~+80C
-
Protection Level:
-
No
-
Material:
-
Bakelite/Plastic
-
Contact Form:
-
1NO1 NC
-
Terminal:
-
Iron screw
-
Operation speed:
-
0.5mm-50cm/sec
-
Operation frequency:
-
Mechanical: 120times/min; Electrical: 30times/min
-
Ambient temperature:
-
-10℃ to +80℃
-
Humidity:
-
<95% RH
-
Degree of protection:
-
IP40
-
Certificate:
-
TUV, ISO9001, CCC, CE
-
Certification:
-
CCC, CE,
Features
* Various of actuators, the operation position is adjustable (such as CZ-7121)
* Outer shell covered with intensive plastic, the mechanical strength is better than CM series micro switch, bear hitting.
* Small volume, water-proof and oil-proof construction
* Easy-to-wire circuit opening design
* Wide variety of actuators, easily use
* Outer shell covered with intensive plastic, the mechanical strength is better than CM series micro switch, bear hitting.
* Small volume, water-proof and oil-proof construction
* Easy-to-wire circuit opening design
* Wide variety of actuators, easily use
Product characteristics
|

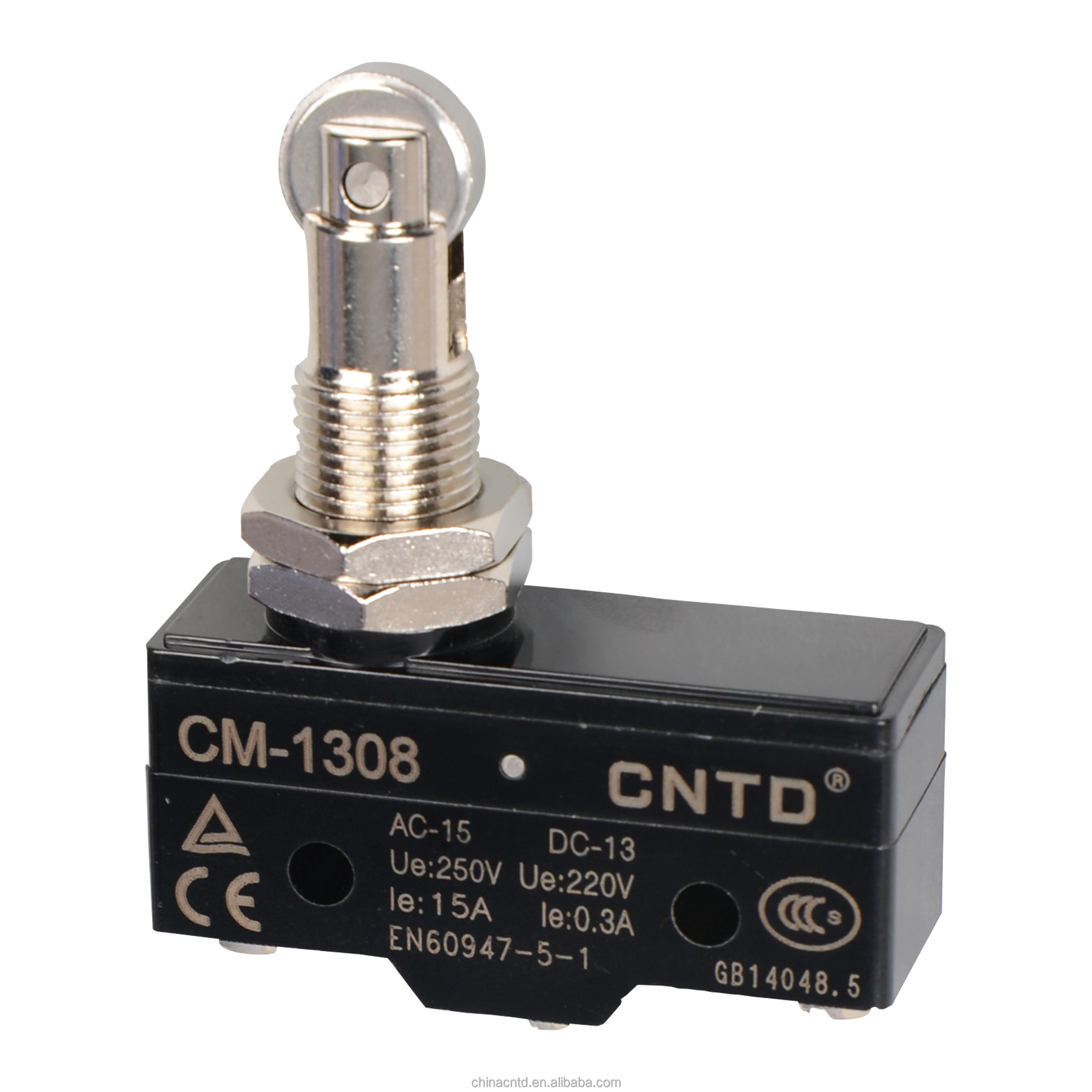

Model No.
|
CM-1308
|
|
|
|
|||
|
Name
|
Micro switch
|
|
|
|
|||
|
Operation speed
|
0.01mm-1m/sec
|
|
|
|
|||
|
Operating frequency
|
Mechanical: 240times/minute, Electrical: 20 times/minute
|
|
|
|
|||
|
Contact resistance
|
15mΩ max.(initial value)
|
|
|
|
|||
|
Insulation resistance
|
100mΩ min.(at 500VDC)
|
|
|
|
|||
|
|
1000VAC,50/60HZ for 1 minute between terminals of the same polarity
|
|
|
|
|||
|
|
1500VAC,50/60 HZ for 1 minute between currentcarrying and non-current carrying metal parts
|
|
|
|
|||
|
|
|
|
|
|
|||
|
|
1500VAC,50/60 HZ for 1 minute between each terminal and ground
|
|
|
|
|||
|
Vibration
|
10-55HZ,1.5mm double amplitude
|
|
|
|
|||
|
Shock
|
Mechanical durable:1000m/Sec2;Malfunction:300m/Sec2(about 30G'S)
|
|
|
|
|||
|
Life
|
Mechanical: 10,000,000 operations above;Electrical: 500,000 operations above
|
|
|
|
|||
|
Weight
|
About 22 to 58g
|
|
|
|
|||
|
Degree of protection
|
IP40
|
|
|
|
|||
|
Payment term
|
30% deposit in advance,70% before shipment,100% T/T in advance
|
|
|
|
|||
|
Certificate
|
TUV, CCC,CE,ISO9001
|
|
|
|
|||
|
Logo
|
Customized logo with Decal / Frosted / Print are available as request
|
|
|
|
|||
|
Design ability
|
We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)
|
|
|
|
|||
