- Product Details
- {{item.text}}
Quick Details
-
Thickness:
-
0.3mm-0.7mm
-
Mouth open size:
-
60mm
-
Mouth throat depth:
-
500mm
-
Manual slitter:
-
Included
-
Full size after install (L*W*H):
-
2.2m*1.5m*1.2m
-
package Dia:
-
2.3m*0.71m*0.38m
-
Gross Weight (with legs):
-
120kg
Quick Details
-
Place of Origin:
-
China
-
Available work length:
-
2.2m/3.2m/4.2m
-
Suitable material:
-
Aluminium,Stainless steel,Iron
-
Thickness:
-
0.3mm-0.7mm
-
Mouth open size:
-
60mm
-
Mouth throat depth:
-
500mm
-
Manual slitter:
-
Included
-
Full size after install (L*W*H):
-
2.2m*1.5m*1.2m
-
package Dia:
-
2.3m*0.71m*0.38m
-
Gross Weight (with legs):
-
120kg

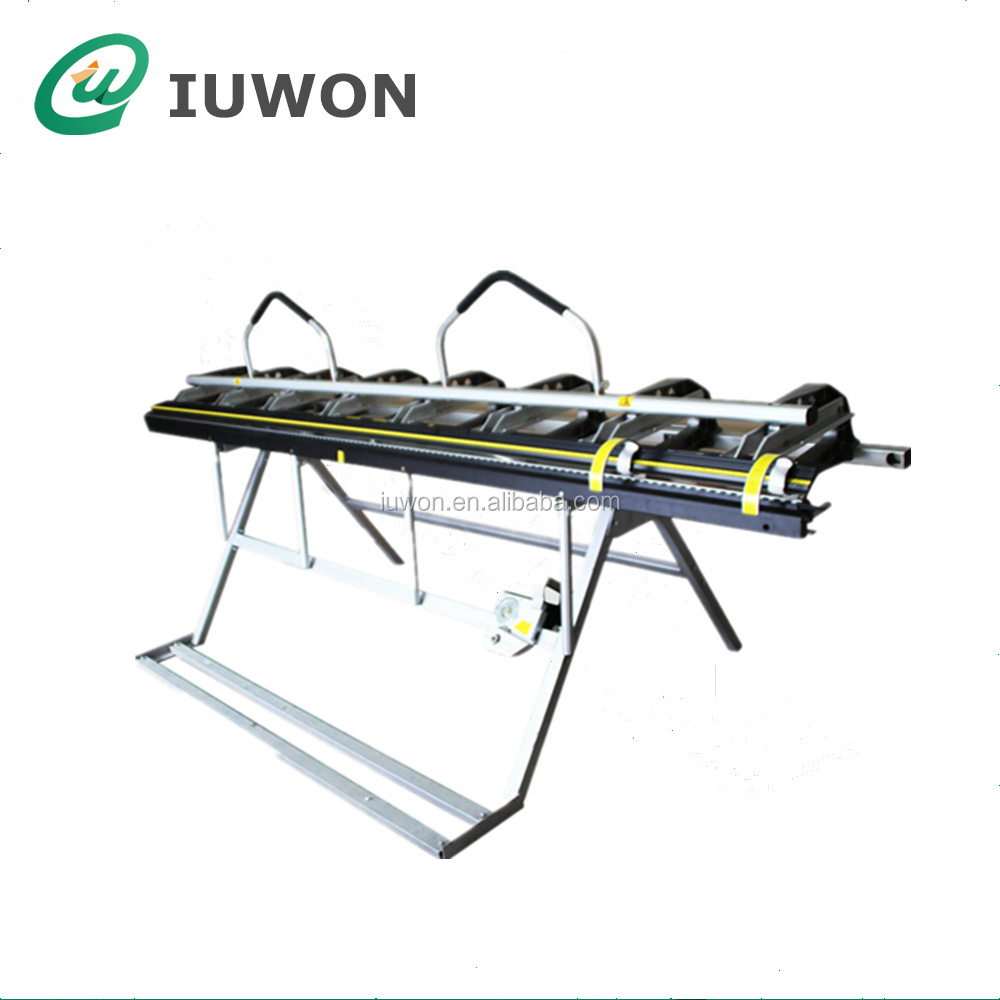

Manual Metal Sheet Folding Machine For Cutting And Bending Iron
Main Technical Parameter
|
Item |
YW-220 |
YW-320 |
YW-420 |
|
Available work length |
2.2meter |
3.2meter |
4.2meter |
|
Process Thickness of Stainless steel plate |
≤ 0.3mm |
≤ 0.3mm |
≤ 0.3mm |
|
Process Thickness of Iron plate |
≤ 0.45mm |
≤ 0.5mm |
≤ 0.5mm |
|
Process Thickness of Aluminum plate |
≤ 0.7mm |
≤ 0.7mm |
≤ 0.7mm |
|
Max bending angle |
180 ° |
135° |
135° |
|
Mouth open size |
60mm |
60mm |
60mm |
|
Mouth throat depth |
500mm |
500mm |
500mm |
|
Manual slitter |
Included |
Included |
Included |
|
Full size after install (L*W*H) (meter ) |
2.2 *1.5*1.2 |
3.2*1.5*1.2 |
4.2*1.5*1.2 |
|
package Dia (meter ) |
2.3 ×0.71×0.38 |
3.25×0.71×0.38 |
4.49×0.71×0.38 |
|
Net weight (with legs) |
85kg |
106kg |
146kg |
|
Gross Weight (with legs) |
120kg |
160kg |
202kg |
