I. instrument introduction:

The instrument is suitable for testing the purification efficiency of dust particles

The instrument can simultaneously detect particles with a maximum of 4-6 particle sizes: PM0.3, PM0.5, PM1.0, PM2.5, PM5.0 and PM10

Laser dust particle counter,Melt spraying cloth detector,laser airborne particle counter

Ii. Functional features:

1. Rich man-machine interface: 3.5-inch IPS hd color screen, showing real-time dust concentration.

2. Large-capacity data storage function (100,000 pieces), supporting multiple storage methods: real-time storage, timed storage

3, support the local view data, or through the USB interface to upload data to the computer, using computer software to analyze data, storage, printing.

4. Various communication interfaces and printing functions: USB interface, RS232 interface, bluetooth communication interface (optional), optional external wireless bluetooth printer.

5, standard USB charging, with charging protection function, support USB hot plug.Overcharge, overdischarge, overpressure, overheat protection

6. Adopt 4000mA high-capacity rechargeable polymer battery, which can work continuously for a long time

7. Chinese and English interface is optional, Chinese interface is the default

8, to meet the design requirements of the safety circuit, anti-static, anti-electromagnetic interference, through the national standard test

9. The protection level is up to IP65, which is waterproof, splash-proof, dustproof, explosion-proof and shock-proof.

Laser dust particle counter,Melt spraying cloth detector,laser airborne particle counter

Technical specification

Laser source: semiconductor laser diode, life BBB 0 100,000 hours

Particle size: 0.3um, 1.0um, 2.5um, 10um  (four channels)

0.3um, 0.5um, 1.0um, 2.5um, 5.0um, 10um (six channels)

Overlap error: less than 15% at 2 million particles per cubic foot

Detection mode: quantity mode PC/L, quality mode ug/m3, switchable

Real-time concentration detection mode, purification efficiency detection mode (detection time can be set), can be switched

Detection method: timing detection and real-time detection can be set

Alarm mode: customized quantity alarm value, quality alarm value

Communication interface: rs232-usb, 9600 baud rate, optional bluetooth communication interface, automatic identification

Explosion-proof mark: Ex ia IIC T4 Ga

Shell material: ABS+PC

Protection level: IP65

Operating temperature: 5 ~ 45℃

Working power supply: 4000mA rechargeable polymer battery

Working humidity: ≤90%RH, no condensation

Temperature and humidity: (optional) temperature and humidity sensor, temperature range: -40 ~ 120℃, humidity range: 0-100%RH

Size weight: 220*85*55 mm (L×W×H), 0.5 Kg (net weight of instrument)

Standard accessories: instrument case, specification, certificate, USB charger + data line, calibration cover

Storage mode: real-time storage, timing storage can be set;It can store 120,000 groups of data, and can view historical data on the screen

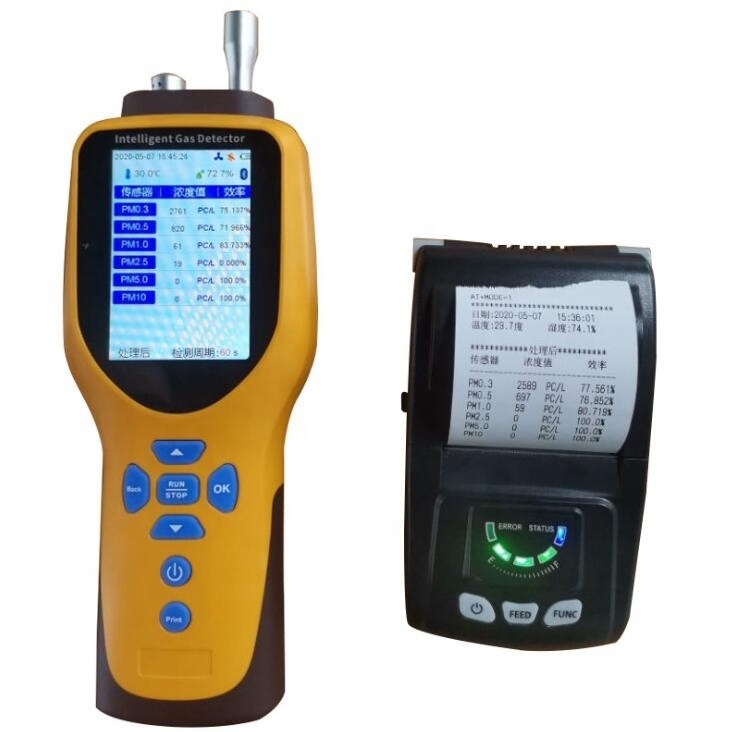

Printing mode: can be selected with micro printer to print data, can set the printing cycle, automatic printing, manual printing

Optional accessories: micro thermal printer, micro wireless bluetooth printer
