Quick Details
-
Number of nozzles:
-
80
-
Nominal fan power:
-
37kw
-
Pump (optional):
-
7.5kw
-
Manual Angle of rotation:
-
0-320°
-
Elevation anglePitch angle:
-
-10°-45°
-
Voltage:
-
380V 50Hz 3P
Quick Details
-
Place of Origin:
-
China
-
Model Number:
-
80m
-
Theoretical throw distance:
-
75-80m
-
Number of nozzles:
-
80
-
Nominal fan power:
-
37kw
-
Pump (optional):
-
7.5kw
-
Manual Angle of rotation:
-
0-320°
-
Elevation anglePitch angle:
-
-10°-45°
-
Voltage:
-
380V 50Hz 3P

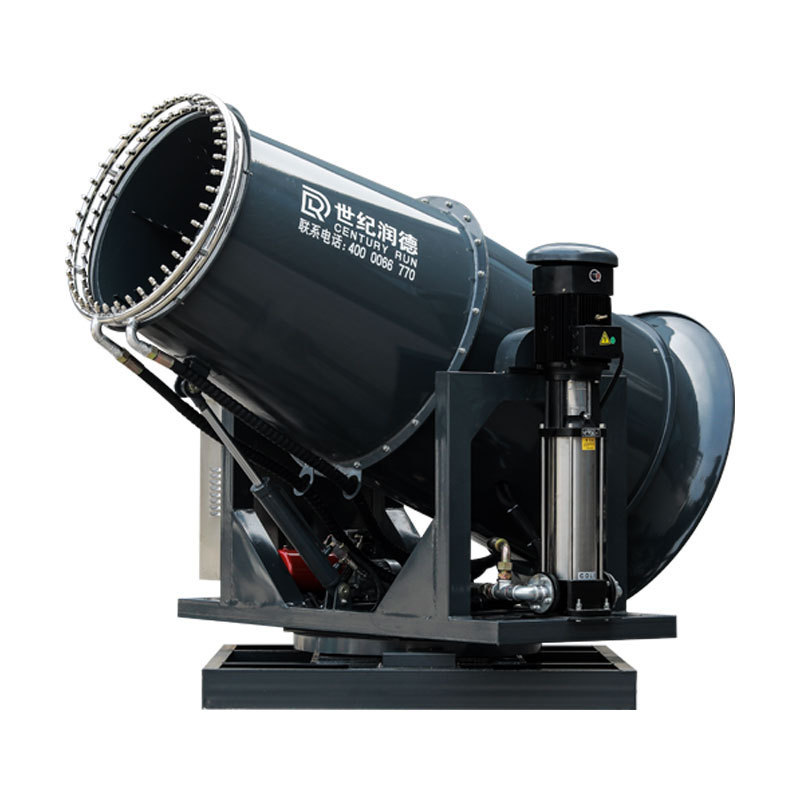

Engine Fog Cannon Pesticide Mini Fogger Pest Control Electrostatic Fogging Machine For Disinfection
According to the principle of air delivery, the dust removal gun machine uses an advanced stainless steel centrifugal pump and fine atomizing nozzle to atomize the water, and then uses the air volume and wind pressure of the fan to send the atomized water mist to a longer distance, so that the water mist reaches At a long distance, it can cover a larger volume at the same time. These tiny artificial fog particles can float and suspend in the air for a long time. The fog length generated by a single nozzle can reach 3-5 meters, the fog width is 1 meter, and the water mist and dust condense After landing, so as to achieve the purpose of dust reduction.
Fog cannon sprayer can be used for urban demolition, mining areas, thermal power plants, port terminals, urban air pollution, excessive dust area, metallurgy, chemical, coal, steel, construction, gardens, public places and other places mist dust, cooling.
| model | 80 |
| Theoretical throw distance | 75-80m |
| Rings of nozzles | 2 |
| Number of nozzles | 80 |
| Type nozzles | stainless steel |
| Nominal fan power | 37kw |
| Pump (optional) | 7.5kw |
| Manual Angle of rotation | 0-320° |
| Elevation anglePitch angle | -10°-45° |
| Hydraulic connection | 1.1kw |
| Electrical connection | 380V 50hz 3P+T |
| Protection rating | IP 55 |
| Water filter with extractable cartridge | Water filter with extractable cartridge |
| Water consumption | 8.4m³/h |
| Weight (Kg) | 1500kg |
| Pressure | 1.5~1.7Mpa |
| The length of the ram | 2500mm |
| Control mode | Manual/remote control |
| Optional | anti-explosion/freeze-proofing/noise reduction |
| package size | 2.55*1.55*2.25 |
Q1: How long is your delivery time?
A1: It is according to the model and quantity.
Generally it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
Q2: Do you provide samples? Is it free or extra?
A2: Yes, we could offer you the sample machine.
But it's not free. You need to pay for the sample and the cost of freight.
Q3: What is your terms of payment?
A3: We accept T/T, Western Union, Alibaba Trade Assurance.
