Quick Details
-
Model Number:
-
Z45X
-
Brand Name:
-
OEM
-
Product name:
-

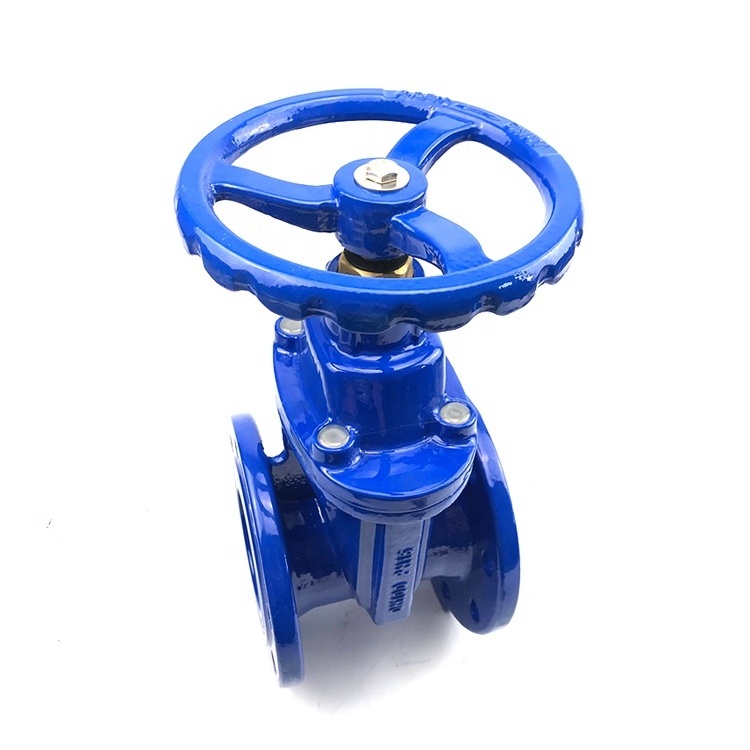

Flanged CI GG25 Cast Iron DN125 PN16 DIN Gate Valve
-
Body material:
-
Ductile Iron/Cast Iron GGG50/GGG40
-
Pressure:
-
PN10-PN16
-
Standard or Nonstandard:
-
ANSI BS DIN JIS Ect
-
Certificate:
-
ISO9001:2008 CE
-
Connection:
-
Flange Ends
-
Size:
-
DN50-DN300
-
Medium:
-
Water Oil Gas
-
Working pressure:
-
PN10/PN16
Quick Details
-
Port Size:
-
DN50-DN300
-
Warranty:
-
1 YEAR, 12 Months
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
Z45X
-
Brand Name:
-
OEM
-
Product name:
-
Flanged CI GG25 Cast Iron DN125 PN16 DIN Gate Valve
-
Body material:
-
Ductile Iron/Cast Iron GGG50/GGG40
-
Pressure:
-
PN10-PN16
-
Standard or Nonstandard:
-
ANSI BS DIN JIS Ect
-
Certificate:
-
ISO9001:2008 CE
-
Connection:
-
Flange Ends
-
Size:
-
DN50-DN300
-
Medium:
-
Water Oil Gas
-
Working pressure:
-
PN10/PN16
Flanged CI GG25 Cast Iron DN125 PN16 DIN Gate Valve
Product Description
DESCRIPTION
1. Working pressure: 1.0Mpa/1.6Mpa
2. Working temperature: 0℃～+80℃
3. Face to face according to DIN3202-F4/F5, GB-T1221
4. Flange according to DIN2533, EN1092, BS4504, GB/T 17241.6
5. Design standard: DIN3352, BS5163, G/B
6. Medium: Water, Steam, Oil, Gas etc.
|
NO.
|
Part
|
Material
|
|
1
|
Body
|
GGG50
|
|
2
|
Wedge
|
GGG50+NBR
|
|
3
|
Stem Nut
|
Brass
|
|
4
|
Gasket
|
EPDM
|
|
5
|
Bonnet
|
GGG50
|
|
6
|
Stem
|
2Cr13
|
|
7
|
Bolt
|
40Cr
|
|
8
|
O-ring
|
EPDM
|
|
9
|
Washer
|
PTFE
|
|
10
|
Nut
|
Brass
|
|
11
|
Anti-dust ring
|
EPDM
|
|
12
|
Handwheel
|
GGG50+NBR
|
|
13
|
Bolt
|
40Cr
|
|
DN
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
|
L-F4
|
150
|
170
|
180
|
190
|
200
|
210
|
230
|
250
|
270
|
|
L-F5
|
250
|
270
|
280
|
300
|
325
|
350
|
400
|
450
|
500
|
|
L-BS5163 GB
|
178
|
190
|
203
|
229
|
254
|
267
|
292
|
330
|
356
|
|
D-PN10
|
165
|
185
|
200
|
220
|
250
|
285
|
340
|
395
|
445
|
|
D-PN16
|
|
|
|
|
|
|
|
405
|
460
|
|
D1-PN10
|
125
|
145
|
160
|
180
|
210
|
240
|
295
|
350
|
400
|
|
D1-PN16
|
|
|
|
|
|
|
|
355
|
410
|
|
D2-PN10
|
102
|
122
|
138
|
158
|
188
|
212
|
268
|
320
|
370
|
|
D2-PN16
|
|
|
|
|
|
|
|
|
378
|
|
b-F4/F5/BS5163
|
19
|
19
|
19
|
19
|
19
|
19
|
20
|
22
|
24.5
|
|
n-d PN10
|
4-19
|
4-19
|
8-19
|
8-19
|
8-19
|
8-23
|
8-23
|
12-23
|
12-23
|
|
n-d PN16
|
|
|
|
|
|
|
12-23
|
12-26
|
12-26
|
|
H F4/F5/BS5163
|
225
|
250
|
285
|
330
|
360
|
410
|
490
|
565
|
670
|
|
C F4/F5/BS5163
|
160
|
180
|
200
|
200
|
250
|
250
|
280
|
320
|
350
|
Product Show
Processing Equipment
①Casting ②Machine work ③Shot blasting ④Hot spray
⑤Accessories producing ⑥Assemble ⑦Testing one by one ⑧Package
*Laizhou Dongsheng Valve are the factory focused on valves since 2002.
*All production processes are finished in our own factory to guarantee the quality.
*All these producing based on ISO9001 standard.
*All production processes are finished in our own factory to guarantee the quality.
*All these producing based on ISO9001 standard.
Testing Equipment
CHEMICAL ANALYSIS
SPECTROMETER TEST
PRESSURE TEST ONE BY ONE
ZINC THICKNESS TEST
TENSILE FORCE TEST
DIMENTION TEST
*PRESSURE TESTING BASED ON API598 ONE BY ONE
*NO LEAKAGE GUARANTEED BASED ON ZERO PRESSURE
Related Products
Contact Us
Company Introduction
Laizhou Dongsheng Valve Corporation located in Laizhou Yantai city Shandong Province, is a manufacturer of high quality valves primarily for export products are mainly OEM products since 2002.
We have 180 employees including 18 technicians, covering an area of 10200 square meters, also having advanced craftsmanship and technology. We mainly produce various check valves (for example, single disc swing check valve, double disc swing check valve, ball check valve, lift check valve, butterfly valves, diaphragm valves, ball valves and so on). Our products are widely used in municipal water and wastewater, oil, chemical, food and other fields.
Our entire valves are designed and manufactured according to ANSI (ASME), DIN, BS, JIS and other standard. Also, we ensure the best quality for customers, and our strict quality assurances systems are conducted throughout the entire production at the standard of ISO9001:2008 and CE.
We try to enlarge our oversea markets and we have received a good reputation from our customers in the USA, West Europe, the UK, Southeast Asia,Spain and Russian. Besides, we always make delivery on time and will provide you with best quality and reasonable prices.
All in all, our aim is to be your most reliable supplier.
We have 180 employees including 18 technicians, covering an area of 10200 square meters, also having advanced craftsmanship and technology. We mainly produce various check valves (for example, single disc swing check valve, double disc swing check valve, ball check valve, lift check valve, butterfly valves, diaphragm valves, ball valves and so on). Our products are widely used in municipal water and wastewater, oil, chemical, food and other fields.
Our entire valves are designed and manufactured according to ANSI (ASME), DIN, BS, JIS and other standard. Also, we ensure the best quality for customers, and our strict quality assurances systems are conducted throughout the entire production at the standard of ISO9001:2008 and CE.
We try to enlarge our oversea markets and we have received a good reputation from our customers in the USA, West Europe, the UK, Southeast Asia,Spain and Russian. Besides, we always make delivery on time and will provide you with best quality and reasonable prices.
All in all, our aim is to be your most reliable supplier.
Our Team
Exhibition
Why Choose Us
FAQ
Q1: How long is the delivery time?
A1: Generally it's 5-10 days we have stock. Or it's 15-90 days depend on different product and quantity.
Q2: What about the payment term?
A2: T/T 30% deposit, balance payment after finished production before shipment. Or as discussed.
Q3: Can I have a sample order?
A3: Yes, Laizhou Dongsheng Valve agree sample order, mixed different models is also acceptable.
Q4: What's your MOQ?
A4: Laizhou Dongsheng Valve can support 1 pc order. Welcome you to check our quality.
Q5: What's your quality inspection? Do you test all your goods before delivery?
A5: Yes, 100% test. It integrates R&D, casting, production, processing, painting, assembly, testing, sales and after-sales service, and strict quality requirements, according to GB, ASME, API, DIN standard, and Laizhou Dongsheng Valve have gained ISO9001;2008, CE, and TUV certification.
Q6: Could I customize special request valve or new design products?
A6: Laizhou Dongsheng Valve have own R&D team and more than 70 researchers and engineers. Can give you the best support on quality management and techniques, meet your different needs.
Q7: How does your factory do regarding quality control?
A7: Laizhou Dongsheng Valve Quality is priority. Valve always attach great importance to quality controlling from the very beginning to the very end. Laizhou Dongsheng Valve has gained ISO9001;2008, CE, TUV, authentication.
A1: Generally it's 5-10 days we have stock. Or it's 15-90 days depend on different product and quantity.
Q2: What about the payment term?
A2: T/T 30% deposit, balance payment after finished production before shipment. Or as discussed.
Q3: Can I have a sample order?
A3: Yes, Laizhou Dongsheng Valve agree sample order, mixed different models is also acceptable.
Q4: What's your MOQ?
A4: Laizhou Dongsheng Valve can support 1 pc order. Welcome you to check our quality.
Q5: What's your quality inspection? Do you test all your goods before delivery?
A5: Yes, 100% test. It integrates R&D, casting, production, processing, painting, assembly, testing, sales and after-sales service, and strict quality requirements, according to GB, ASME, API, DIN standard, and Laizhou Dongsheng Valve have gained ISO9001;2008, CE, and TUV certification.
Q6: Could I customize special request valve or new design products?
A6: Laizhou Dongsheng Valve have own R&D team and more than 70 researchers and engineers. Can give you the best support on quality management and techniques, meet your different needs.
Q7: How does your factory do regarding quality control?
A7: Laizhou Dongsheng Valve Quality is priority. Valve always attach great importance to quality controlling from the very beginning to the very end. Laizhou Dongsheng Valve has gained ISO9001;2008, CE, TUV, authentication.
