Quick Details
-
Dimensions(L*W*H):
-
2.3*1.8*2.1M
-
Weight:
-
1200 KG
-
Print Dimension:
-
760mm
-
Print Speed:
-
50m/min
-
Product name:
-
flexo plastic bag printing machine plastic bags manufacturing machine
-
Suitable Material:
-
Plastic film, paper, non-woven fabric, woven bag
-
NO. Of printing color:
-
2 colors
-
Max Film Width:
-
830MM
-
Max Print Width:
-
760MM
-
Printing length (repeat):
-
200-1000MM
-
Max. Mechanical speed:
-
60m/min
-
Max. Printing speed:
-
20-50m/min
-
Transmission way:
-
direct drive gear
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
allraise
-
Voltage:
-
380v, 380V.50HZ.three-phase
-
Dimensions(L*W*H):
-
2.3*1.8*2.1M
-
Weight:
-
1200 KG
-
Print Dimension:
-
760mm
-
Print Speed:
-
50m/min
-
Product name:
-
flexo plastic bag printing machine plastic bags manufacturing machine
-
Suitable Material:
-
Plastic film, paper, non-woven fabric, woven bag
-
NO. Of printing color:
-
2 colors
-
Max Film Width:
-
830MM
-
Max Print Width:
-
760MM
-
Printing length (repeat):
-
200-1000MM
-
Max. Mechanical speed:
-
60m/min
-
Max. Printing speed:
-
20-50m/min
-
Transmission way:
-
direct drive gear
Products Description

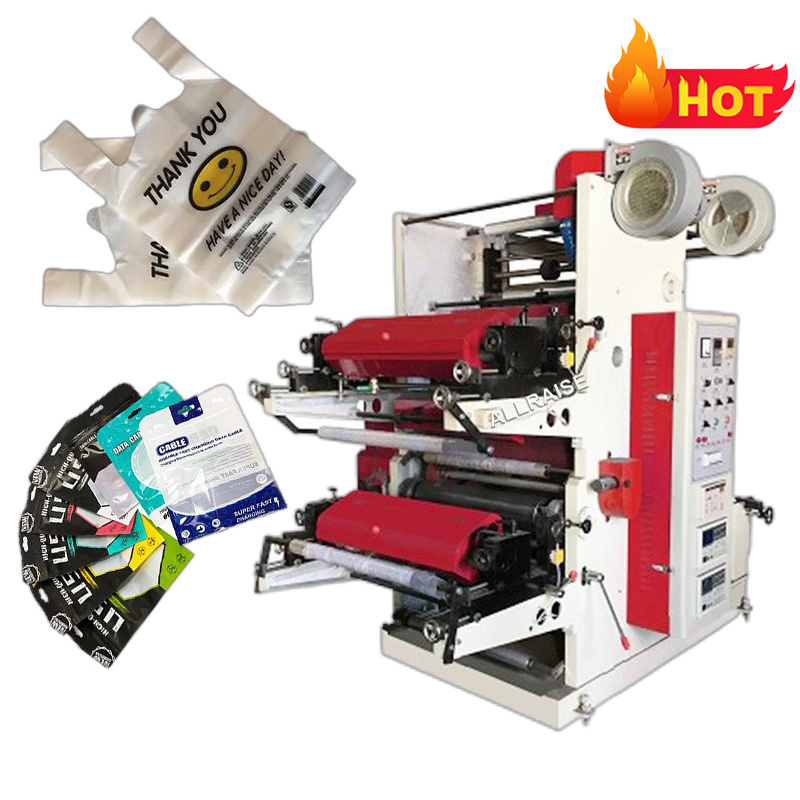

Flexo Plastic Bag Printing Machine Plastic Bags Manufacturing Machine
Woven Bag Printing Machine
This
Flexo Plastic Bag Printing Machine Plastic Bags Manufacturing Machine Woven Bag Printing Machine
is a printing machine with light-sensitive resin soft plate as a plate, the use of environmentally friendly ink, is the most popular printing machine in the domestic and foreign market, because of the low cost of plate making, especially by small batch products, multi-variety manufacturers welcome. The machine is suitable for printing PE polyethylene, PP polypropylene, PAPER cellophane, web paper, non-woven fabric, kraft paper, woven bag equation logic packaging materials printing.
Product Parameters
|
Modell
|
ORYT2-800
|
Transmission way
|
direct drive gear
|
|
Suitable Material
|
Plastic film, paper, non-woven fabric, woven bag
|
Register precision
|
Longitude:0.5MM Transverse:0.5MM
|
|
Printing color
|
2 colors
|
Master motor power
|
1.5KW
|
|
Max Film Width
|
830MM
|
Frequency converter
|
1.5KW
|
|
Max Print Width
|
760MM
|
Machine power
|
8KW
|
|
Printing length (repeat)
|
200-1000MM
|
Cover Dimensions
|
2.3*1.8*2.1M
|
|
Max. Mechanical speed
|
60m/min
|
Weight
|
1200KG
|
|
Max. Printing speed
|
20-50m/min
|
Voltage
|
380V.50HZ.three-phase
|
|
Advantage
|
|
|
|
1
|
Easy to operate, soft start, accurate color.
|
|
|
2
|
The meter can be set according to the requirements of the printing quantity, to the number of automatic stop, automatic stop.
|
|
|
3
|
Manual lifting plate drum, automatic ink stirring after lifting.
|
|
|
4
|
Roller ink transfer, uniform ink color.
|
|
|
5
|
Reliable drying system, with high-speed operation, automatic shutdown.
|
|
|
6
|
360 degrees continuous adjustable longitudinal flower matching device.
|
|
|
7
|
Variable frequency motor speed regulation, adapt to different printing speed.
|
|
|
8
|
The plate roller seat and the receiving rack are equipped with a point and stop button, which is easy to operate the machine when loading the plate.
|
|
