Quick Details
-
Place of Origin:
-
Guangdong, China
-
working volt:
-
12V/24V/220V AC
-
static working current:
-
≤7mA
-
operating temperature:
-
-40~+80C
-
working frequency:
-
315mhz/ 433.92mhz
-
sensitivity:
-
>=-105dBm
-
output current:
-
<=10A
-
dimension:
-
74.5* 54.5* 27mm
-
Maximum storage:
-
400 codes
-
certificates:
-
CE & Rohs
-
Item:
-
4CH relay Receiver Module
Quick Details
-
Function:
-
Automatic
-
Brand Name:
-
YET
-
Model Number:
-
YET 404PC
-
Place of Origin:
-
Guangdong, China
-
working volt:
-
12V/24V/220V AC
-
static working current:
-
≤7mA
-
operating temperature:
-
-40~+80C
-
working frequency:
-
315mhz/ 433.92mhz
-
sensitivity:
-
>=-105dBm
-
output current:
-
<=10A
-
dimension:
-
74.5* 54.5* 27mm
-
Maximum storage:
-
400 codes
-
certificates:
-
CE & Rohs
-
Item:
-
4CH relay Receiver Module

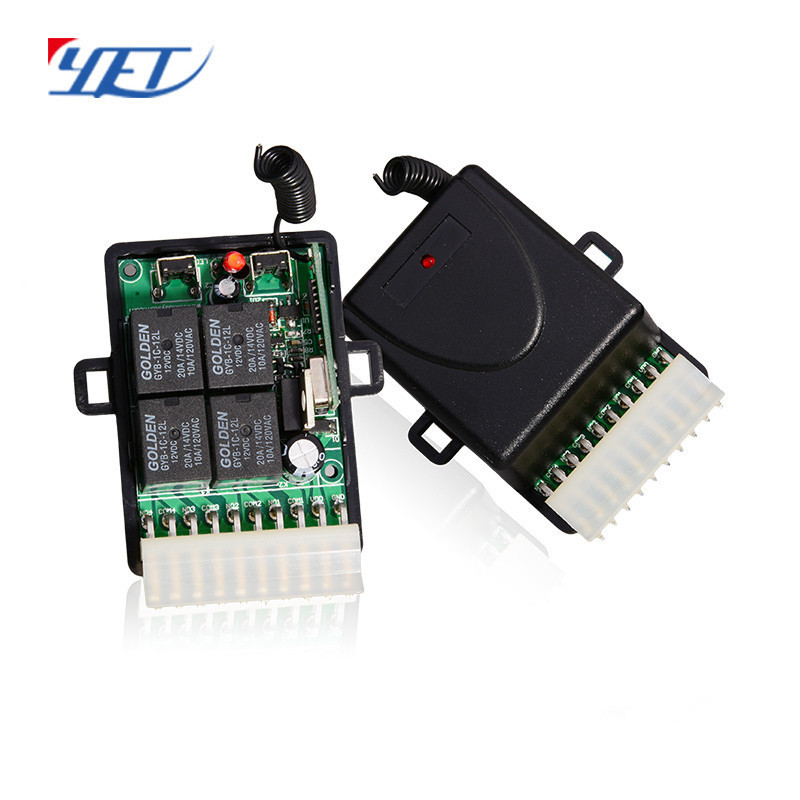

433Mhz Universal Wireless Remote Control Switch DC 12V 4CH relay Receiver Module With 4 channel RF Remote 433 Mhz Transmitter
|
Characteristics:
|
| 1.Various crust for your choice |
| 2.Materail:Metal and PVC |
| 3.Encoding type:Fixed/learning/rolling code(optional) |
| 4.High stability:Adopting imported SMT component SAW and super high frequency audion(6.5G) |
|
Main TechData for remote control:
|
| 1.Operating Current:7mA |
| 2. Operation frequency:303MHZ/310MHZ/315MHZ/433MHZ optional |
| 3.Transmit Power>=10mW |
| 4.Transmission speed:50-60KHz |
| 5.Frequency windage: ±0.2MHz |
| 6.Transmission distance:100meters (open space) |
| 7.Oscillation resistance:Per customer's request |
| 8 . Chip and operating mode:Hopping code(HC301,300,200 and so on) |
| Fixed code(2262,2260 and so on) |
| Learning code(1527,2240,HT6P20B,HT6P20D and so on) |
| Copy code |
|
Main TechData for CY402PC 220V:
|
|
1.
Working voltage: 220V AC
|
|
2.
Current on contact:
≤10A
|
|
3.
Working temperature:
-40
°C
- +80
°C
|
|
4.
Receiving sensitivity:
≥
-105dBm
|
|
5.
Working frequency:
315MHz
,
433MHz (optional)
|
|
6.
Receive
the type of encoding:
Hopping code(HC301,300,200 and so on)
|
|
Fixed code(2262,2260 and so on)
|
| Learning code(1527,2240,HT6P20B,HT6P20D and so on) |
| Copy code |
|
7.
Maximum storage for transmitter:
30
pcs of learning or fixed code; 6pcs of rolling code
|
| 8. Dimension: 74.5* 54.5* 27mm |
|
Use range:
|
| Very easy and convenient used for home/store anit-theft alarm,electric cars,,motorcycles, |
| automobile ,car alarms,all kind of doors/windows controllers and other industrial control |
Picture Show
The way of output
A. Signal keeps 8 seconds-- “1” connect
B. Signal self-locking -- “2” connect
C. Signal interlock -- “3” connect
D. Signal point start--disconnect
(check the Circuit diagram for details)
Learning way and steps
Learning fixed code & learning code:
1. Press learning key of receiver—the pilot lamp light—release learning key and pilot lamp extinguish , indicate enter into the status of learning.
2. Press any button of the remote control, indicate learning success as the pilot lamp flash 5 times and automatically exit learning state. Receiver automatically exit learning state if you do nothing in 32 seconds. (Can store up to 30pcs this type remote control)
Learning rolling code:
1. Press learning key of receiver—the pilot lamp light—release learning key and pilot lamp extinguish , indicate enter into the status of learning first time.
2. Press any button of the remote control, indicate first time learning success as the pilot lamp keep flashing slowly.
3. Repeat the operation of step “1”, enter into the status of learning second time.
4. Press the same button in step “2”, the pilot lamp flash 5 times, learning successful. (Can store up to 6pcs this type remote control)
Delete memory message:
Hold on pressing learning key over 3 seconds until the pilot lamp extinguish then glows, which indict success to delete the memory message .
|
Packaging Details: |
Carton,500PCS per case ,carton size:48*38*26CM, GW=NW+1.8KG |
|---|---|
| Delivery Detail: | 7~15 days |
1.your inquiry related to our products or prices will be replied in 12 hours
2.well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM,any your customized products we can help you to design and put into production
4.Protection of your sales area, ideas of design and all your private information
5.Deliver by air mail or ship for your orders
6.Item: wireless garage door receiver
1.30% deposit,70% balance before shipment :T/T & western union optional;
2.Minimum Order:100 pcs( accept trial order );
3.Delivery Details:within two weeks (Sample can be delivered within 3 days);
4.Discount are offered based on order quantity;
