Quick Details
-
Voltage:
-
110-220V
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Lyan
-
Dimension(L*W*H):
-
219*76.5*78.5cm
-
Weight:
-
2000 KG
-
After-sales Service Provided:
-
1 YEAR
-
Name:
-

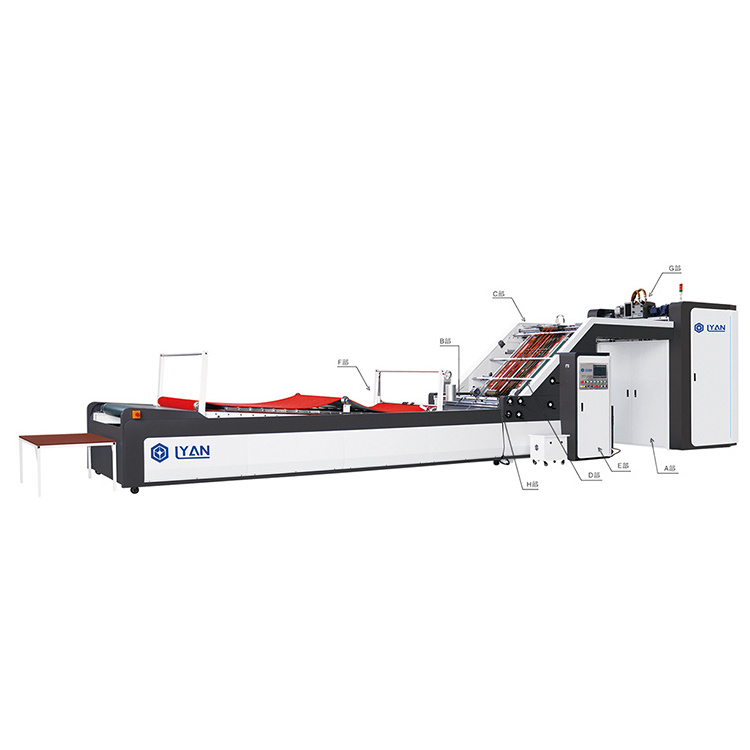

Corrugated Cardboard Fully Automatic Flute Laminator
-
Laminating Speed:
-
100pcs/min
-
Keyword:
-
Laminting Machine
-
Usage:
-
Packaging Carton Box
-
Feature:
-
Automatic Control
-
Feeding way:
-
High Speed Automatic Feeder
-
Machine Name:
-
Full Automatic Flute Laminating Machine
-
Total power:
-
13 Kw
Quick Details
-
Packaging Type:
-
Film
-
Packaging Material:
-
Plastic
-
Driven Type:
-
Electric
-
Voltage:
-
110-220V
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Lyan
-
Dimension(L*W*H):
-
219*76.5*78.5cm
-
Weight:
-
2000 KG
-
After-sales Service Provided:
-
1 YEAR
-
Name:
-
Corrugated Cardboard Fully Automatic Flute Laminator
-
Laminating Speed:
-
100pcs/min
-
Keyword:
-
Laminting Machine
-
Usage:
-
Packaging Carton Box
-
Feature:
-
Automatic Control
-
Feeding way:
-
High Speed Automatic Feeder
-
Machine Name:
-
Full Automatic Flute Laminating Machine
-
Total power:
-
13 Kw
Feeder System
高精密高速飞达送纸，送纸平滑顺畅。
High precision high speed feeder , make the feeding smooth .
加强型送纸装置，吸嘴角度可自由调节，适应不同类型面纸
Strengthen type feeder device , the suction mouth angle can be adjustable , according to different kinds of surface paper .
Electric system :
主要电器元件采用进口品牌
Main electric appliances all adopt the imported famous brand .
PLC 跟踪技术，故障自动侦测
PLC tracking technique , automatic fault detection .
Pressure adjustment system :
压力单边调节，确保二边压力一致
Adjust the pressure in single side , to ensure the pressure is same on both sides .
带压力刻度表显示，更换纸张规格时调节轻松简便
With pressure gauge display , can easily adjust when change the paper size.
Pressure conveyor :
浮动式压平设计，无需调节压床压力
Floating type pressure design , don’t need to adjust the pressure of flatbed .
加高设计，利于厚瓦楞纸板的顺畅工作
Heightening design , good for the smooth work of thick corrugated cardboard .
|
型号 Model
|
1300A
|
1450A
|
1550A
|
1650A
|
|||
|
最大贴面尺寸
Max laminating size
|
1300mm×1250mm
|
1400mm×1250mm
|
1500mm×1250mm
|
1600mm×1250mm
|
|||
|
最小贴面尺寸
Min laminating size
|
400mm×400mm
|
400mm×400mm
|
400mm×400mm
|
400mm×400mm
|
|||
|
经济速度 Economic speed
|
0-100sheets/min
|
0-100sheets/min
|
0-100sheets/min
|
0-100sheets/min
|
|||
|
裱合精度 Laminating precision
|
±1.5
|
±1.5
|
±1.5
|
±1.5
|
|||
|
功率 Power
|
10kw
|
12kw
|
12kw
|
12kw
|
|||
|
外形尺寸 Size
|
13.5m×2m×2.4m
|
13.5m×2.05m×2.4m
|
13.5m×2.15m×2.4m
|
13.5m×2.25m×2.4m
|
|||
|
重量 Weight
|
About 4.8t
|
About 5t
|
About 5.2t
|
About 5.4t
|
|||
|
底纸厚度
Bottom paper thickness
|
A/B/C/E flute, 3/4/5 layer , less than 12mm thickness
|
|
|
|
|||
|
面纸克重
Surface paper gram weight
|
150-600 g/m2
|
|
|
|
|||
|
显示屏
|
Display screen
|
台达（台湾）
|
Delta (Taiwan)
|
|
开关电源
|
Switching power supply
|
欧姆龙（日本）
|
OMRON
|
|
主机电机
|
Mainframe Motor
|
天津同德利
|
Tianjin Tong'de'li
|
|
飞达
|
Feeder
|
日本日光公司（零件组装）
|
Japanese Rigung
|
|
减速电机
|
Geared motors
|
上海人民
|
Shanghai Renmin
|
|
真空泵
|
Vacuum pump
|
欧乐霸 （台湾）
|
EUROVAC (Taiwan)
|
|
漩涡气泵
|
Vortex Pump
|
上海恒力牌
|
Shanghai Hengli
|
|
同步带
|
Synchronous belt
|
宁波贝递（合资）
|
Ningbo Beidi (Joint venture)
|
|
整机轴承
|
Bearing
|
瓦、哈、洛（三大厂）
|
WTJB,HRB,LYC
|
|
整机链条
|
The host chain
|
朝和牌（中日合资）
|
CHOHO (sino-Japanese Joint venture)
|
|
压输皮带
|
Transfer press belt
|
意大利（合资）
|
Italy (Joint venture)
|
|
可编程控制器PLC
|
PLC
|
松下（日本）
|
Panasonic (Japanese)
|
|
接触器
|
Contactor
|
施耐德（法国）
|
SCHNEIDER (The French)
|
|
主机变频器
|
The host inverter
|
台达（台湾）
|
Delta (Taiwan)
|
|
压输平台变频器
|
Pressure platform inverter
|
台达（台湾）
|
Delta (Taiwan)
|
|
压输平台电机
|
Pressure platform motor
|
上海欧特
|
Shanghai OTT
|
|
故障现象
Failure phenomenon
|
存在原因
Existing reason
|
排除方法
Elimination method
|
|
吸风带不转动
Suction belt not rotate |
光电开关不作用
The photoelectric switch doesn't work. |
调节光电开关
Adjust the photoelectric switch |
|
|
伺服电机不作用
The servo motor does not work. |
调节伺服驱动器
Adjust the servo driver. |
|
底纸不能自动输出或一次输出多张
Bottom paper can’t feed automatically or feed more than one piece in one time . |
分纸头间隙过小或过大
the clearance of paper-separating head is too big or small . |
调节分纸头间隙
Adjust the clearance of paper-separating head |
|
|
风力过小或过大
Wind power is too small or big |
调节风量大小
Adjust the air volume. |
|
貼合不准
Irregular laminating |
输纸不到位
Paper feeding is not in place |
调节卡纸位置
Adjust the paper position |
|
|
前定规位置不准确
Front initiating position is not right |
调节前定规手轮
Adjust the hand wheel of front initiating . |
|
|
辊两侧压力不一致
The pressure in both ends of roller is not same . |
调节压力至一致
Adjust the pressure to be same . |
|
两纸贴合后有胶水溢出
Glue ran out when the two pieces of paper were glued together. |
貼合辊或压合辊的间隙过小
The clearance of laminating roller or pressing roller is too small . |
调节间隙
Adjust the clearance |
|
|
上胶量过大
The glue feeding volume is too big |
调整上胶量
Adjust the glue volume. |
|
底纸上胶左右不匀
The glue on the bottom paper is uneven. |
上胶辊和匀胶辊两端不平行
The both ends of glue roller and glue distribution roller are not parallel . |
调节各辊之间的平行度
Adjust the parallelism between rollers. |
|
|
上胶辊和下胶辊两端不平行
The both ends of upper glue roller and lower glue roller are not parallel . |
|
