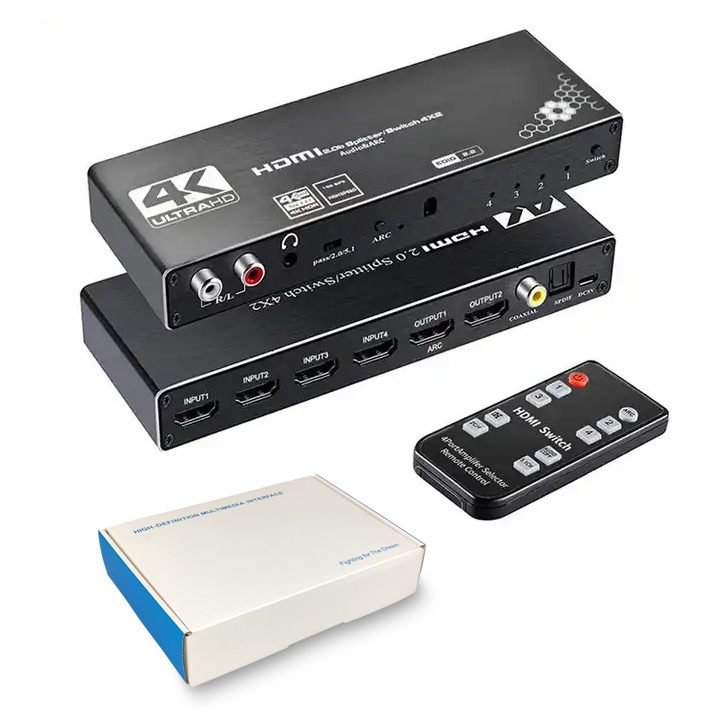

4x2 HDMI 2.0 Audio & ARC Switch 4 in 2 out HDMI Switcher Splitter with 3.5mm L/R Coaxial Optical Port with IR Remote Control

4x2 HDMI 2.0 Audio & ARC Switch 4 in 2 out HDMI Switcher Splitter with 3.5mm L/R Coaxial Optical Port with IR Remote Control

FOB Reference Price: Get Latest Price

≥20 Pieces

US $16.5

≥500 Pieces

US $15.3

≥1000 Pieces

US $14.6

≥10000 Pieces

US $13.99

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: HDMI Switch/splitter

Certification:: FCC RoHS ce

Package:: Polybag

Warranty:: 1 Year

MOQ:: 10 Pcs

Color:: Black

Quick Details

Brand Name:: Justlink

Model Number:: JL-4K0402A

Place of Origin:: China

Product name:: HDMI Switch/splitter

Certification:: FCC RoHS ce

Package:: Polybag

Warranty:: 1 Year

MOQ:: 10 Pcs

Color:: Black

Products Description

4x2 HDMI 2.0 Audio & ARC Switch 4 in 2 out HDMI Switcher Splitter with 3.5mm L/R Coaxial Optical Port with IR Remote Control

This HDMI Switch support 4 HDMI Inputs to 2 HDMI Output, can be applied for connection, signal amplification, multi-picture
conversion and for selection between computer/PC, STB/Smart Box, DVD Player, Blue-ray Player, PS3/PS4 Pro and LCD
TV,LCD,Projector, as well as an Audio/Video receiver. The excellent quality allows you to experience the fun brought by the
infusion of science and technology into life

Features

The 4x2 HDMI 2.0b switch splitter can connect 4hd signal sourcesto 2 hd display terminals. lt can easily split the 4 hd signals generatedby the 4 hd signal sources to 2 hd displayers or projectors.ln addition,when connect it to a HDMI output cable, it can amplify the HDMI singal.The 2 signal sources can be switched freely.The HDMl splitter cansupport all hd multichannel audio formats including 720p, 1080i, 1080p2160p@30Hz,2160p@60Hz. lt also supports the 3.5 mm audio outputand SPDIF audio output.This product does not support automaticswitching.

Feature

1.Downscaling (can output 4K and 1080p at the same time)2.High Definition,it can support 4K/60HZ RGB: 8:8:83.Transmission long distance,4K/60Hz up to 10meters1080p up to 20meters4.Support HDCP:1.1/1.2/1.3/1.4/2.2/2.3

HDMl VerSiOn	HDMI 2.0b
HDMl reSolution	up to 3840*2160/60Hz
Support video color format	8/10/12 bit deep color
Support audio format	DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth	600MHz
Max baud fate.	18.5Gbps
lnput cable distance	(1080p resolution)≤20m,(4K resolution)≤10m AWG26 HDMIstandard cable
Output cable distance.	(1080p resolution)≤20m,(4K resolution)≤10m AWG26 HDMIstandard cable
Max working current	500mA
Power adapter format	lnput:AC(50HZ,60HZ) 100V-240V;utput: DC5V/2A
Operating Temperature range	(-15°Cto +55°C)
Dimension (LxWx H)	1705825(mm)
Weight	200g
