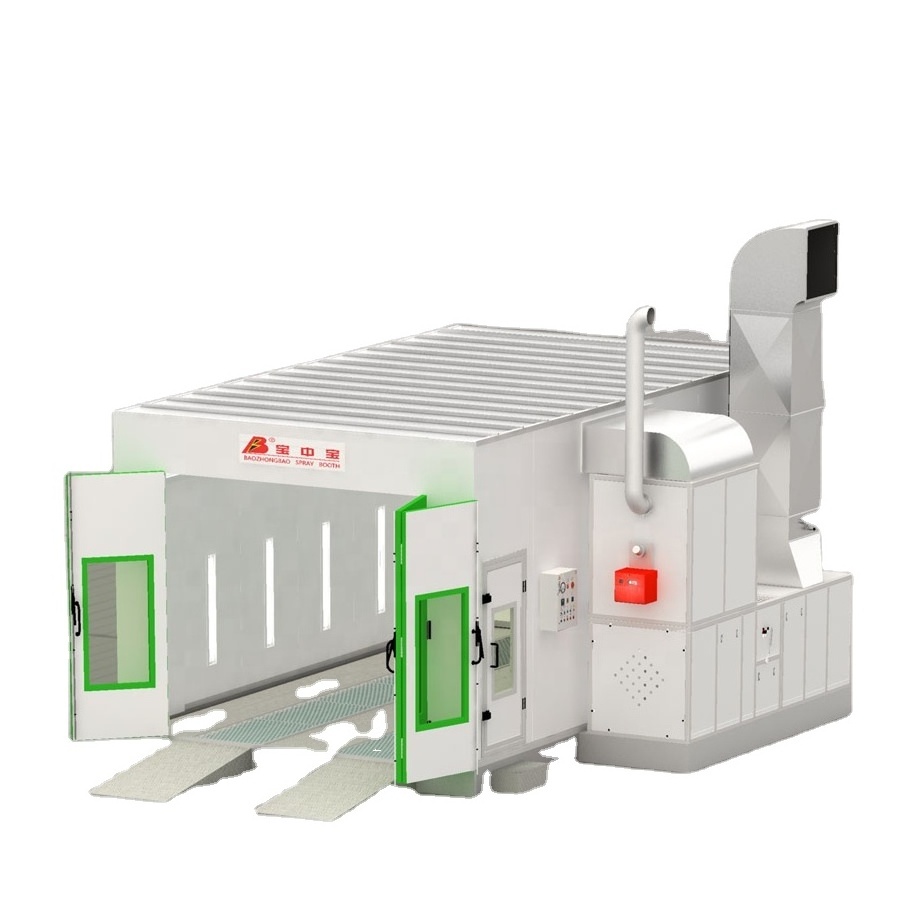

Car paint booth China spray booth T8000 CE standard

Outside dimension:7000*5360*3430mm(L*W*H);

Inside dimension: 6900*4000*2650mm(L*W*H);

Front door dimension: 3000*2700mm(W*H);

Working door dimension: 650*1800mm(W*H);

Total Power：17KW

Cabin System:

1) Wall board : EPS (epispastics polystyrene)Colorful Steel Skin Boards,50mm Thick, Tongue & Groove Style, Compound Construction, Aluminum-alloy Frame ,Anti-flame and Heat-Insulation

2) Basement : Galvanized steel sheet and square steel pipe assembling Grid & embossed steel plate, Embossed Steel Ramps.

3) Air Volume: 25000m3/h; Air Speed: 0.35m/s

Inlet Fan Model: DDF 610 Outlet Fan Model: DDF 610

Blower Capacity: 25000m3/h Blower Capacity: 25000m3/h

Pressure: 650Pa Pressure: 650Pa

Rolling Speed: 1750rpm Rolling Speed: 1750rpm

Power: 7.5kw Power: 7.5kw

Quantity: 1 sets Quantity: 1 sets

Purification System:

Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 4μm. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. Air Pressure Gauge, TSP≤1.4mg/m3

Heat System:

1) Burner: Italy Riello Brand,RG20 Diesel Burner, 180000Kcal/h, 20N Damp Motor

2) Heat Energy Converter : SUS304 Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85%

3) Max temp:80℃, heating time :6-10min(20-60℃), fuel consumption:4-5kg/vehicle

Lighting System:

1)Ceiling Lights: 32Pcs x36W Philips lamp

2) Side Light: 16 pcs 36w Philips Lamp, 1000 Lux, the light glass is clear and tempered throughout

Controlling System:

Micro Computer Programme Controlling, Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm, failure alarm, timer

Environmental System:

Multi-Layer Fiber glasses Filter, active-carbon, and ensure a qualified exhaust according to the relevant state standards
