Quick Details
-
Model Number:
-
KCD4
-
Max. Current:
-
16A / 20A / 25A / 30A / 35A
-
Mechanical Life:
-
10000 times
-
Certification:
-
CQC CE CB IEC TUV
Quick Details
-
Max. Voltage:
-
250V / 125V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Le Niu
-
Model Number:
-
KCD4
-
Max. Current:
-
16A / 20A / 25A / 30A / 35A
-
Mechanical Life:
-
10000 times
-
Certification:
-
CQC CE CB IEC TUV
HI ; You can bring your pictures to make an inquiry ?
If you need other specifications, please remember to write to me or contact to discuss.
| Rated working voltage,CurrentRating | 16A/20A/25A/30A/35A/125V/250V |
| Operating temperature rangeTemperature | -25+85 ℃ |
| Contact ResistanceContact Resistance | <0.03Ω |
| Action ForceActuating Force | 1.3+0.5N |
| Insulation ResistanceInsulation Resistance | >100MΩ |
| Life(switching Life) | 10000Times |
Product Model: Kcd4
Product Size: 31X25.5MM
Product Frequency: 50HZ
Product Temperature: T85
Product Tin Welding : PTI 175
Product Power: 16A/20A/25A/30A/35A/125V/250V
Product Config: With LED Or NO-Led
Product Material: Copper, Iron, Silver
Product Certification: CCC, CQC, CE, CB, TUV
Product Life: 10,000 Cycles(According to the material)
Product Lighting: Optional 12V 24V 110V 220V (Customization)

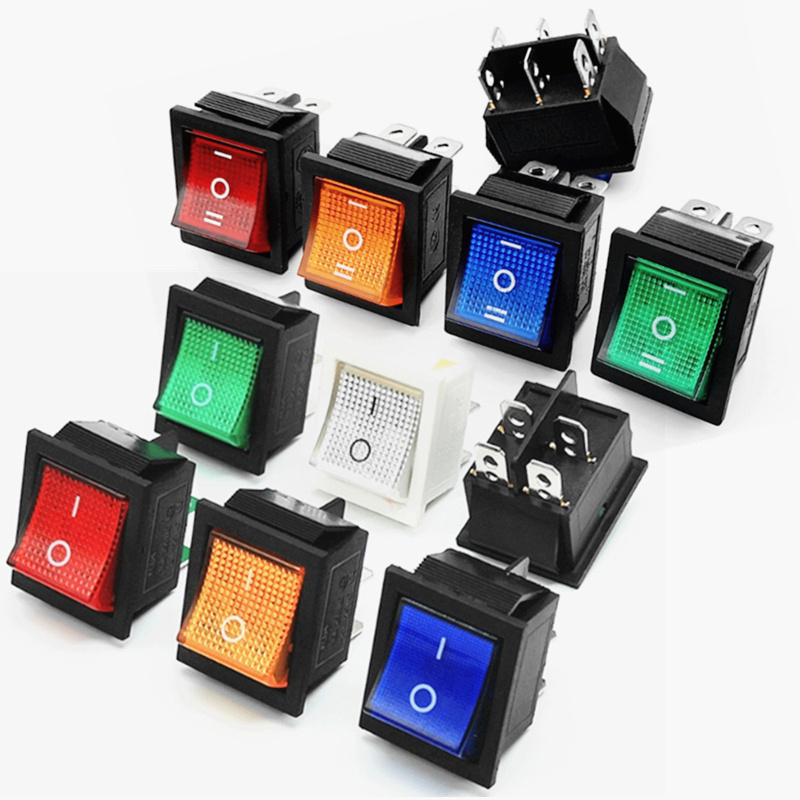

Product color: red, yellow, blue, green, black, white, gray (customization support)
Product Name: Rocker Switch / Push Button Switch / Mini Switch / Micro Switch / PCB Switch
Product Terminal: 6.3X0.8 MM / 1.5X0.8 MM
Product Wiring Pin: Optional 2Pin (No lights And Product Function 101 )
3Pin (Optional With LED Product Function 101 And NO-LED Product Function 101),
4Pin (Optional With LED Product Function 101 And 103
No lights Product Function 101 And 103 )
6Pin (Optional With LED Product Function 101 And 103
No lights Product Function 101 To 107 )
Product Function:
No.101: ON-OFF (press on power and press off power, for short : self-locking switch,
usually applicable to: printer, electronic scale, etc. Main control power circuit switch,
turn on the power during use, turn off the power after use)
No.102: ON-ON (press on power-release power off,
for short: momentary switch or reset switch or Normally-close switch
No.103: ON-OFF-ON (press open-press close-press open control power supply,
referred to as: 3 Position Switch, usually applicable to: motor, blower, fan, etc. Speed regulation,
variable speed, positive turn, reverse, a product dual control
two-purpose multi-purpose power switch)
No.104: (ON) -OFF (usually power on-press off power supply, free / normal state: power on, abbreviated as: Normally-Open switch)
No.10 5 : (ON) - (ON) Press power off release power on,
for short , momentary switch or reset switch Or the Normally-Open switch
No.10 6 : (ON) -OFF-ON single side press start power-loose hand off power / single side press open power, referred to as single reset switch or single instantaneous switch
No.10 7 : (ON) -OFF- (ON) on both sides to press the start power supply-loose hand to turn off the power supply, referred to as the double reset switch or double instantaneous switch
(Note: Due to language translation and product market cycle and many other factors, the above data is for reference only, and contact online seller service consultation for specific matters)
