Handheld Gasoline Oil Cetane Number Detector ASTM D4737 Octane Number Analyzer ASTM D2699

Handheld Gasoline Oil Cetane Number Detector ASTM D4737 Octane Number Analyzer ASTM D2699

FOB Reference Price: Get Latest Price

≥1 Sets

US $5

≥5 Sets

US $1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: GOLD

Model Number:: GDSX-200

Product name:: Portable Petroleum Octane and Cetane Number Tester

Usage:: Gasoline diesel tester

Material:: Gasoline,general gasoline,blended gasoline

Display:: LCD display

Power supply:: DC (AA)6V

Standard:: ASTM D2699; ASTM D613

MOQ:: 1 Set

Weight:: 5Kg

Response time:: 1 Second

Application:: Petroleum Products

Quick Details

Warranty:: 1 Year

Power:: Electronic

Place of Origin:: Chongqing, China

Brand Name:: GOLD

Model Number:: GDSX-200

Product name:: Portable Petroleum Octane and Cetane Number Tester

Usage:: Gasoline diesel tester

Material:: Gasoline,general gasoline,blended gasoline

Display:: LCD display

Power supply:: DC (AA)6V

Standard:: ASTM D2699; ASTM D613

MOQ:: 1 Set

Weight:: 5Kg

Response time:: 1 Second

Application:: Petroleum Products

Product Introduction

Handheld Gasoline Oil Cetane Number Detector ASTM D4737 Octane Number Analyzer ASTM D2699

The handheld octane/cetane analyzer is a new generation detector for octane and cetane measurement, with international advanced theory. It can measure the oil’s octane and cetane precise value rapidly, store large amount of data; and all the results are printable.
The interface is user-friendly. Its sensors adopt full-sealed design with alloying metal. With longer standby-cyclic charging battery, it applies in operation site, outdoor and laboratory.

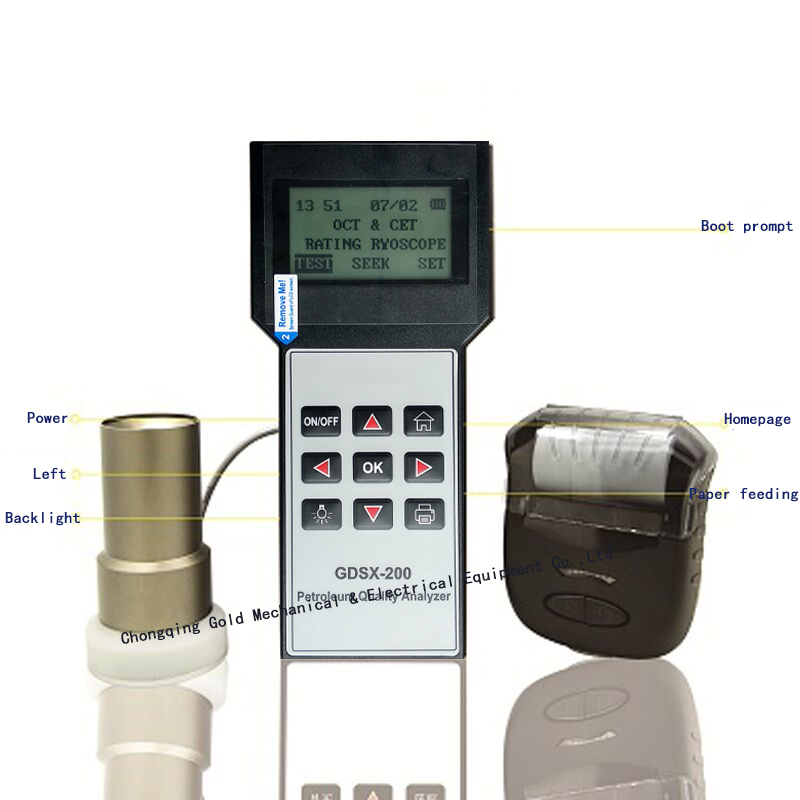

This product is used for the instantaneous octane number of vehicle gasoline, which corresponds to the engine and research methods (RON and Mon), as well as the cetane number of diesel. In addition to the query, it also provides the curing temperature level of the analyzed liquid and diesel oil. The measurement results are displayed on the LCD. The following figure shows the screen image.

Application site:

The Octane Tester GDSX-200 is recommended for the use at filling stations, petroleum refineries, Custom-houses, environmental and supervisory organizations, electric power stations as a portable universal device to control fuel and oil quality.

Product Detail

Features:

1. The handheld octane / cetane meter can measure both of gasoline's octane value and diesel's cetane value. 2. Rapid and precise measurement, user-friendly operation, larger screen with English language, EL background light make it's easier under dark environment, English menu operation on the host panel. 3. Tree years quality guarantee for circuit board: we promise for free replacement within three years for any non-artificial quality problems. The sensors adopt full-sealed design with alloying metal. External cover has high strength, shock resistance and water/dust/moisture proof performance. As well as sponge inside. 4. Upper and lower limits pre-setting are available, the monitor will display when it's over the limit, which is convenient for the users. 5. Auto-off function can save energy and realize low power consumption. There are 4 reliable batteries for recycling charging.

Specification

No.	Parameters Description	Value
1	The measurement unit of octane is ON (adjustable as users needed)	40-120
2	Permissible error of octane, per unit (max)	±0.5
3	Fluctuate range of octane, per unit (max)	±0.2
4	The measurement unit of cetane is CN (adjustable as users needed)	20-100
5	Permissible error of cetane, per unit CN (max)	±1
6	Fluctuate range of cetane, per unit CN (max)	±0.5
7	Measurement duration (second)	<20
8	Critical value for battery when voltage is too low, V	2.5
9	Monitor, mm(L×W×H)	224x106x40
10	Sensor, mm	60х100
11	Weight, Kg (max)	5
12	Operation duration (unit: hour)	15
13	Display	LED screen, printable result
14	Power consumption	30ma
