PVB pump models can closely match pressure and/or flow demand with a control selected from: – Pressure compensator with or without
a remote control facility. – Pressure compensator with adjustable displacement control. – Load sensing compensator.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
PVB5 PVB10 PVB15 PVB20 PVB29
-
Place of Origin:
-
Jiangsu, China
-
max rotation:
-
1800r/min
-
Max Pressure:
-
21Mpa
-
Type:
-
piston pump
-
Color:
-
blue
-
Standard or Nonstandard:
-
standard
-
Function:
-
Marine Machine, Engineer machine
-
Certification:
-
iso
Quick Details
-
Application:
-
Industrial Utilities, Machining, Marine
-
Pressure:
-
28Mpa
-
Brand Name:
-
RENOWELL
-
Model Number:
-
PVB5 PVB10 PVB15 PVB20 PVB29
-
Place of Origin:
-
Jiangsu, China
-
max rotation:
-
1800r/min
-
Max Pressure:
-
21Mpa
-
Type:
-
piston pump
-
Color:
-
blue
-
Standard or Nonstandard:
-
standard
-
Function:
-
Marine Machine, Engineer machine
-
Certification:
-
iso

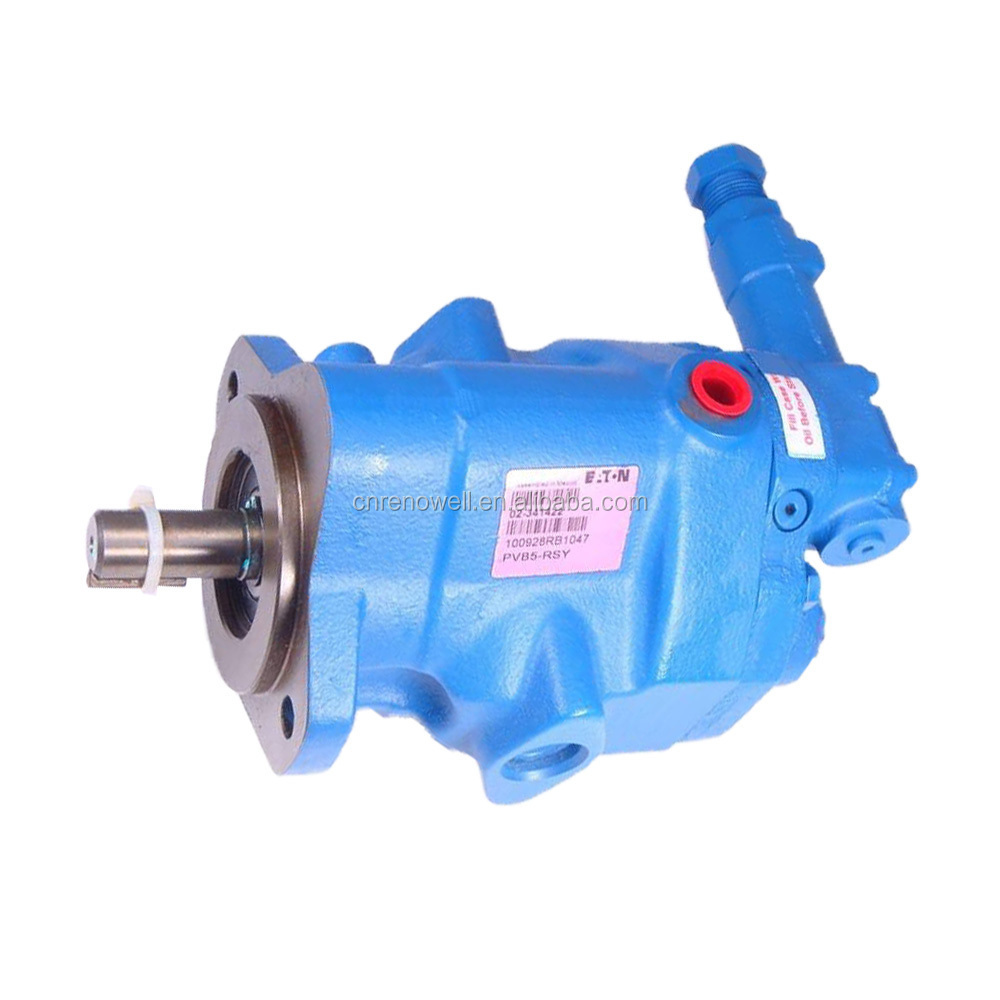

Eaton vicker PVB axial piston pump PVB5 PVB6 PVB10 PVB15 PVB20 PVB29 replacement hydraulic pump
|
OEM: PVB
|
Structure: Piston pump
|
Quality: Replacement
|
|
Drive: Motor
|
Application: industry machinery
|
Material: Iron steel
|
|
Features: Less noise
|
Guaruntee: 1 year
|
Package: Netural
|
|
Fuild: Oil
|
Delivery time: In stock
|
Power: Hydraulic
|
PRODUCT SPECIFICATIONS
|
Model
|
|
|
|
|
Input
|
|
|
Geometric
|
Out flow
|
Speed
|
Pressure
|
KW
|
|
|
displ.
|
LPM
|
rpm
|
bar
|
[hp]
|
|
|
cm9/r
|
[gpm]
|
|
[psi]
|
◎high
|
|
|
[in3/rev]
|
@rpm
|
|
|
pressure
|
|
PVB5
|
10.55
|
18,9
|
1800
|
210
|
13
|
|
PVB6
|
13.81
|
22.7
|
1800
|
140
|
26.1
|
|
PVB10
|
21,1
|
37,5
|
1800
|
210
|
29.4
|
|
PVB15
|
33,0
|
59.4
|
1800
|
141
|
29.4
|
|
PVB20
|
42.8
|
75.7
|
1800
|
210
|
29.4
|
|
PVB29
|
61.6
|
109,7
|
1800
|
140
|
29.4
|
|
PVB45
|
94,5
|
170.3
|
1800
|
210
|
29.4
|
PVB5 RSY 40 C 12 PVB5 RSY 40 CM 12 PVB5 RSY 40 CG 30 PVB5 RSY 40 CC 12
PVB5 RSY 40 C 12 PVB5 RSY 21 C 11 PVB5 RSXY 40 C 12 PVB5 RSWY 40 C 12
PVB5 RDY 21 M 10 PVB5 RDY 21 H 10 PVB5 LSY 40 CM 12
PVB5 LSY 40 CG 30 PVB5 LSY 40 CC 12 PVB5 LSY 40 C 12
PVB5 LSY 21 C 11 PVB5 FRSY 40 CC 12 PVB5 FRSXY 40 CM 12
PVB6 RSY 40 CC 12 PVB6 RSY 40 C 12
PVB6 RSXY 40 CM 12 PVB6 RS 40 CM 12
PVB6 RDY 21 M 10 PVB6 LSY 40 CM 12
PVB6 LSY 40 CC 12 PVB6 LSY 40 C 12
PVB6 LSY 21 CM 11 PVB6 LSWY 40 CM 12 PVB6 LDY 21 M 10
PVB10 RSY 41 CVP 13 PVB10 RSY 41 CMC 12 PVB10 RSY 41 CM 12
PVB10 RSY 41 CG 30 PVB10 RSY 41 CC 12 PVB10 RSY 41 C 12 S30 PVB10 RSY 41 C 12
PVB10 RSY 31 CM 11 PVB10 RSY 31 CC 11 PVB10 RSY 31 C 11 PVB10 RSXY 41 CM 12
PVB10 RSXY 41 C 12 PVB10 RSWY 41 CM 12 PVB10 RS 41 C 12 S124 PVB10 RDY 31 M 10
PVB10 RDY 31 H 10 PVB10 LSY 41 CVP 13 PVB10 LSY 41 CM 12 PVB10 LSY 41 C 12
PVB10 LSY 31 CM 11 PVB10 LSY 31 CC 11 PVB10 LSY 31 C 11
PVB10 LDY 31 M 10 PVB10 FRSY 41 C 12
PVB15 RSY 41 CM 12 PVB15 RSY 41 CG 30 PVB15 RSY 41 CC 12 PVB15 RSY 41 C 12
PVB15 RSY 41 C 12 PVB15 RSY 31 CM 11 PVB15 RSY 31 CC 11 PVB15 RSY 31 C 11
PVB15 RSXY 41 CM 12 PVB15 RDY 31 M 10 PVB15 RDY 31 H 10
PVB20 RSFX 20 C 11 PVB20 RS 20 CVP 12 PVB20 RS 20 CMC 11 PVB20 RS 20 CM 11
PVB20 RS 20 CG 20
PVB5 RSY 40 C 12 PVB5 RSY 21 C 11 PVB5 RSXY 40 C 12 PVB5 RSWY 40 C 12
PVB5 RDY 21 M 10 PVB5 RDY 21 H 10 PVB5 LSY 40 CM 12
PVB5 LSY 40 CG 30 PVB5 LSY 40 CC 12 PVB5 LSY 40 C 12
PVB5 LSY 21 C 11 PVB5 FRSY 40 CC 12 PVB5 FRSXY 40 CM 12
PVB6 RSY 40 CC 12 PVB6 RSY 40 C 12
PVB6 RSXY 40 CM 12 PVB6 RS 40 CM 12
PVB6 RDY 21 M 10 PVB6 LSY 40 CM 12
PVB6 LSY 40 CC 12 PVB6 LSY 40 C 12
PVB6 LSY 21 CM 11 PVB6 LSWY 40 CM 12 PVB6 LDY 21 M 10
PVB10 RSY 41 CVP 13 PVB10 RSY 41 CMC 12 PVB10 RSY 41 CM 12
PVB10 RSY 41 CG 30 PVB10 RSY 41 CC 12 PVB10 RSY 41 C 12 S30 PVB10 RSY 41 C 12
PVB10 RSY 31 CM 11 PVB10 RSY 31 CC 11 PVB10 RSY 31 C 11 PVB10 RSXY 41 CM 12
PVB10 RSXY 41 C 12 PVB10 RSWY 41 CM 12 PVB10 RS 41 C 12 S124 PVB10 RDY 31 M 10
PVB10 RDY 31 H 10 PVB10 LSY 41 CVP 13 PVB10 LSY 41 CM 12 PVB10 LSY 41 C 12
PVB10 LSY 31 CM 11 PVB10 LSY 31 CC 11 PVB10 LSY 31 C 11
PVB10 LDY 31 M 10 PVB10 FRSY 41 C 12
PVB15 RSY 41 CM 12 PVB15 RSY 41 CG 30 PVB15 RSY 41 CC 12 PVB15 RSY 41 C 12
PVB15 RSY 41 C 12 PVB15 RSY 31 CM 11 PVB15 RSY 31 CC 11 PVB15 RSY 31 C 11
PVB15 RSXY 41 CM 12 PVB15 RDY 31 M 10 PVB15 RDY 31 H 10
PVB20 RSFX 20 C 11 PVB20 RS 20 CVP 12 PVB20 RS 20 CMC 11 PVB20 RS 20 CM 11
PVB20 RS 20 CG 20
