Quick Details
-
Product name:
-
heating system motorised valve
-
Connection:
-
BSP, NPT and G thread
-
Working pressure:
-
Max1.0Mpa
-
Certificate:
-
CE, RoHs
-
Voltage:
-
AC24V AC220V
-
Output torque:
-
3.5NM
-
Body material:
-
Brass
-
Working Temperature:
-
-10°C-40°C/14°F-108°F
-
Manual Override:
-
No air compressor electric shut off valve
-
Wiring control mode:
-
3 wires CR02
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Tianjin, China
-
Model Number:
-
CWX-50P
-
Product name:
-
heating system motorised valve
-
Connection:
-
BSP, NPT and G thread
-
Working pressure:
-
Max1.0Mpa
-
Certificate:
-
CE, RoHs
-
Voltage:
-
AC24V AC220V
-
Output torque:
-
3.5NM
-
Body material:
-
Brass
-
Working Temperature:
-
-10°C-40°C/14°F-108°F
-
Manual Override:
-
No air compressor electric shut off valve
-
Wiring control mode:
-
3 wires CR02

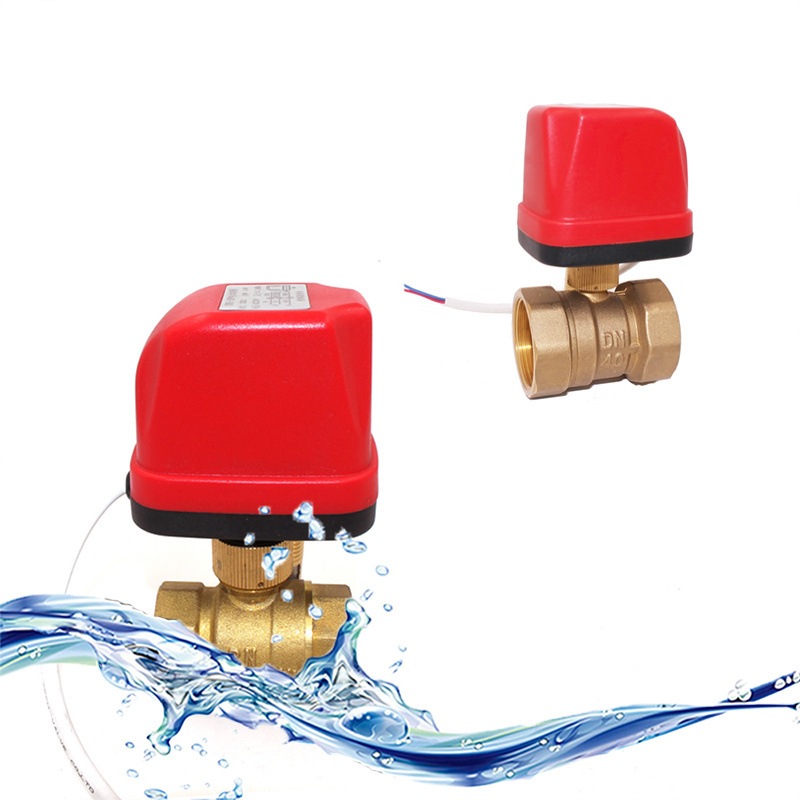

CWX-50P Brass 2 Way Electric Ball Valve for Central Heating System Air Compressor
Data Sheet
| Product model | CWX-50P |
| Output torque | 3.5NM |
| Rated voltage | AC24V AC220V |
| Power | <5W |
| Open/close time | 12S |
| Position Indicator | no |
| Manual override | no |
| Gear Material | POM |
| Working pressure | Max1.6Mpa |
| Valve Material | Brass only |
| fast installation | |
| Valve size | 2way DN15-DN32 |
Schematic & Dimension
Wiring Diagrams
CR02 (three wires two point control) Voltage:DC3-6V/12V/ 9-24V/AC24V/AC220V
1.Connecting SW to OPEN, the valve opens , getting the position ,automatically power off, the valve remain fully open position
2.Disconnecting SW to CLOSE, the valve close , getting the position and automatically power off, the valve remains fully close position
Note:AC24V/AC220V can only be used for CWX-50K series electric valves
CR05 (five wires micro controller with signal feedback) Voltage:DC3-6V/12V/24V
1.Connecting SW and OPEN , the valve opens , getting the position green wire output the OLS signal , the controller test the signal OLS, connect SW to STOP, the valve stops and remains fully open position
2.Connecting SW and CLOSE , the valve close , getting the position red wire output the CLS signal , the controller test the signal CLS, connect SW to STOP, the valve stops and remains fully close position,
Note:Please make sure the signal wires "red","black" and "green" be connected at first,then connect the power wires " yellow" and "blue"
2,000 valves per day will be tested, packaged, rigged and prepared for shipment
Delivered to customers safely with the highest speed, efficient and fast transportation
