Quick Details
-
Brand Name:
-
JP
-
Model Number:
-
PHQ-50
-
Output Power:
-
0.75KW Frequency conversion
-
Length:
-
1100mm
-
Width:
-
950mm
-
Height:
-
1350mm
-
Gross Weight:
-
450kg
-
Number of Packing:
-
2 pcs
-
Delivery time:
-
within 20 days
-
Power Supply:
-
380V or Custom
-
site:
-
www.jp-balancer.com
-
Item:
-
Crank Shaft Balancing Machine
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
JP
-
Model Number:
-
PHQ-50
-
Output Power:
-
0.75KW Frequency conversion
-
Length:
-
1100mm
-
Width:
-
950mm
-
Height:
-
1350mm
-
Gross Weight:
-
450kg
-
Number of Packing:
-
2 pcs
-
Delivery time:
-
within 20 days
-
Power Supply:
-
380V or Custom
-
site:
-
www.jp-balancer.com
-
Item:
-
Crank Shaft Balancing Machine

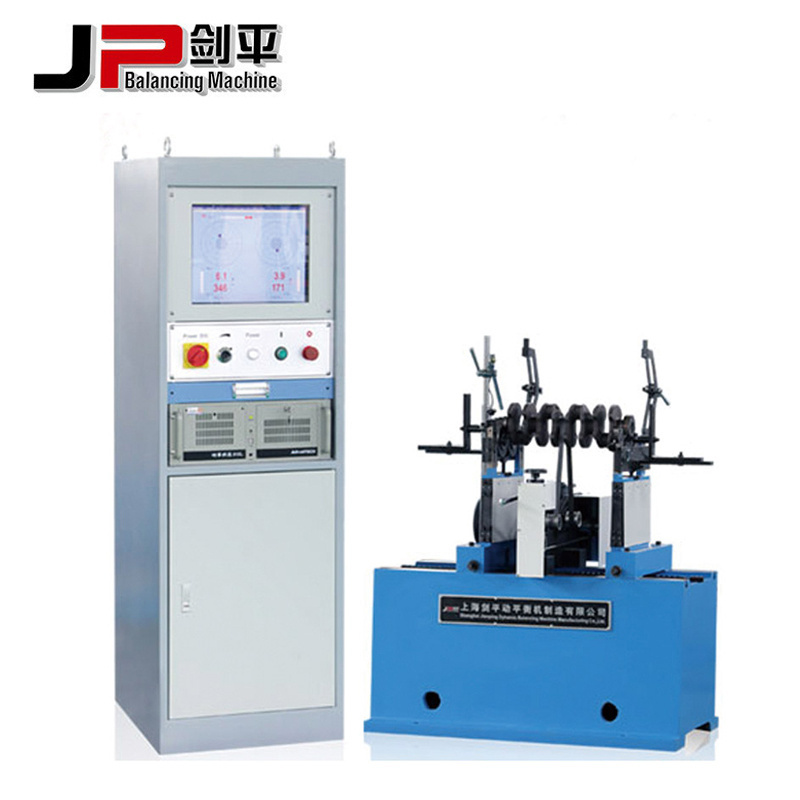

JP Ships Camshaft Grinding Crank Shaft Balancing Machine
Production Description
• Specially designed brackets transmit mechanical force with low vibration damping
and high rigidity
• Durable and reliable sensor possesses good linearity
• Permanent calibration brings high accuracy with a permission of large initial unbalance amount
• Belt-driving offers higher precision and easier operation
• Advanced electrical measuring system and friendly man-machine interface
• Modular design offers a wide range of application
Range of Application
This balancing machine is widely used in balancing rotatable bodies, such as kinds of medium-sized and small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency
Electrical Measuring System (Option)
Production Parameters
|
Technical data at a glance |
PHQ-50 |
|
Max Mass of Workpiece (kg) |
50 |
|
Max Diameter of Workpiece (mm) |
700 |
|
Distance between Two Support Bearings (mm) |
80--700 |
|
Journal Diameter Scope of Workpiece (mm) |
8~80 |
|
Diameter Scope of Driving Belt (mm) |
18~200 |
|
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min) |
700/1050 Stepless speed regulation |
|
Motor Power (kw) |
0.75 Frequency conversion |
|
Min Achievable Residual Unbalance Amount (emar) |
0.5g· mm/kg |
