Quick Details
-
Brand Name:
-
EASUN POWER
-
Model Number:
-
CM3048 30A
-
Work Time (h):
-
/
-
Max PV Power:
-
/
-
Max PV Voltage:
-
48V
-
Maximum Current:
-
30A
-
Battery Voltage:
-
48V
-
Rated Current:
-
30A
-
Application1:
-
charger controller,solar system controller,voltage controller
-
Application2:
-
solar Regulator
-
Low VoltageDisconnection(LVD):
-
42.8V
-
Float Voltage:
-
55.2V
-
Low Voltage Reconnection(LVR):
-
50V
-
No load loss:
-
≤30mA
Quick Details
-
Type:
-
PWM
-
Application:
-
Charger Controller, Collector Controller, Solar Working Station, Lighting Controller, Thermal Controller, Voltage Controller, Solar System Controller, solar Regulator
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EASUN POWER
-
Model Number:
-
CM3048 30A
-
Work Time (h):
-
/
-
Max PV Power:
-
/
-
Max PV Voltage:
-
48V
-
Maximum Current:
-
30A
-
Battery Voltage:
-
48V
-
Rated Current:
-
30A
-
Application1:
-
charger controller,solar system controller,voltage controller
-
Application2:
-
solar Regulator
-
Low VoltageDisconnection(LVD):
-
42.8V
-
Float Voltage:
-
55.2V
-
Low Voltage Reconnection(LVR):
-
50V
-
No load loss:
-
≤30mA

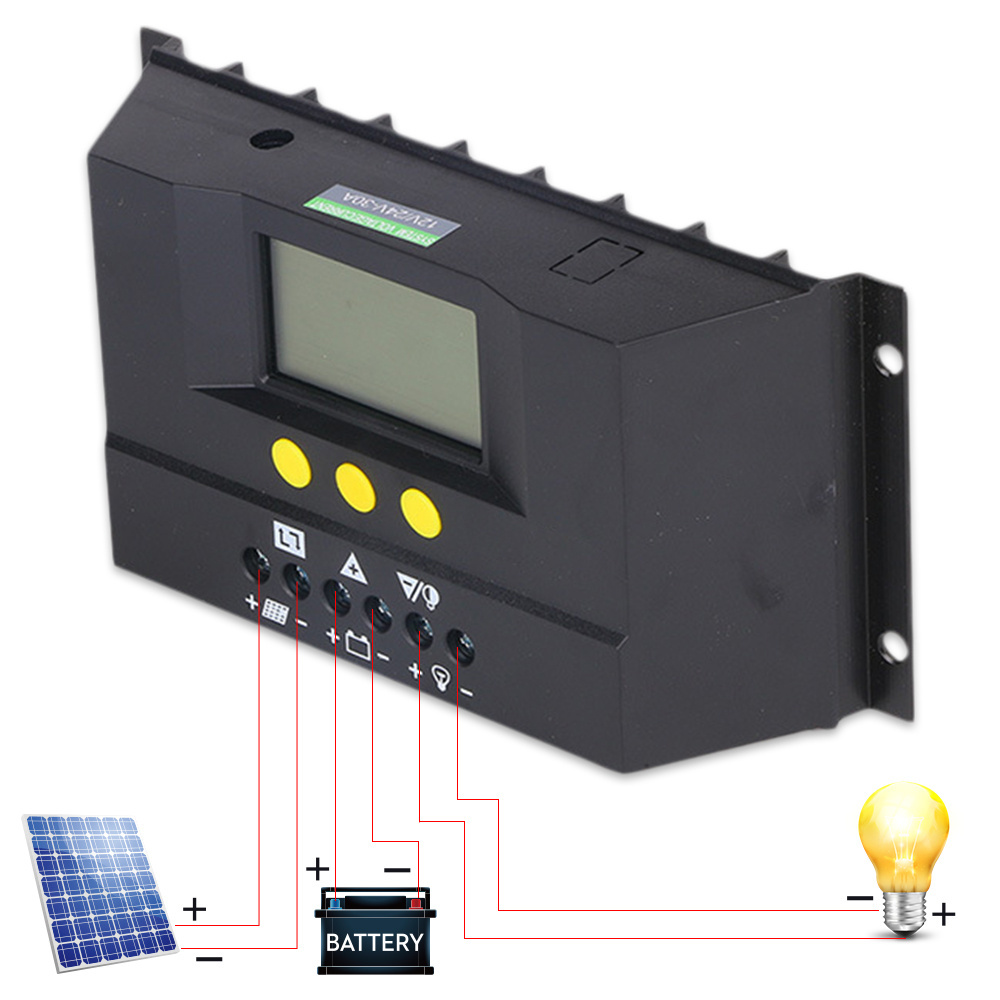

EASUN PWM 30A Solar Panel Controller Regulator Charge Battery Protection 48V Auto Switch for PV System
Specification
| Model |
CM3024
|
CM3048
|
| Rated Current |
30A
|
30A
|
| Rated Voltage |
12V/24V
|
48V
|
| Open Circuit Voltage of Solar Panel |
≤50V
|
≤100V
|
| Low VoltageDisconnection(LVD) |
10.7V/21.4V
|
42.8V
|
| Float Voltage |
13.8V/27.6V
|
55.2V
|
| Low Voltage Reconnection(LVR) |
12.5V/25.0V
|
50.0V
|
| No load loss |
≤30mA
|
|
| Loop Voltage Drop |
≤170mV
|
|
| Insta l ation cable area. |
≤7# AWG (16mm2)
|
|
| Operating Temperature |
-10°C~60°C
|
|
| Storage temperature |
-30°C~70°C
|
|
| Humidity requirements |
≤90%,no condensation
|
|
| Size |
90 mm×188 mm×48 mm
|
|
| Mounting hole spacing |
60 mm×178 mm --Φ5
|
|
| Weight |
360g
|
|
