Quick Details
-
Switch angle:
-
±40℃(±5℃)
-
Operating temperature:
-
0~60℃
-
Storage temperature:
-
-20~80℃
-
Weight:
-
float:300g;counterweight:200g;cable:90g/m(CPE)80g/m(PVC)
-
Volume:
-
498cm^3
-
Materials:
-
float PP;couterweight:ABS
-
Protection:
-
IP68
-
Max workinng pressure:
-
1.2bar(12m water depth)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Contact:
-
SPDT,10A/250VAC
-
Electrical life:
-
>10^6
-
Switch angle:
-
±40℃(±5℃)
-
Operating temperature:
-
0~60℃
-
Storage temperature:
-
-20~80℃
-
Weight:
-
float:300g;counterweight:200g;cable:90g/m(CPE)80g/m(PVC)
-
Volume:
-
498cm^3
-
Materials:
-
float PP;couterweight:ABS
-
Protection:
-
IP68
-
Max workinng pressure:
-
1.2bar(12m water depth)

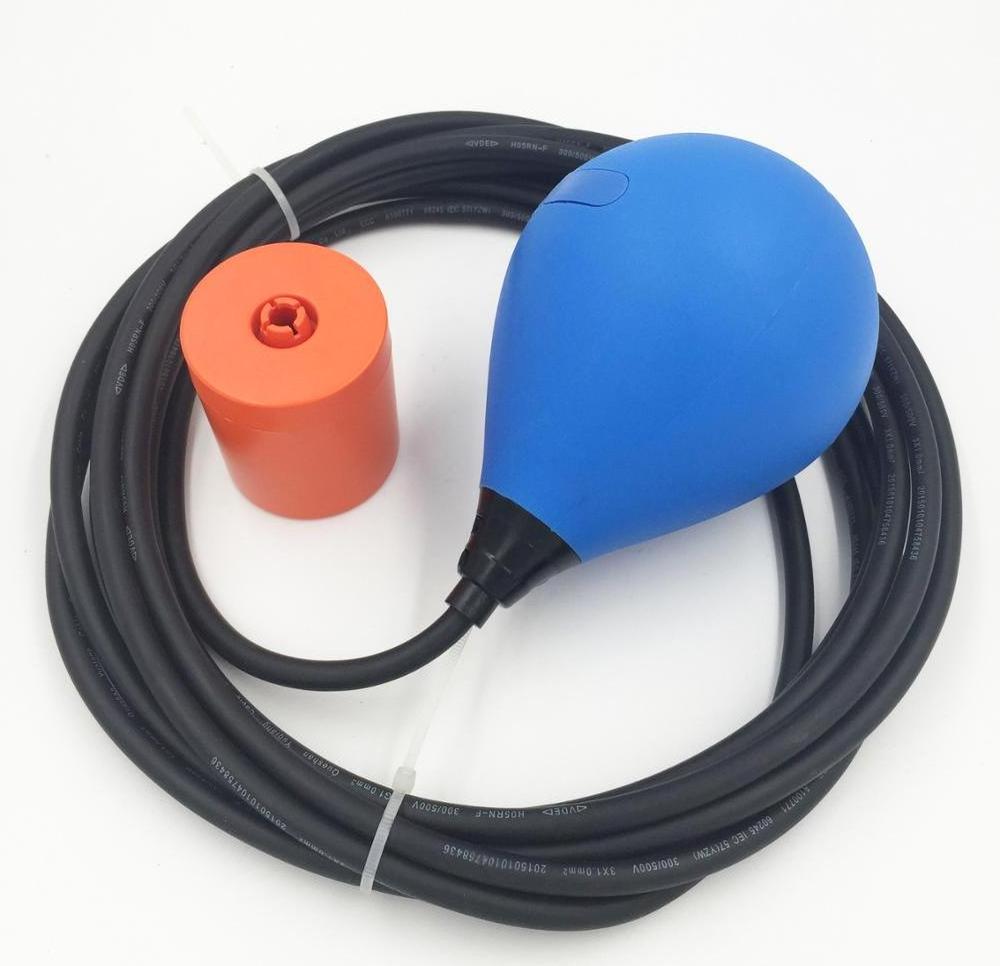

LS Cable Float Level Switch
Applications & Features
1.LS level regulator is a float switch to control the pump,valve or alarm.
2.Applied to various kinds of liquid (non-corrosive, hightemperature, light density or turbulence)
3.Special designed multi layers structure proves the innerchamber very well sealed, gives safe and reliable protection for inside mechanism
4.Non-toxic polypropylene(PP) float body and CPE(VDE)cable, environmental friendly, even for daily life water
5.The ball shape has no any edges, is particularly suitablefor sewage wate
Specifications
Contact: SPDT, 10A/250VAC
Electrical life: >106 cycles
Switch angle: ±40° (±5°)
Cable type and approvals:
| Cable type | VDE Approval | CCC Approval |
| PVC Cable | H05VV-F3G1.0 | RVV3x1.0 |
| CPE(Rubber)Cable | H05RN-F3G1.0 | YZW3x1.0 |
Operating temperature: 0~60°C
Storage temperature: -20~80°C
Weight: float: 300g; counterweight: 200g; cable: 90g/m
(CPE), 80g/m (PVC)
Volume: 498cm3
Materials: float PP; counterweight: ABS
Protection: IP68
Max working pressure: 1.2 bar (12m water depth)
Approval: CE
Typical applications
Note: Carton package has 14 pcs/carton for 3/5m and 10 pcs/carton for 10/15m.
|
Sample Order |
Order |
OEM Order |
| Three work days | 2 weeks | 3 weeks |
Port
Shenzhen, Hong Kong
