Quick Details
-
Dimension(L*W*H):
-
Depends on Boiler Capacity
-
Weight:
-
Depends on Boiler Capacity
-
Product name:
-
Gas/oil Fired Steam Boiler
-
Material:
-
Special Boiler Steel Plate
-
Steam Capacity:
-
1-20 Ton/h
-
Efficiency:
-
98%
-
Available fuel:
-
Natrual Gas,oil ,diesel
-
Control system:
-
PLC+Touch Screen
-
Feature:
-
High Efficiency Low Cost
-
Burner brand:
-
Riello/oilon
-
Installation Method:
-
Quick-assembly
-
Manufacturer:
-
WUXI ZOZEN BOILERS
Quick Details
-
Core Components:
-
fire tube
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ZOZEN
-
Dimension(L*W*H):
-
Depends on Boiler Capacity
-
Weight:
-
Depends on Boiler Capacity
-
Product name:
-
Gas/oil Fired Steam Boiler
-
Material:
-
Special Boiler Steel Plate
-
Steam Capacity:
-
1-20 Ton/h
-
Efficiency:
-
98%
-
Available fuel:
-
Natrual Gas,oil ,diesel
-
Control system:
-
PLC+Touch Screen
-
Feature:
-
High Efficiency Low Cost
-
Burner brand:
-
Riello/oilon
-
Installation Method:
-
Quick-assembly
-
Manufacturer:
-
WUXI ZOZEN BOILERS
Product Description

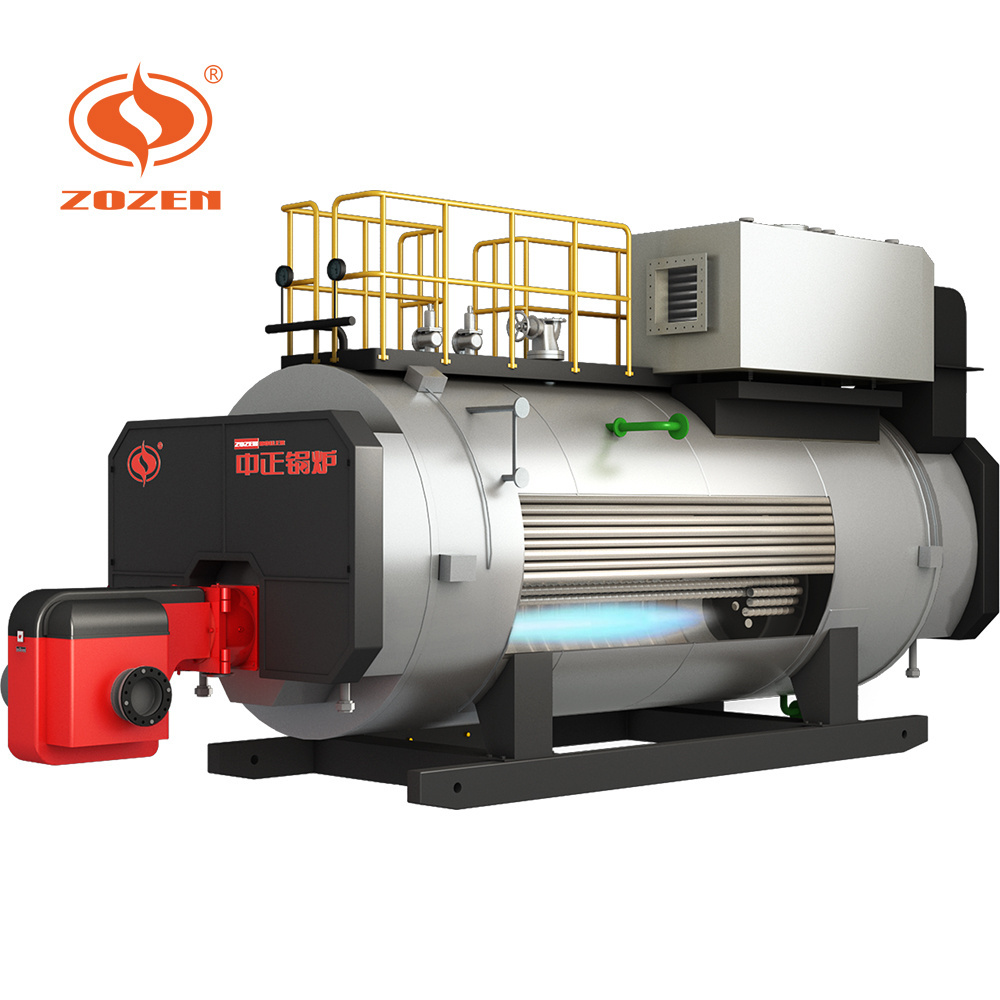

Advantage of ZOZEN 10 Ton Oil Gas Fired Boiler
1.
High efficiency:
With a thermal efficiency of up to 98%, this boiler can help you save on energy costs.
2.
Low emissions:
The boiler meets strict environmental standards and has low NOx emissions.
3.
Easy maintenance:
The boiler is designed for easy access and maintenance, reducing downtime and costs.
4.
Safe and reliable:
The boiler is equipped with advanced safety features and has a long service life.
5.
Wide range of applications
:
The boiler can be used for food, textile, chemical, feed industry and etc.
WNS series horizontal internal combustion boiler is a boiler shell type 3 passes wetback oil/gas fired boiler. After fuel is being atomized by burner, flame is full of the wave furnace and transfer heat via furnace wall, this is 1st pass; the high temperature smoke is collected in reversal chamber and then enters 2nd pass which is grooved tubes bundle area; after heat convection, air temperature gradually falls and goes to front smoke box and turn to 3rd pass, which is smooth tubes bundle area, and then enters chimney passing back smoke box and exhausted to the atmosphere.
Specification
|
Model
|
Rated evaporation
|
Rated working pressure
|
Feed water temperature
|
Maximum transport size
|
|
WNS10-1.25-Q(Y)
|
10 t/h
|
1.25MPa
|
194℃
|
7.65×2.80×3.25
|
|
WNS10-1.6-Q(Y)
|
|
1.6MPa
|
204℃
|
|
