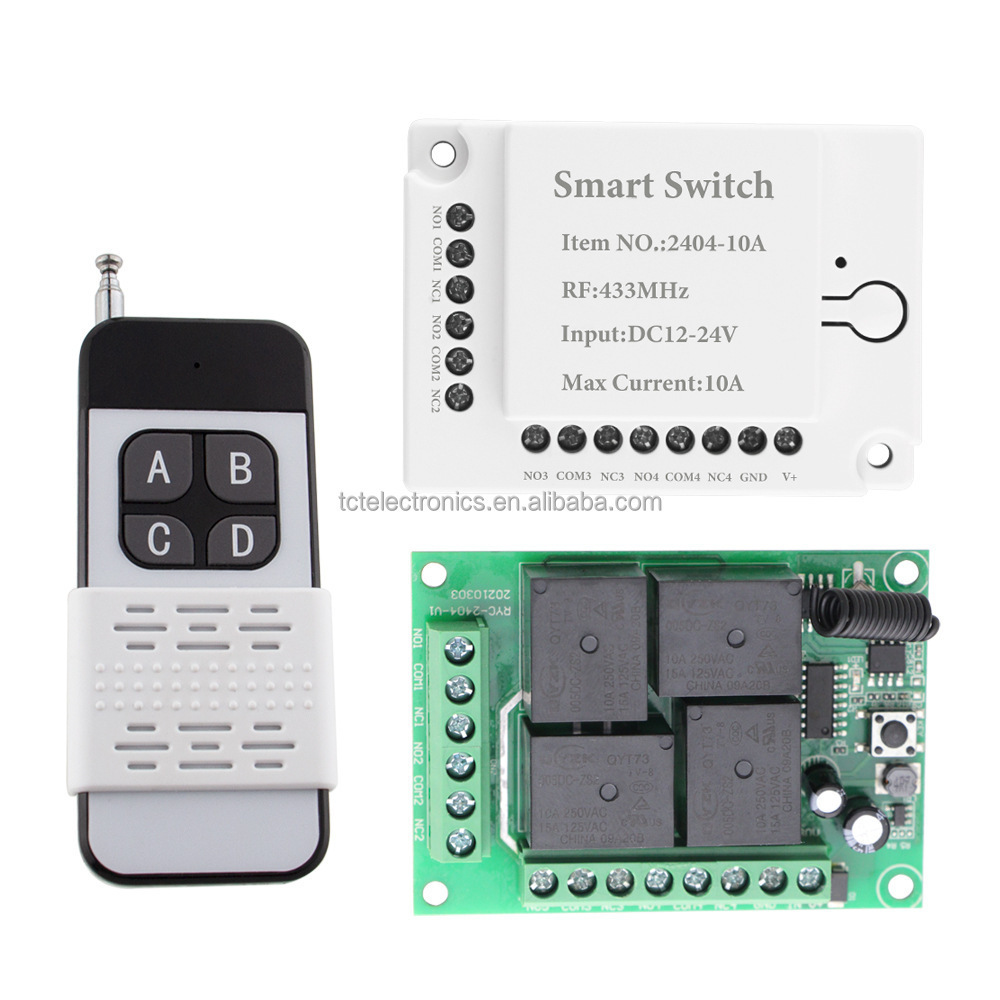

Quick Details
-
Model Number:
-
Wireless remote control switch, Smart Switch Module
-
Function:
-
Home Light Remote Switch
-
Application:
-
Smart Home Appliance
-
Color:
-
Customized Colours
-
Keyword:
-
Home Automation Control System
-
Type:
-
Private Model
-
Mode:
-
Wireless remote control switch
Quick Details
-
Customized support:
-
yes
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
tct electronics, OEM
-
Model Number:
-
Wireless remote control switch, Smart Switch Module
-
Function:
-
Home Light Remote Switch
-
Application:
-
Smart Home Appliance
-
Color:
-
Customized Colours
-
Keyword:
-
Home Automation Control System
-
Type:
-
Private Model
-
Mode:
-
Wireless remote control switch
Product Description
Specification
|
item
|
value
|
|
Network
|
wifi
|
|
Customized support
|
yes
|
|
Whether the smart
|
Yes
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
tct electronics
|
|
Model Number
|
Wireless remote control switch
|
|
Model Number
|
Smart Switch Module
|
|
Brand Name
|
OEM
|
|
Function
|
Home Light Remote Switch
|
|
Application
|
Smart Home Appliance
|
|
Color
|
Customized Colours
|
|
Keyword
|
Home Automation Control System
|
|
Type
|
Private Model
|
|
Mode
|
Wireless remote control switch
|
Packing & Delivery
Operating instructions:
1. Point learning method: Press the code matching button on the control board once, and the LED indicator light will flash three times. After the LED indicator light goes out, press any button on the remote control that needs to match the code, and the LED indicator light on the control board will flash three times continuously to successfully match the code.
Jogging function description: Press the remote control button to activate the corresponding relay. Release the remote control button and the corresponding relay will disconnect.
2. Self locking learning method: Press the control board pairing button twice in a row, and the LED indicator light will flash three times. After the LED indicator light goes out, press any button on the remote control that needs pairing, and the control board LED indicator light will flash three times in a row, successfully pairing.
Self locking function description: Press the remote control button once to activate the corresponding relay, and then press the current remote control button to disconnect the relay.
3. Interlocking learning method: Press the control board pairing button three times in a row, and the LED indicator light will flash three times. After the LED indicator light goes out, press any button on the remote control that needs pairing. The control board LED indicator light will flash three times in a row, and pairing is successful.
Interlock function description: Press button A on the remote control once, the corresponding relay will be engaged and the second relay will be disconnected. Press button B on the remote control once, the second relay will be engaged and the first relay will be disconnected.
4. Two way jog and two way self-locking learning method: Press the control board code matching button 4 times continuously, and the LED indicator light will flash 3 times. After the LED indicator light goes out, press any button on the remote control that needs to match the code, and the control board LED indicator light will flash 3 times continuously to successfully match the code.
Two way jog and two way self-locking function description: Press the A or B button on the remote control to activate the corresponding relay, release the corresponding relay to disconnect, press the C or D button on the remote control to activate the corresponding relay, and then press the C or D button on the remote control to disconnect the corresponding relay.
5. Two way jog and two way interlock learning method: Press the control board code matching button 5 times continuously, and the LED indicator light will flash 3 times. After the LED indicator light goes out, press any button on the remote control that needs to match the code, and the control board LED indicator light will flash 3 times continuously to successfully match the code.
Two way jog and two way interlock function description: Press the A or B button on the remote control to activate the corresponding relay, release the corresponding relay to disconnect, press the C button on the remote control, activate the corresponding relay for C, and disconnect the corresponding relay for D. Press the D button on the remote control again, and the corresponding relay for D will be engaged, while the corresponding relay for C will be disconnected.
6. Two way self-locking and two way interlocking learning method: Press the control board code matching button 6 times continuously, and the LED indicator light will flash 3 times. After the LED indicator light goes out, press any button on the remote control that needs to match the code, and the control board LED indicator light will flash 3 times continuously to successfully match the code.
Two way self-locking and two way interlocking function description: Press the A or B button on the remote control once to activate the corresponding relay, and then press the A or B button on the remote control again to disconnect the corresponding relay. Press the C button on the remote control, C corresponds to the relay being engaged, and D corresponds to the relay being disconnected. Press the D button on the remote control again, and the corresponding relay for D will be engaged, while the corresponding relay for C will be disconnected.
7. Two sets of two-way interlocking learning methods: Press the control board code matching button 7 times, and the LED indicator light will flash 3 times. After the LED indicator light goes out, press any button on the remote control that needs to match the code, and the control board LED indicator light will flash 3 times continuously to successfully match the code.
Two sets of two-way interlocking function instructions: Press button A on the remote control, A corresponds to the relay being engaged, and B corresponds to the relay being disconnected. Press button B on the remote control again, B corresponds to the relay being engaged, and A corresponds to the relay being disconnected. Press the C button on the remote control, C corresponds to the relay being engaged, and D corresponds to the relay being disconnected. Press the D button on the remote control again, and the corresponding relay for D will be engaged, while the corresponding relay for C will be disconnected.
8. Clear code function: Press the control board's code matching button 8 times in a row, and the LED indicator light will flash 4 times. At this time, the LED indicator light will automatically flash 4 times in a row, completing the code clearing and clearing all previously learned remote control key codes.
