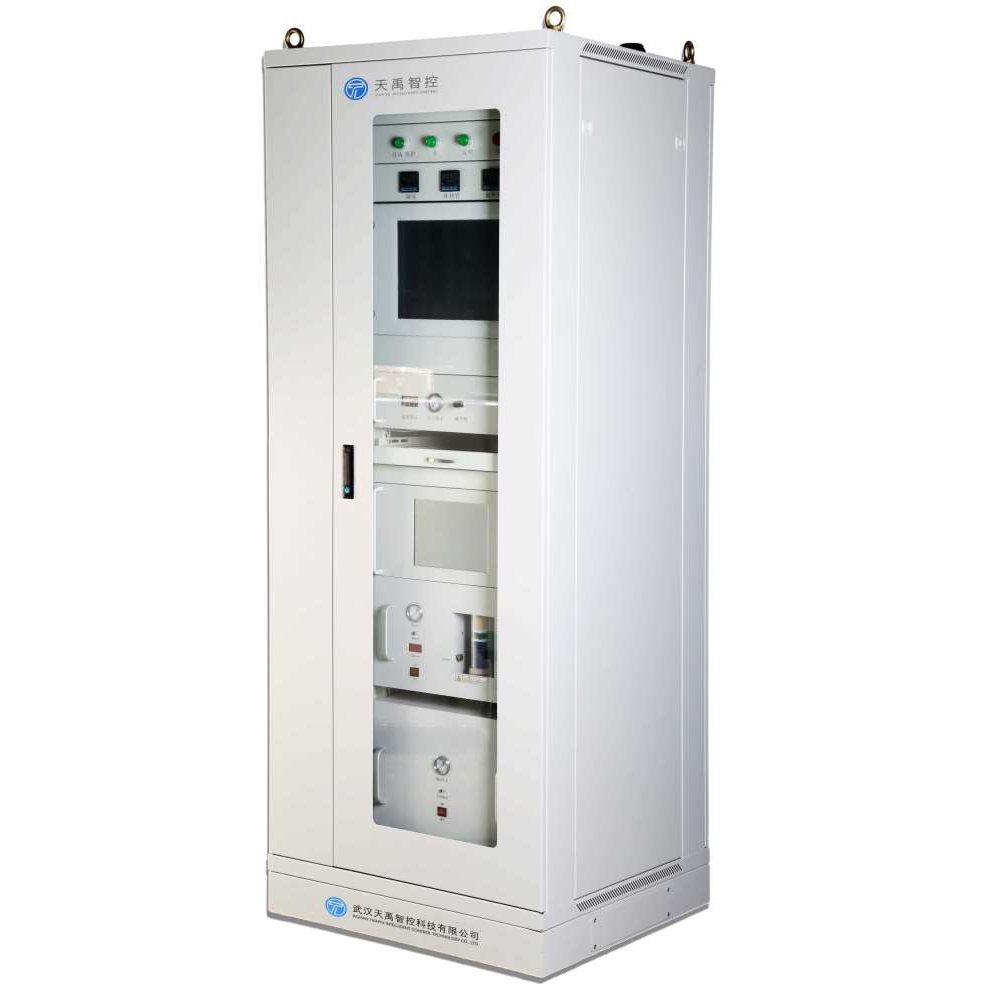

Online Gas Analyzer Continuous Emission Monitoring System CEMS H2 CO CO2 CH4 CnHm
Products Description
CEMS system is customizable, we have different types with different configuration to meet client's various requirements, below Clients Reference for you to check :
Steel Blast Furnace Gas Monitoring
Blue Carbon Exhaust Gas Monitoring
Gasification Project of Straw Gasification Combined Heat Power and Carbon
Coke Oven Gas Project
Technical Parameter
Online Gas Analyzer Continuous Emission Monitoring System CEMS H2 CO CO2 CH4 CnHm
The online gas analysis system is mainly used for industrial boilers, power plant boilers, industrial furnaces emissions monitoring, CO, CO2, NO, NO2, SO2, O2, etc dynamic continuous monitoring, simultaneous to measure gas flow, oxygen content, gas pressure, gas temperature, gas humidity etc, automatically recording the total pollutant emissions volume and emission time.
It consists of 3 parts: sampling unit, pre-treatment unit, and analysis unit.
It is controlled by PLC program, and complete the operations such as sampling, back-blowing, and fault handling automatically, which greatly reduce the manual load and ensure long-term stability, accuracy, and continuous automatic online operation of the system.
|
Sampling Unit
|
Pre-treatment Unit
|
|
● Sampling probe:
heating temperature 120℃,
filtration precision 5um,
stainless steel filter element
● Sampling heating tube:
heating temperature 100℃,
material PTFE,
30 meters standard
|
● Analysis cabinet: 1600*800*600
● Primary filter: 5um
● Electronic condenser: TY-EC01
● Precision filter: 0.1um
● Peristaltic pump: TY-RD01
● Humidity alarm: TY-SD01
● Circuit control: Siemens PLC, switching power supply, air switch, etc.
● Solenoid valve: Two-way solenoid valve
● Sampling pump: P1.1
● Flowmeter: 10L/min
|
|
Analysis Unit
|
Spare Parts
|
|
● Online infrared analyzer (CO,CO2)
● Online UV Analyzer (SO2, NOx, O2)
● NOx converter
● Temperature / pressure / flow meter
● Humidity meter
● Dust meter (optional)
|
● Gas-water separator filter element: stainless steel
● Sintered TF4000 filter element
● Precision filter element: JFF075-0.1G
● PTFE tube 6mm, 5 meters
● PTFE tube 8mm, 2 meters
|
Connection :
|
Applicable Working Conditions
|
|
|
|
Sampling Distance
|
≤ 30m
|
|
|
Sample Gas Dust
|
≤ 200mg/m3
|
|
|
Sample Gas Pressure
|
-10KPa ~ 20KPa
|
|
|
Sample Gas Temperature
|
≤ 600℃
|
|
|
Sampling Point
|
Denitrification device inlet and outlet pipeline
|
|
|
Working Condition
|
|
|
|
Relative Humidity
|
≤ 85%RH
|
|
|
Power Supply
|
AC220V 50Hz 3kVA
|
|
|
Power Cable
|
RVV3 * 4mm2
|
|
|
Signal Cable
|
RVVP4 * 0.75mm2
|
|
|
Ambient Air Pressure
|
the altitude is less than 2500m
|
|
|
Air Velocity
|
≤ 0.5m/s
|
|
|
Work Location
|
Horizontally
|
|
|
Installation Location
|
Indoor placement
|
|
|
Analysis Cabin
|
1600*800*600mm, the equipment is installed in the analysis cabin, equipped with gas detection alarm, ventilation and
lighting equipment |
|
|
Other Requirements
|
1. No direct sunlight
2. No strong electromagnetic field interference
3. No mechanical vibration
4. Need pressure 0.5～1Mpa, 1.5Nm3/h, clean compressed air or Nitrogen for probe back-blowing
|
|
1)
Cabinet
: adopt a standard 19-inch cabinet with a size of 1600*800*600 and use 2mm stainless steel plates.
2)
Control system
: Siemens PLC is used with an integrated touch screen, which can freely set the sampling back-blowing and drainage time to realize the automatic operation of the system.
3)
Air pump
: Imported KNF sampling pump is used, and the sample gas extraction volume is less than 6L/min, which can run stably for a long time to ensure the response time of the system.
4)
Dust removal
: The sample gas passes through a two-stage filter, and the filtration accuracy can reach 0.1um, which meets the requirements of the gas analyzer to ensure the stable operation of the analyzer.
5)
Dewatering
: After the liquid water in the sample gas is separated by the gas-water separator, the sample gas enters the electronic condenser to quickly remove the gaseous water in the sample gas, and use a solenoid valve to drain water regularly to ensure the dehydration effect.
