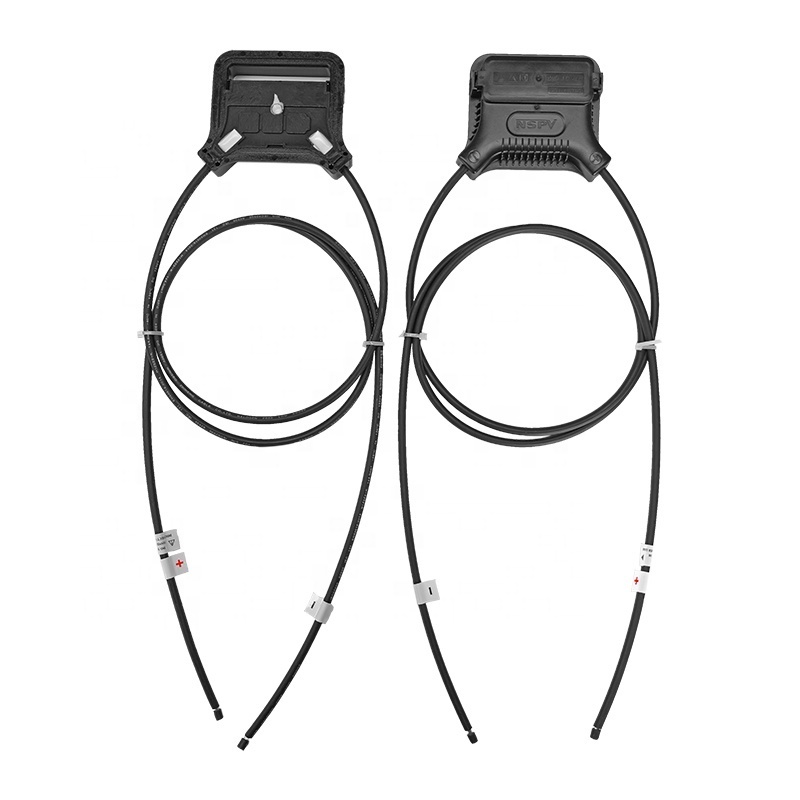

Quick Details
-
Brand Name:
-
NSPV
-
Model Number:
-
PV-BN082TA-2
-
External Size:
-
-
-
Test voltage:
-
8kV(50Hz,Imin)
-
Pin Dimensions:
-
3.0/4.0mm
-
Suitable cable:
-
2.5-6mm2 (14-10AWG)
-
Contact restance:
-
≤ 0.25mΩ
-
Insulation material:
-
PPE/PA
-
Contact material:
-
Copper, tin plated
-
Degree of protection:
-
IP67
-
Flame class:
-
UL94-V0
-
Ribbons size(mm):
-
6(W)*0.2-0.4(T)
-
Used:
-
Solar modules
Quick Details
-
Protection Level:
-
IP67
-
Type:
-
Junction Box
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NSPV
-
Model Number:
-
PV-BN082TA-2
-
External Size:
-
-
-
Test voltage:
-
8kV(50Hz,Imin)
-
Pin Dimensions:
-
3.0/4.0mm
-
Suitable cable:
-
2.5-6mm2 (14-10AWG)
-
Contact restance:
-
≤ 0.25mΩ
-
Insulation material:
-
PPE/PA
-
Contact material:
-
Copper, tin plated
-
Degree of protection:
-
IP67
-
Flame class:
-
UL94-V0
-
Ribbons size(mm):
-
6(W)*0.2-0.4(T)
-
Used:
-
Solar modules
Specifications and Advantages
| BOX Material | PPE/PA | Flame Class | UL94-V0 |
| Rated current | 14A(Diode 25A) | Ambient temperature range | -40℃…+85℃(IEC) |
| Rated voltage | 1500VDC | Suitable cable cross sections | 2.5-6mm2 (14-10AWG) |
| Test voltage | 8kV(50Hz,Imin) | Diode Number | Each 1PC |
| Typical contact resistance | ≤ 0.25mΩ | Upper limiting temperature | 110℃(IEC) |
| Contact material | Copper, tin plated | Range of cable gland(mm) | O.D.:4.8-6.2 |
| Degree of protection | IP67 | Ribbons size(mm) | 6(W)*0.2-0.4(T) |
| Safety degree | II | Connection of bus ribbons | Clamp |
NewSun PV Technology Co., Ltd(NSPV) is a company with modernization management,which provide key one-step solution with design , research and development , mass production and sales.The project of our company is divided into two major parts:Firstly,the design,integration
, installation and maintenance of PV solar power station , as well as photovoltaic engineering procurement and construction(EPC) . Secondly, the development , production and sales of components and parts for PV solar system.
Our products include photovoltaic system connection, system control, system protection, system optimi-zation, etc.,which are in line with TUV, CE and other relevant standards . The field involves photovoltaic system application, wind and solar energy complementary, micro-grid integration and others . " Exploration and innovation,quality,honesty and pragmatism , win-win cooperation , social responsibility " is the consistent spirit for NSPV people .
Offer high quality , economical cost , safe solution and reliable technology with optimization in energy conservation and environmental protection is the solid goal for photovoltaic component manufacturers and system installers include NSPV .
We will continuously make contribution to " Green energy" and " Environmental protection" for establishing humans better tomorrow.
