Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
4200mm*1700mm*2000mm
-
Weight:
-
3500 kg
-
Name:
-

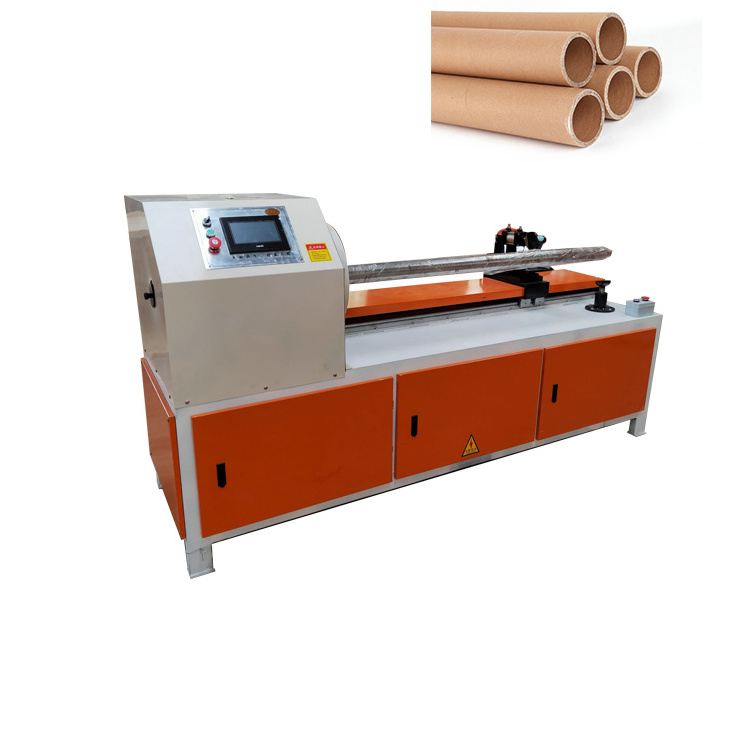

Paper Tube Making Machine
-
Finished Products:
-
Paper core
-
Function:
-
paper tube forming
Quick Details
-
Production Capacity:
-
30m/min
-
Place of Origin:
-
China
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
4200mm*1700mm*2000mm
-
Weight:
-
3500 kg
-
Name:
-
Paper Tube Making Machine
-
Finished Products:
-
Paper core
-
Function:
-
paper tube forming
Product Description
The paper tube produced by the paper tube machine is used in various industries, such as chemical fiber industry tube, film industry tube, printing industry tube, paper industry tube, leather industry tube, food packaging tube, construction industry tube, exhibition industry Use tubes and so on. There are also many types of paper tube machines. The most common paper tube machines are spiral paper tube machines and flat roll paper tube machines.
Features:
1. The main body is made of thick and heavy steel plate after CNC cutting and welding, the frame is stable and not easy to deform, and the vibration is small.
2. The main drive adopts hard-toothed full oil bath gear for speed reduction, low noise, low heat generation, high speed and large torque.
3. The main motor adopts vector type high torque frequency converter for speed regulation.
4. Equipped with hydraulic belt tensioning device, belt tension sensor, and belt angle sensor, which can automatically adjust the belt tension and angle.
5. Equipped with a CNC synchronous follow-up shear system, and the cutting table is driven by a precision ball screw and a high-performance servo motor.
6. Equipped with pulse fixed-length control and feed-forward compensation function to ensure the same cutting length under different host operating speeds.
7. Double PLC control system is adopted, IO output control and functional operation are controlled separately, which improves the cutting response speed, and the cutting length control is more accurate than before.
8. Equipped with a new type of operation panel and large-size color touch screen man-machine interface operation.
9. With multifunctional bottom paper supply device, automatic shutdown function for paper break.
10. Equipped with an integrated linkage device for the integral paper feeder, glue feeder, and paper guide, with full electric adjustment.
11. Modular electrical layout design makes it more convenient and scientific to use, maintain and repair.
12. Optional network module, used for multiple devices or pipeline network operation, can also use remote monitoring and maintenance, MODBUS TCP protocol.
13. Optional eccentric shaft paper tape tension device or air pressure type paper tape tension device.
Specification
|
Number of winding paper layers
|
3-16 layers
|
|
Maximum coil diameter
|
200mm
|
|
Minimum coil diameter
|
20mm
|
|
Maximum coil thickness
|
10mm
|
|
Minimum coil thickness
|
0.5mm
|
|
Fixing method of core mold
|
Flange tightening
|
|
Winding head
|
Four-head single belt
|
|
Cutting method
|
Single round knife cutting without resistance
|
|
Gluing method
|
Double-sided glue
|
|
Fixed length method
|
Encoder (optional for photoelectric positioning)
|
|
Number of operators
|
1-2 people
|
|
Roll out paper tube speed
|
3-20m/min
|
|
Speed control
|
Frequency converter
|
|
Power
|
380v
|
|
Machine size
|
4200mm*1700mm*2000mm
|
|
Land area
|
18000mm*6000mm
|
|
Rim diameter
|
215mm
|
|
Rim height
|
200mm/350mm
|
|
Minimum track
|
750mm
|
|
Maximum track
|
950mm
|
|
Weight
|
3500kg
|
Packing and Shipping
Packaging:
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
