Quick Details
-
Model Number:
-
J
-
Product name:
-
Thermocouple Sensor
-
Name:
-
Thermometer Probe
-
Type:
-
J
-
Material:
-
Iron-constantan
-
Temp range:
-
0~500℃
-
Prode diameter:
-
2-25mm
-
wire Length:
-
300-3000mm
-
Probe length:
-
20-200mm
-
Feature:
-
Quick Response
-
Function:
-
Function
Quick Details
-
Warranty:
-
6 months
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
topright
-
Model Number:
-
J
-
Product name:
-
Thermocouple Sensor
-
Name:
-
Thermometer Probe
-
Type:
-
J
-
Material:
-
Iron-constantan
-
Temp range:
-
0~500℃
-
Prode diameter:
-
2-25mm
-
wire Length:
-
300-3000mm
-
Probe length:
-
20-200mm
-
Feature:
-
Quick Response
-
Function:
-
Function
Product Description

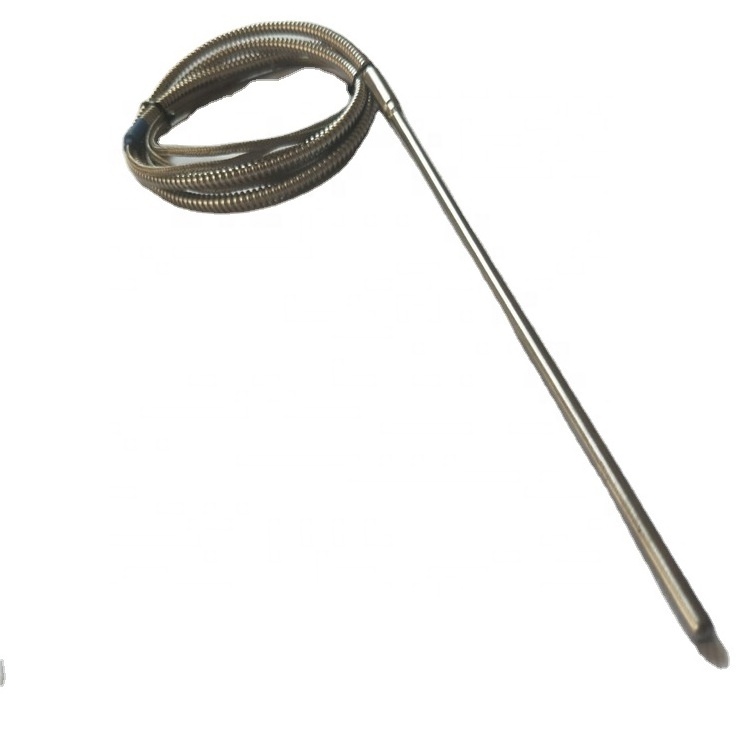

Thermocouple of type J Description:
J type
of thermocouples are very simple and durable temperature sensors. Thermocouple come with different pairings of materials allowing for a very wide range of applications. The different compositions are standardized into thermocouple types. The different types are given letter names which are standardized across the industry.
J type
of thermocouples are manufactured in many different configurations for multitude of applications. Diameters, lengths, sheath material, lead lengths and sensor material are just a few of the variables that go into determining the style of thermocouple when manufactured. The main determining factors of what type thermocouple needs to be used in a application is temperature, environment, response time and accuracy. The junction of the thermocouple can be grounded, ungrounded or exposed.
J type
of thermocouples are easy to use, Thermocouples are the most popular temperature sensors. They are cheap, interchangeable, have standard connectors and can measure Thermocouples and RTD pt100 sensors a wide range of temperatures.
From this form,you can choose the most suitable type of thermocouple!
|
Product
|
Conductor material
|
Type
|
Graduation
|
Use temperature°C(short time)
|
Use temperature°C
|
|
Thermocouple
|
PtRh30-Ptrh6
|
WRR
|
B
|
0-1800°C
|
0-1600°C
|
|
|
PtRh10-Pt
|
WRP
|
S
|
0-1600°C
|
0-1300°C
|
|
|
PtRh13-pT
|
WRB
|
R
|
0-1600°C
|
0-1300°C
|
|
|
NiCrSi-NiSi
|
WRM
|
N
|
0-1000°C
|
0-1000°C
|
|
|
NiCr-NiAl(Si)
|
WRN
|
K
|
0-1200°C
|
0-900°C
|
|
|
NrCr-constantan
|
WRE
|
E
|
0-700°C
|
0-600°C
|
|
|
Iron- Constantan
|
WRF
|
J
|
0-600°C
|
0-500°C
|
|
|
Copper-Constantan
|
WRC
|
T
|
0-400°C
|
0-350°C
|
|
Thermal resistance
|
Copper heat resistance
|
|
Cu50
|
|
-50-150°C
|
|
|
|
|
Cu100
|
|
-50-150°C
|
|
|
|
|
Pt100
|
|
-200-600°C
|
