Quick Details
-
Ink Type:
-
Pigment Ink
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YDM
-
Voltage:
-
110V/220V
-
Dimensions(L*W*H):
-
460 cm x 200 cm x 145 cm
-
Weight:
-
1600 KG
-
Print head:
-
Toshiba CE4, Auto Heating, 4~16 ph
-
Print Height:
-
10 cm / 4 in ( Max. 40 cm / 16 in )
-
Control System:
-
KNFUN, Toshiba Official Partner
-
RIP Software:
-
UnitedFancy, Developed by Holland Aurelon
-
Print Direction:
-
Uni / Bi-directional , Front / Rear Alternative
-
Ink System:
-
Negative pressure Ink supply + White Ink stirring and circulation
-
Height Detection:
-
Automatic sensor
-
Print Media:
-
Glass, Ceramic, Acrylic, Metal, Leather, Plastic, Wood, PVC .. etc
-
Signal Transmission:
-
Optical Fiber + USB 3.0
-
Power Supply:
-
AC220V,50/60HZ
Quick Details
-
Print Dimension:
-
2500mm*1300mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
Pigment Ink
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YDM
-
Voltage:
-
110V/220V
-
Dimensions(L*W*H):
-
460 cm x 200 cm x 145 cm
-
Weight:
-
1600 KG
-
Print head:
-
Toshiba CE4, Auto Heating, 4~16 ph
-
Print Height:
-
10 cm / 4 in ( Max. 40 cm / 16 in )
-
Control System:
-
KNFUN, Toshiba Official Partner
-
RIP Software:
-
UnitedFancy, Developed by Holland Aurelon
-
Print Direction:
-
Uni / Bi-directional , Front / Rear Alternative
-
Ink System:
-
Negative pressure Ink supply + White Ink stirring and circulation
-
Height Detection:
-
Automatic sensor
-
Print Media:
-
Glass, Ceramic, Acrylic, Metal, Leather, Plastic, Wood, PVC .. etc
-
Signal Transmission:
-
Optical Fiber + USB 3.0
-
Power Supply:
-
AC220V,50/60HZ
The characteristics of UV flatbed printer
1. Can be quickly dried to avoid pollution
2. Low energy consumption
3, no radiation performance is very stable
4. Can be used on almost all power sources
Specification
|
Model NO.
|
|

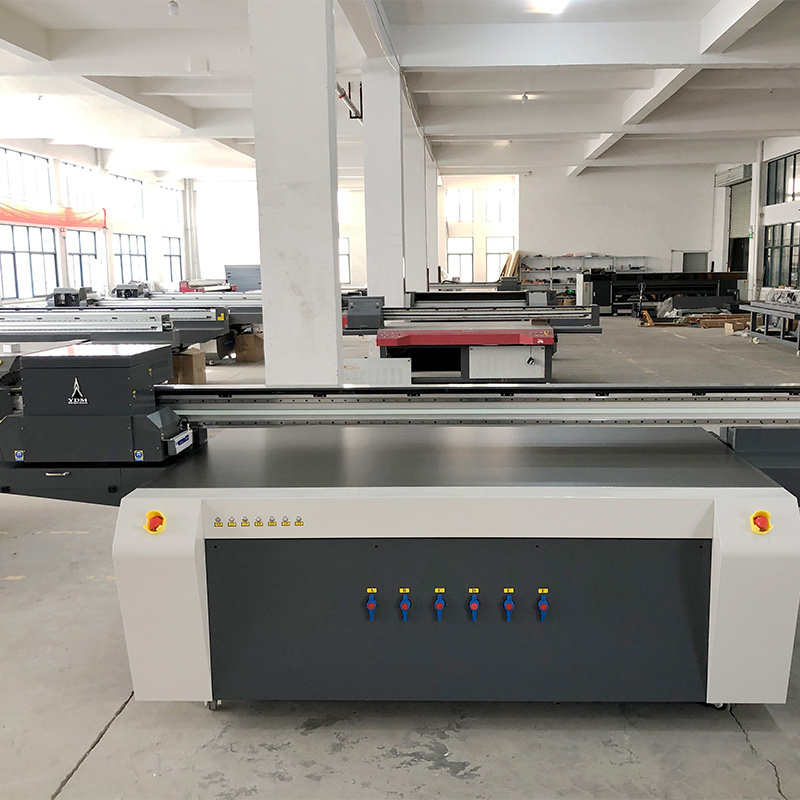

2513-B Industry Grade Uv Flatbed Printer
|
|
|
Printhead
|
|
Toshiba CE4, Auto Heating, 4~16 ph
|
|
|
|
|
Production mode: 15-18 sqm/h
Quality mode: 12-15 sqm/h
High resolution mode: 10-12 sqm/h
|
|
|
Print Height
|
|
10 cm / 4 in ( Max. 40 cm / 16 in )
|
|
|
Resolution
|
|
4 PASS : 600 x 600 dpi
6 PASS : 600 x 900 dpi
8 PASS : 600 x 1200 dpi
|
|
|
|
Size
|
250*130cm
|
|
|
|
Types
|
Glass, Acrylic, Ceramic, Metal, Wood, Leather, Phone case, Lighters, Golf,Bottle
|
|
|
|
Type
|
LED UV Ink
|
|
|
|
Color
|
CMYK+W+W
|
|
|
|
Dry System
|
UV-LED light system
|
|
|
PC Operation System
|
|
Win7/ Win10, 64 bit, CPU≥ i5, RAM ≥8GB, Space for Disk C≥100G
|
|
|
Signal Transmission
|
|
Optical Fiber + USB 3.0
|
|
|
Rip Software
|
|
RIPrint / UnitedFancy
|
|
|
Power
|
|
AC220V,50/ 60HZ
|
|
|
|
Machine
|
L4600 mm x W2000 mm x H1450 mm/1200kg
|
|
|
|
Packing
|
L4700 mm x W2300 mm x H1650 mm/1600kg
|
|
