Quick Details
-
Autolock Time Delay:
-
0,3,6,9sec
-
Face Plate:
-
225Lx34WX38H(mm)
-
Feature:
-
Fail safe
-
Start Current:
-
1200mA
-
Standby Current:
-
200mA
-
Signal Output:
-
Lock signal:NO/NC/COM Door signal:NO/COM
-
Detection Distance:
-
Within 8mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YLI
-
Certification:
-
CE/MA
-
Autolock Time Delay:
-
0,3,6,9sec
-
Face Plate:
-
225Lx34WX38H(mm)
-
Feature:
-
Fail safe
-
Start Current:
-
1200mA
-
Standby Current:
-
200mA
-
Signal Output:
-
Lock signal:NO/NC/COM Door signal:NO/COM
-
Detection Distance:
-
Within 8mm
Product Description
Product Application

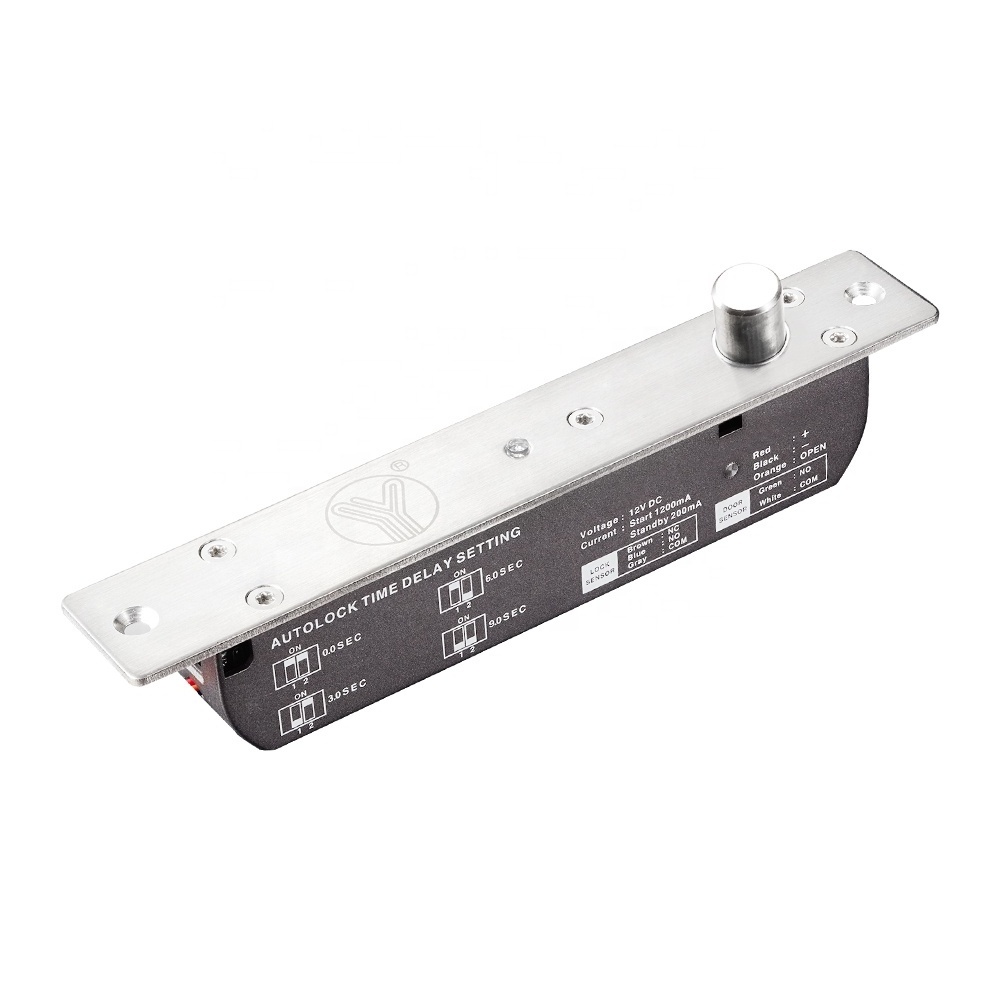

YB-700B (LED) is an all-metal construction Fail Secure electric bolt .with 304 stainless steel solid bolt and 2000kg holding force. It can be worked at the temperature of 60 ℃ or -40 ℃ based on the all-metal linkage parts. With the multiple designs of durable magnetic valve, special photoelectric control system, ultra-low temperature and power consumption design, anti-intrusion and smart circuit.
|
Feature
|
Fail Secure
|
|
|
||
|
Face Plate
|
225Lx34WX38H(mm)
|
|
|
||
|
Strike
|
100Lx25Wx3W(mm)
|
|
|
||
|
Bolt
|
16(length)*16(diameter)(mm)
|
|
|
||
|
Voltage
|
DC12V+10%
|
|
|
||
|
Start Current
|
1200mA
|
|
|
||
|
Standby Current
|
200mA
|
|
|
||
|
Solid Bolt
|
polishing housing, 2000Kg Holding Force
|
|
|
||
|
Suitable For
|
Heavy door;Wooden door; Metal door
|
|
|
||
|
LED
|
Light on indicates locked, light off indicates unlocked
|
|
|
||
|
Autolock Time Delay
|
0,3,6,9sec
|
|
|
||
|
Signal Output
|
Lock signal:NO/NC/COM
Door signal:NO/COM |
|
|
||
|
Surface Temp
|
Low Temperature
|
|
|
||
|
Detection Distance
|
Within 8mm
|
|
|
||
|
Special Designed
|
Tested to 500000 cycles
|
|
|
||
|
Material
|
304 stainless steel, wire draw finishing
|
|
|
||
|
Weight
|
1.0kg
|
|
|
||
Installation Diagram
