Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
COMFAST
-
RAM::
-
64MB
-
Flash::
-
16MB
-
Wireless Frequency::
-
5.8GHz
-
Standard::
-
IEEE802.11b/g/n
-
Maximum Data Rate::
-
Up to 300Mbps
-
OEM/ODM::
-
Allow
-
Product name:
-
Wireless Outdoor CPE
-
Type:
-
Intelligent Network Devices
-
Function:
-
Environment Monitoring
-
Power supply:
-
24V POE
Quick Details
-
Chipset:
-
AR9344
-
Application:
-
Long Distance Data Transmission for CCTV Camera
-
Model Number:
-
CF-E120A V3
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
COMFAST
-
RAM::
-
64MB
-
Flash::
-
16MB
-
Wireless Frequency::
-
5.8GHz
-
Standard::
-
IEEE802.11b/g/n
-
Maximum Data Rate::
-
Up to 300Mbps
-
OEM/ODM::
-
Allow
-
Product name:
-
Wireless Outdoor CPE
-
Type:
-
Intelligent Network Devices
-
Function:
-
Environment Monitoring
-
Power supply:
-
24V POE

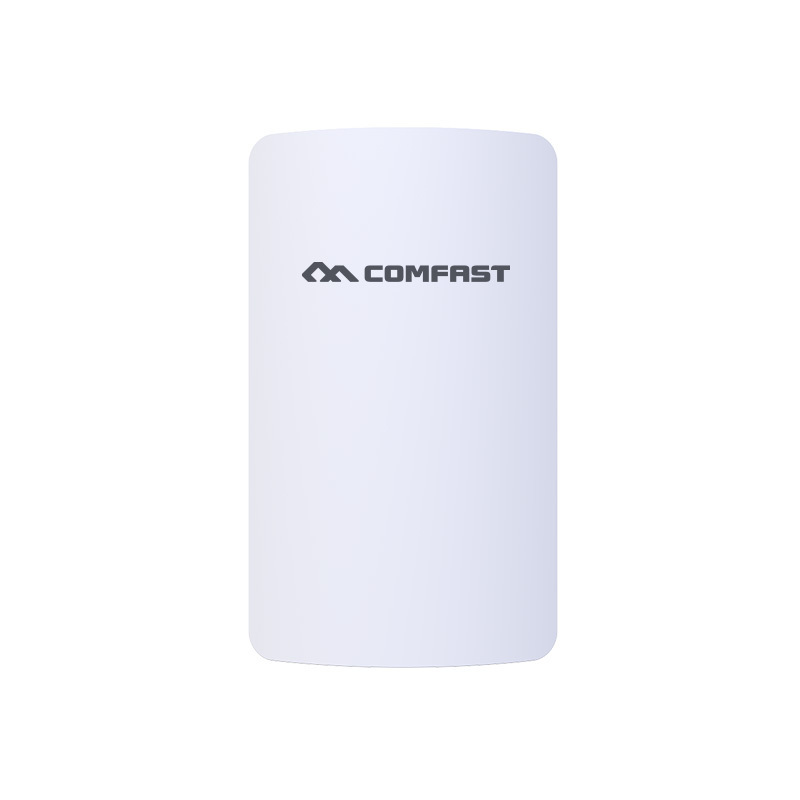

High Power 1-2km 5.8ghz Video CCTV WIFI Transmitter And Receiver outdoor Short Range WIFI Wireless Bridge
|
Hardware Specification |
Chipset: Qualcomm AR9344 560MHz CPU; RAM: DDR 64MB; Flash: 8MB; PA: SKY85735 |
|
Antenna |
11dBi 5.8GHz Antennas |
|
Wireless Standard |
IEEE802.11a/an |
|
RF Parameters |
Output Power: 200mW(23dBm); Receiving Sensitivity: -96dBm; Working Frequency:802.11a/an: 5.180GHz-5.825GHz |
|
Transmission Rate |
5.8GHz: 300Mbps |
|
Physical Ports |
1* 10/100Mbps WAN RJ45 Ethernet Port; 1* 10/100Mbps LAN RJ45 Ethernet Port; 1* RESET Button |
|
Indicator |
8*Indicators:Power/WAN/LAN/WiFi/Signal Strength |
|
Power |
Power Supply: 9-24V |
|
Power Consumption(Max) |
<8W |
|
IP Index |
2KV Lightning Protection; IP65 |
|
Physical Features |
Size: 165*95*31mm; Weight: 156g |
|
Working Environment |
Working Temperature: -40 C~55 C; Storage Temperature: -50 C~75 C; Working Humidity: 10%~90%RH Non-condensing; Storage Humidity: 5%~90%RH Non-condensing |
