- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
APOLLO
-
Voltage:
-
380V or customized
-
Dimension(L*W*H):
-
Customized Size
-
Weight (KG):
-
3500 kg
-
Product name:
-
Telescopic Belt Conveyor
-
Movement type:
-
Motorized movement
-
belt width:
-
600mm, 800mm
-
Belt running direction:
-
Forward and backward
-
Speed:
-
10-35m/minute (adjustable)
-
Loading capacity:
-
50kg/meter
-
Color:
-
Customers' Request
-
Packing:
-
Plastic wrap
-
Feature:
-
Simple Operation
-
Usage:
-
Material Transimission
Quick Details
-
Power:
-
5.95KW
-
Warranty:
-
1 Year
-
Width or Diameter:
-
800mm or 600mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
APOLLO
-
Voltage:
-
380V or customized
-
Dimension(L*W*H):
-
Customized Size
-
Weight (KG):
-
3500 kg
-
Product name:
-
Telescopic Belt Conveyor
-
Movement type:
-
Motorized movement
-
belt width:
-
600mm, 800mm
-
Belt running direction:
-
Forward and backward
-
Speed:
-
10-35m/minute (adjustable)
-
Loading capacity:
-
50kg/meter
-
Color:
-
Customers' Request
-
Packing:
-
Plastic wrap
-
Feature:
-
Simple Operation
-
Usage:
-
Material Transimission
Descriptions

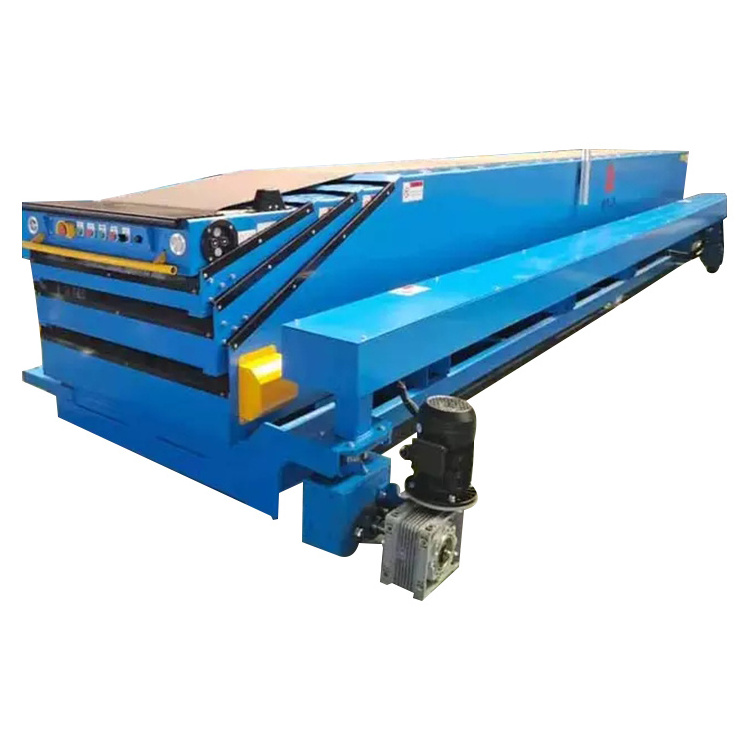

Telescopic Belt Conveyor is safe and eficient conveyor equipment for loading and unloading. Its biggest advantage is providing an ergonomic operating conditions, the operator could adjust the conveyor to achieve a perfect position via buttons to control extending and retracting, load and unloading easily and efficiently, all the actions will be real-time feedback to the operator by electronics.
Mobile Telescopic Conveyor is suitable for unfixed loading/unloading sites.
✦
Machine can move randomly to anyplace you want just with little effort
✦ Mobile power: by battery or AC power
✦ Extra functions are available like hydraulic up/down, light, counter etc.
✦ Loading capacity: 50kg/m
✦ Extra functions are available like hydraulic up/down, light, counter etc.
✦ Loading capacity: 50kg/m
Characteristics
✦ Movement way for options: by manual, motorized movement, or rail movement.
✦
Easy operation: reduce manual handling, reduce labor intensity.
✦
Efficient operation: The Maximum loading amount up to 2250 per hour if based on standard loading speed of 30 m/min for carton
(800x600mm).
✦
Standard work: make loading, unloading as well as storage in an orderly and effectively operations to avoid the mess phenomenon.
✦
Save labor: Labor can reduce more than 2/3 based on original loading way.
✦
Safety: Minimum the lowest accident in the process of loading, even zero incidence.
✦
Promote the enterprise image: standard automation equipment, conform to the requirements of the modern enterprise.
Specifications
Details
Control handle bar to move machine
Wheels can move to everywhere
With hydraulic liting system
Control buttons at the side of conveyor
Control buttons at panel
Siemens PLC, Schneider electrical parts
Projects
Company Introduction
SUZHOU APOLLO AUTOMATION EQUIPMENT CO.,LTD
is a professional manufacturer who focuses on automatic sorting and logistic conveying from design, manufacture, shipping and installation as well as software and electrical control. APOLLO already worked with global
famous customer in the industry like Dematic, Daifuku, Swisslog etc. Products are widely used in 39 countries and still in growing.
famous customer in the industry like Dematic, Daifuku, Swisslog etc. Products are widely used in 39 countries and still in growing.
Main products include:
Automatic Sorter:
Shoe Sorter, Wheel Sorter, vertical Sorter
Vertical Conveyor
: Spiral Conveyor, Rotative Lifter, Reciprocating Lifter
Loading/ unloading Conveyor : Telescopic Belt Conveyor
Loading/ unloading Conveyor : Telescopic Belt Conveyor
Other Conveyor
: Roller Conveyor, Belt Conveyor, Curve Conveyor, Flexible Roller Conveyor,
Pop-up Roller Conveyor, Merge Conveyor, Chain Conveyor etc.
