Box reducer 90 degree right angle gearbox/pto reducer gearbox/planetary speed reducer transmission gearboxes

Box reducer 90 degree right angle gearbox/pto reducer gearbox/planetary speed reducer transmission gearboxes

FOB Reference Price: Get Latest Price

≥1 Sets

US $830

≥50 Sets

US $820

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Output Speed:: 15~176(rpm)

Warranty:: 1 year

Weight (KG):: 600 KG

Place of Origin:: Shaanxi, China

Brand Name:: Haoyu

Color:: green .blue

gear type:: cylindrical gear

installation type:: 1,2,3,4,5,6,7,8,9

Quick Details

Gearing Arrangement:: Spur

Output Torque:: 650~7200(N.m)

Input Speed:: 1450,1000,750(rpm)

Output Speed:: 15~176(rpm)

Warranty:: 1 year

Weight (KG):: 600 KG

Place of Origin:: Shaanxi, China

Brand Name:: Haoyu

Color:: green .blue

gear type:: cylindrical gear

installation type:: 1,2,3,4,5,6,7,8,9

Product Description

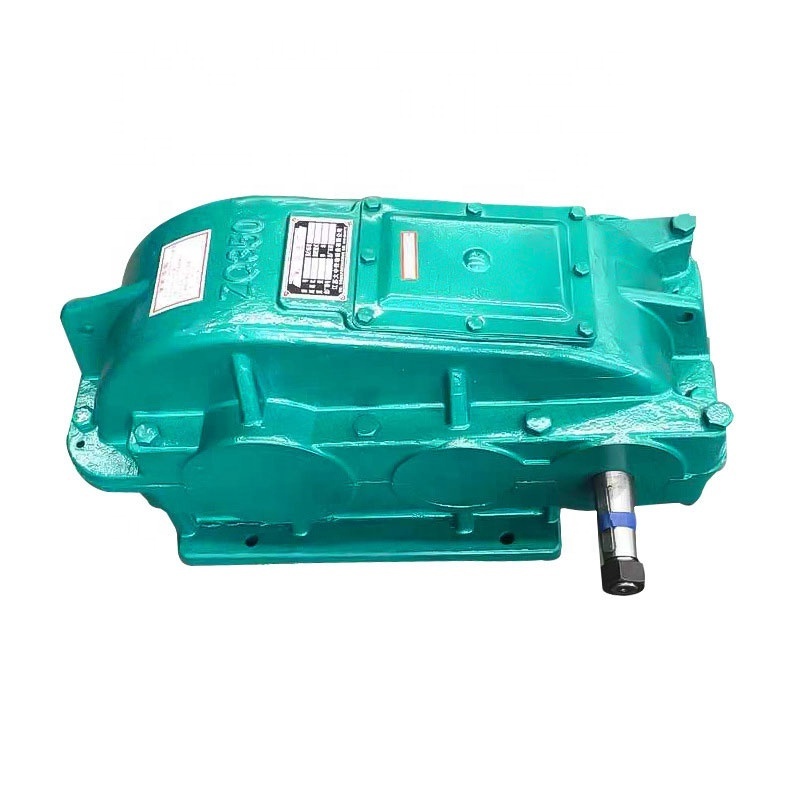

ZQ gearboxreducer is mainly used for lifting, mining, general chemical, textile, light industry and other industries, its application conditions are as follows:

1, reducer gear drive circumference speed is not more than 10 m / s;

2, the speed of the high speed shaft of the reducer is not more than 1500 RPM

3, the reducer is used for two-way operation;

4. The working environment temperature of the reducer is-40 °C to + 40 °C

5. There are nine transmission ratios, nine configurations and three types of low-speed shaft ends

6. The transmission ratios of such reducers are: 48.57,40.17,31.5,23.34,20.49,15.75,12.64,10.35,8.23

Code	1	2	3	4	5	6	7	8	9
Speed Ratio	48.75	40.17	31.50	23.34	20.49	15.75	12.64	10.35	8.23
High speed	88 - 11	86 - 13	85 - 14	81 - 18	79 - 20	77 - 22	73 - 26	69 - 30	64 - 35
Low Speed	85 - 14	85 - 14	83 - 16	83 - 16	⁸³ ^- ¹⁶	81 - 18	83 - 16	83 - 16	83 - 16
