Quick Details
-
Welding Area:
-
10cm/15cm/20cm
-
Dimensions:
-
370mm*240m*285mm
-
Usage:
-
Plastic Welding
-
Weight (KG):
-
6 KG
-
Power (kW):
-
800W/1800W
-
Color:
-
Red/Green
-
Welding temperature:
-
0-450℃
-
Welding thickness:
-
0.2-3mm
-
Application:
-
HDPE Geomembrane Pond Liner
-
Keyword:
-
Welding Machine
-
Certificate:
-
ISO9001
-
Frenquency:
-
50/60HZ
-
Weight:
-
11kg
-
After Warranty Service:
-
Online support
Quick Details
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
110V/220V/380V/Customize
-
Frequency:
-
50-60HZ
-
Welding Area:
-
10cm/15cm/20cm
-
Dimensions:
-
370mm*240m*285mm
-
Usage:
-
Plastic Welding
-
Weight (KG):
-
6 KG
-
Power (kW):
-
800W/1800W
-
Color:
-
Red/Green
-
Welding temperature:
-
0-450℃
-
Welding thickness:
-
0.2-3mm
-
Application:
-
HDPE Geomembrane Pond Liner
-
Keyword:
-
Welding Machine
-
Certificate:
-
ISO9001
-
Frenquency:
-
50/60HZ
-
Weight:
-
11kg
-
After Warranty Service:
-
Online support
Product Description
|
ITEM
|
PARAMETER
|
|
Voltage
|
220V
|
|
Frequency
|
50/60Hz
|
|
Rate of Work
|
800W
|
|
Temperature range
|
0-450°C
|
|
Welding speed
|
1 m/min
|
|
Welding thickness
|
0.2mm-2.0mm
|
|
Welding width
|
15mm*2 Interior Cavity:15mm
|
|
Net weight
|
6Kg
|
|
ITEM
|
PARAMETER
|
|
Voltage
|
220V/230V
|
|
Frequency
|
50/60Hz
|
|
Rate of Work
|
1800W
|
|
Temperature range
|
0-450°C
|
|
Welding speed
|
2 m/min
|
|
Welding thickness
|
1.0mm-3.0mm
|
|
Net weight
|
11Kg
|
|
Model
|
H-A
|
|
Voltage
|
110V/220V
|
|
Power
|
1000W
|
|
Frequency
|
50/60Hz
|
|
Max temperature
|
30-580 degree centigrade
|
|
Air flow
|
180L/min
|
|
Pressure stat
|
2500Pa(25mbar)
|
|
Gross weight
|
2KG
|
Product Application

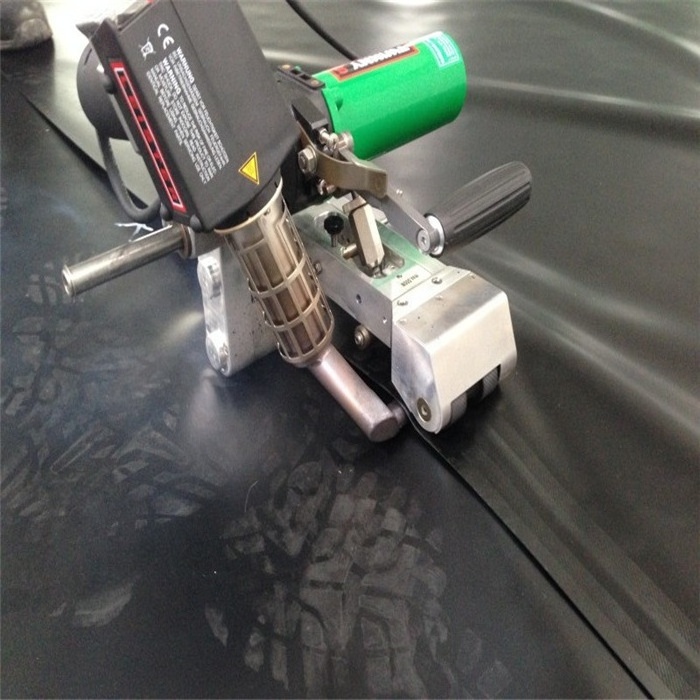

The automatic welding machine is designed to weld film/membrane, including HDPE LDPE,PVC, EVA Geomembrane, Composite Geomembrane.
Small light, easy to operate. it can be adjusted to accommodate the different thickness to make the welding stronger, avoid leakage.
This machine is more suited to fast welding of large areas, such as landfill, pond liner, mining dam bottom liner welder.
Small light, easy to operate. it can be adjusted to accommodate the different thickness to make the welding stronger, avoid leakage.
This machine is more suited to fast welding of large areas, such as landfill, pond liner, mining dam bottom liner welder.
