Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Polsun
-
Model Number:
-
PY04-7ZJ
-
Coupling Method:
-
Threaded Connection
-
Number of Positions:
-
4 / 7 / 10 / 19 Pin
-
Orientation:
-
Straight
-
Shell Material:
-
Aluminum Alloy
-
Rated Voltage:
-
200V
-
Rated Current:
-
5A
-
Contact Resistance:
-
≤0.005Ω
-
Temperature:
-
-55℃~+150℃
Quick Details
-
Type:
-
Russia Standard Circular Connector
-
Application:
-
Railroad Equipment / Generator / Outdoor LED Lights
-
Gender:
-
Female / Male
-
Place of Origin:
-
China
-
Brand Name:
-
Polsun
-
Model Number:
-
PY04-7ZJ
-
Coupling Method:
-
Threaded Connection
-
Number of Positions:
-
4 / 7 / 10 / 19 Pin
-
Orientation:
-
Straight
-
Shell Material:
-
Aluminum Alloy
-
Rated Voltage:
-
200V
-
Rated Current:
-
5A
-
Contact Resistance:
-
≤0.005Ω
-
Temperature:
-
-55℃~+150℃
Product Description

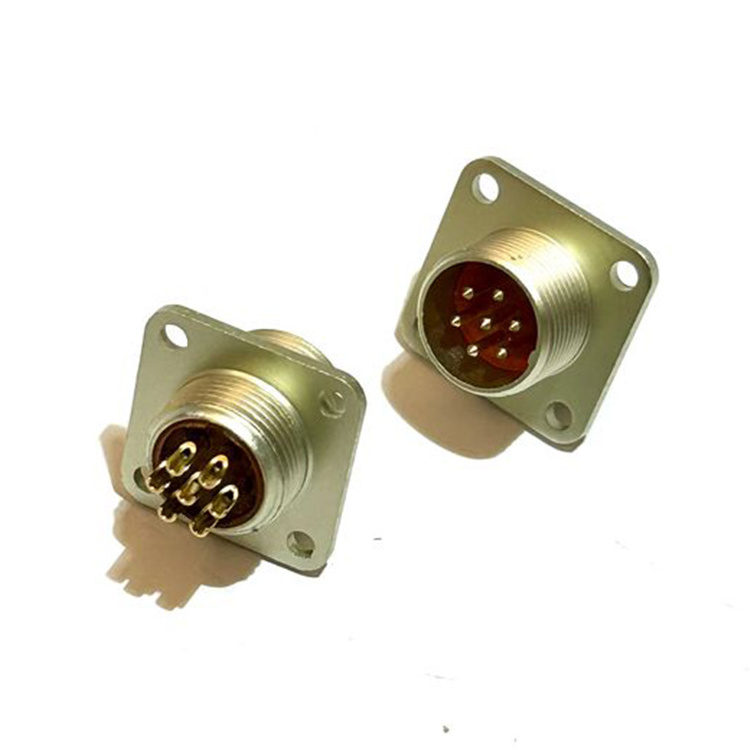

PC Series Russia Circular Connector
PC series small circular electrical connectors are small in size, with metal aluminum shell, light in weight, threaded-coupling connection, reliable electrical connection and easy to use. Currently there are 4, 7, 10, 19 cores, which can interchanged with Russian type PC series-4, 7, 10, 19, core products. The pins of connector are gold plated brass, the body is gold color plated aluminum alloy, the color can be change according to customer's requirement.
|
Number of Positions
|
4 / 7 / 10 / 19 Pin
|
|
Orientation
|
Straight
|
|
Color
|
Golden / Light Yellow / Yellow-Green
|
|
Shell Material
|
Aluminum Alloy
|
|
Contant Material
|
Copper with Gold-Plated
|
|
Working Voltage
|
200V
|
|
Working Current
|
5A
|
|
Contact Resistance
|
≤0.005Ω
|
|
Insulator Material
|
PBT
|
|
Endurance
|
500 Mating Cycles
|
|
Temperature
|
-55℃ ~ +150℃
|
Application
PC series Russian connectors
are manufactured according to Russian standards. Widely used in various electronic instruments, electrical connection between electronic devices. Commonly used in railroad equipment, outdoor LED lights, industrial machinery, generators, automobile manufacturing, sensors, intelligent manufacturing, construction equipment, excavators and other fields.
How To Order
Product order guide
PY04
—
4
TK/ZJ
1 2 3
1.Name：PY04 series connector
2.Number of contacts： 4, 7, 10, 19
3. T—plug，Z—receptacle
Product Quality And Certificate
The warranty period of high-quality Russian PC Connector is one year. it can be replaced free of charge if it has quality problem. The waterproof grade has passed the professional testing organization.
About Us
Certificate
Logistics
Packing Details :
1. Our standard packing: it is packed in plastic bag firstly, and then in small box with label, finally in big in neutral cartons.
2. OEM package available
Shipping Methods :
1. Samples and Small quantity order will be shipped by FedEx/DHL/UPS/TNT/SF.
2. Batch goods : Express, By Air, by Sea or by Rail
