Quick Details
-
Brand Name:
-
Higee
-
Dimension(L*W*H):
-
2400 * 1800 * 2200 mm
-
Weight (KG):
-
850
-
Name:
-
25 l jerry can palm oil filling machine
-
Filling head:
-
6
-
Capping head:
-
1
-
Filling volume:
-
5L 10L 15L 20L 25L 50L
-
Filling speed:
-
1800-2000 bottles per hour
-
Bottle size:
-
D/W: 40-100mm; H: 52-280mm
-
Dose accuracy:
-
±1% (<200ml); ±0.5% (200-500ml)
-
Air pressure:
-
0.6-0.8mpa
-
Weight:
-
850 kg
Quick Details
-
Production Capacity:
-
2000BPH
-
Voltage:
-
220v 50hz 1 phase 380 50hz 3 phase
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Higee
-
Dimension(L*W*H):
-
2400 * 1800 * 2200 mm
-
Weight (KG):
-
850
-
Name:
-
25 l jerry can palm oil filling machine
-
Filling head:
-
6
-
Capping head:
-
1
-
Filling volume:
-
5L 10L 15L 20L 25L 50L
-
Filling speed:
-
1800-2000 bottles per hour
-
Bottle size:
-
D/W: 40-100mm; H: 52-280mm
-
Dose accuracy:
-
±1% (<200ml); ±0.5% (200-500ml)
-
Air pressure:
-
0.6-0.8mpa
-
Weight:
-
850 kg
Automatic oil lubricant jerry can filling machine lubricant oil drum bottling machine 40l jerry can filling machine line
Application
This machine is used international famous brand electrical and pneumatic components, Automatic controlled by computer (PLC ), touch screen control panels ,and high-quality stainless steel frames, easy operating, it is suitable for in filling a variety of oils and viscous liquids, such as soya oil , peanut oil, blend oil, rapeseed oil and other edible oil,lube oil,lubricant oil,enginer oil filling etc.
Features
1 All electrical control is in accordance with international standards, the main components are imported components, frequency control, and the running speed is continuously adjustable.
2. filling volumn used intellent control , screen touch can writing filling capacity then our filling machine can filling it , difference bottle capacity ,you can set differente filling volumn ,
it's very easy to operation not change parts .
3. Special anti-drip filling head, better anti-drip effect and accurate loading.
4. no bottle no filling, no spray nozzles , no bottle no capping and no bottle shutdown.
5. The filling head is deep into the bottle at 2/3, while rising and filling, to prevent liquid impact bubble.
6.overload protection and alarm prompt function, more safe and reliable.
7. The whole system is controlled by PLC. The color touch screen make the operation simpler.
8. The most part of the machine is made from SS304. For special material which is able to reach the GMP standard.
9 high-precision pump cylinder with low damping piston head, modular design, long life of pump cylinder.
Technical Parameter
|
Model |
HGGP- 6 |
|
Filling hea d |
6 head |
|
Filling range |
100-500 ml |
|
Filling speed |
15-25 pcs per minute (can customized ) |
|
Filling precision |
±1% |
|
Air pressure |
0.6-0.8MPa |
|
Voltage |
220V/50Hz 1 phase |
|
Power |
1.0kw |
|
Weight |
85 0kg |
|
Machine size |
2 4 00×800×1600mm |

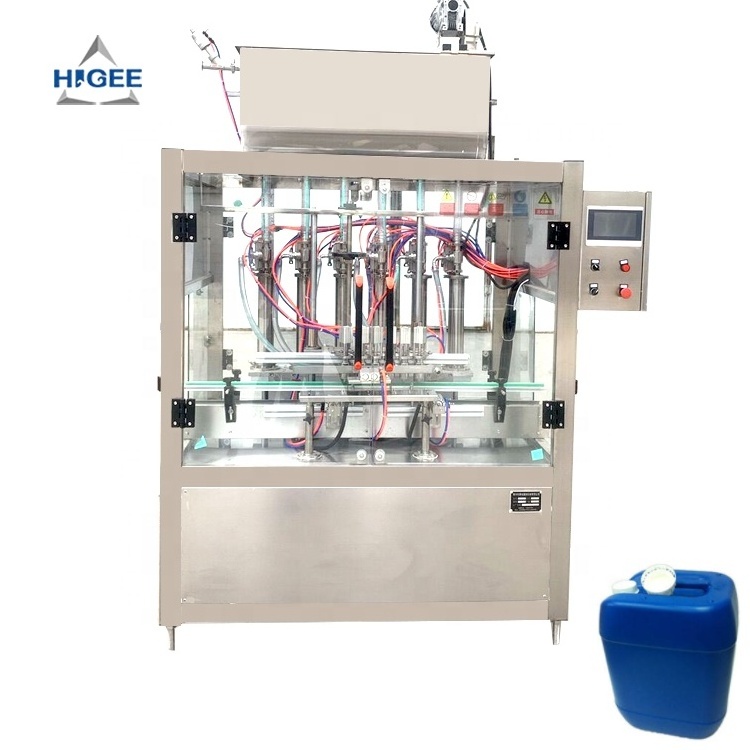

Machine photos
