Quick Details
-
Model Number:
-
YT-1000R without Feedback
-
Brand Name:
-
HEARKEN
-
Air consumption:
-
3LPM
-
Inlet:
-
4-20mA,0 ,21-1bar (3-15 psi)
-
Air Pressure:
-
6bar
-
Working temperature:
-
-20°C-70°C
-
Explosion-proof Temperature:
-
-20°C-60°C
-
Splitting range:
-
10-150mm
-
Air supply interface:
-
NPT 1/4
-
Pressure gauge interface:
-
NPT 1/2
-
Power supply interface:
-
PF 1/2 (G1/2)
-
Protection class:
-
IP66
Quick Details
-
Port Size:
-
NPT1/4
-
Warranty:
-
1.5 years
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
YT-1000R without Feedback
-
Brand Name:
-
HEARKEN
-
Air consumption:
-
3LPM
-
Inlet:
-
4-20mA,0 ,21-1bar (3-15 psi)
-
Air Pressure:
-
6bar
-
Working temperature:
-
-20°C-70°C
-
Explosion-proof Temperature:
-
-20°C-60°C
-
Splitting range:
-
10-150mm
-
Air supply interface:
-
NPT 1/4
-
Pressure gauge interface:
-
NPT 1/2
-
Power supply interface:
-
PF 1/2 (G1/2)
-
Protection class:
-
IP66
Description

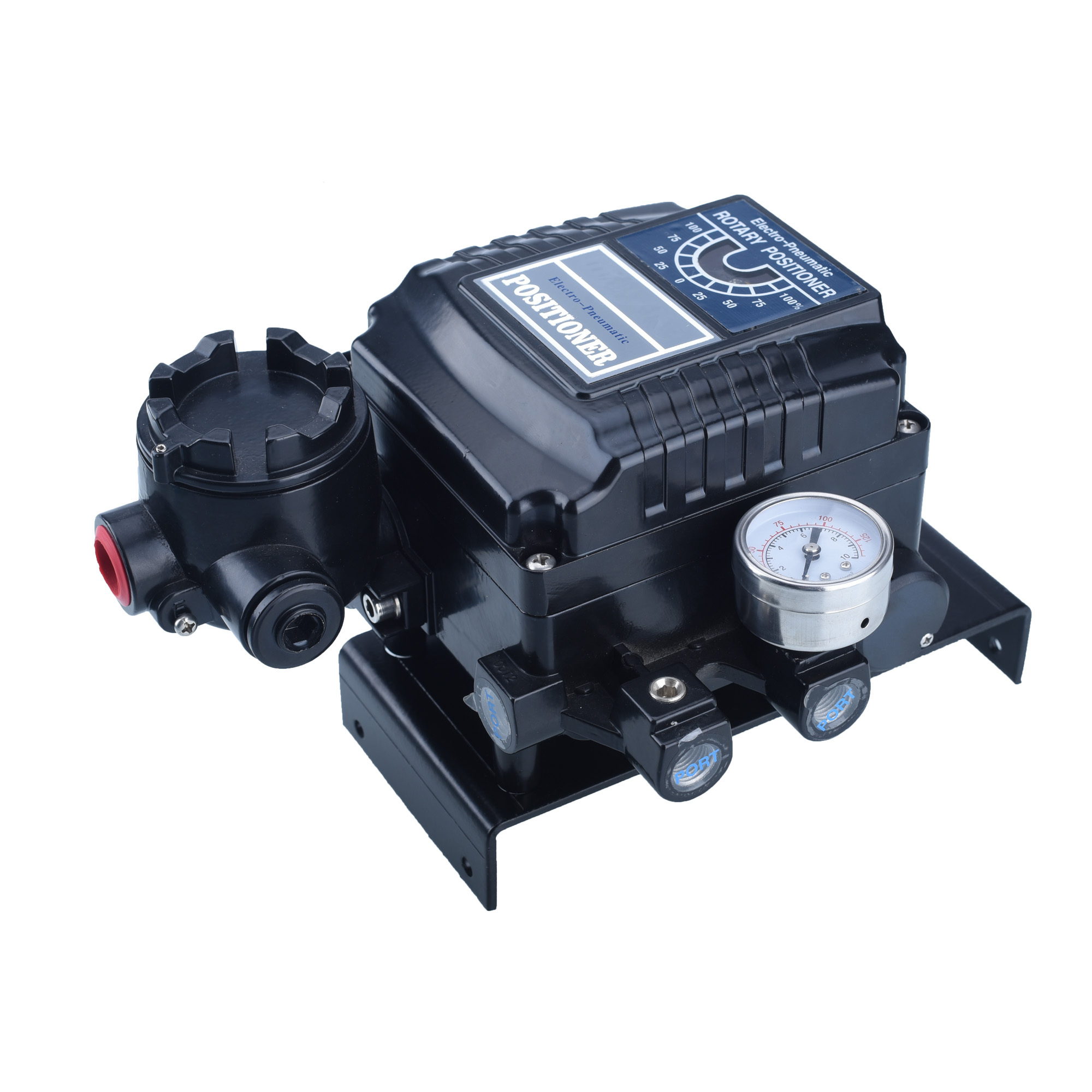

YT-1000R series electric-pneumatic valve positioner is a device that receives DC current signal 4-20mA from the controller or the control system,and the precisely controls valve opening through pneumatic actuator.
Main Features And Characteristics
●Buily-in field LCD display ( For Smart Positioner)
●No resonance within 5-200Hz
●Easy changeover between forward and backward,and between single action and dual action
●For small actuators,preventing vibration by making locator orifice smaller
●Low air consumption,allowing the locator being economical
●Splitting-range control within 1/2 without replacing parts
●No resonance within 5-200Hz
●Easy changeover between forward and backward,and between single action and dual action
●For small actuators,preventing vibration by making locator orifice smaller
●Low air consumption,allowing the locator being economical
●Splitting-range control within 1/2 without replacing parts
Technical Parameters
|
Item
|
Single action
|
Double action
|
Item
|
Single action
|
Double action
|
||
|
Input signal
|
4~20mA
|
|
Ambient humidity
|
10~90RH
|
|
||
|
Impedance
|
250±15 ohm
|
|
Linearity
|
±1% F.S
|
±2% F.S
|
||
|
Input pressure
|
1.4~7Kgf/cm³ 20~100psi
|
|
Lagging degree
|
±1% F.S
|
|
||
|
Splitting range
|
10~150mm
|
|
Sensitivity
|
±0.2% F.S
|
±0.5% F.S
|
||
|
Air supply interface
|
NPT 1/4
|
|
Repcatability
|
±0.5% F.S
|
|
||
|
Pressure gauge interface
|
NPT 1/8
|
|
Air consuption
|
2LPM (sup=1.4Kgf/cm³)
|
|
||
|
Power supply interface
|
PF 1/2 (G1/2)
|
|
Flow
|
80LPM (sup=1.4Kgf/cm³)
|
|
||
|
Explosion-proof grade
|
Ex Dii BT5,Ex iaII CT6
|
|
Material
|
Die-cast aluminum
|
|
||
|
Protection class
|
IP66
|
|
Weight
|
2.7Kg
|
|
||
|
Ambient temperature
|
-20~70°C(-4~158°F)
|
|
|
|
|
||
Q: What is your main products?
A: Our main products are Pneumatic Actuators, Electric Actuators And Valve Accessories.
Q: Are you a trader or manufacturer? Do you have factory ?
A: We are the actuator manufacturer,we have ability to do the customization products
with experienced team, And we have own factory and production line.
Q: How do your make the quality guarantee?
A: We have our own quality control ,every product will be under controlled and tested before delivery ,and we also provide 18 months guarantee.
Q: When can I receive the Price ?
A: We will give the Quotation Within 24 hours after we get your inquiry .Or Your can call us if its quite urgently.
Q: How to order our valve actuators ?
A: Please send us your inquiry by Email, Whatsapp,WeChat etc. we need to know the following information
before giving the formal Quotation.
1) Product information in details, Quantity, Other requirements .
2) Delivery time required .
Q: How can I get a sample to check your quality ?
A: Contact with our sales expert to arrange the sample delivery. Please send us the details of the sample before placing the order.
Q：Shall we pay the sample cost and transportation cost ?
A: We will provide the sample by free of charge. Your will bear the freight cost.
Q: How long to prepare the sample ?
A: Most of our products are under regular production and some of them we keep in stocks.
Q: How to delivery the sample to our place?
A: Your can provide your forwarders contact if any, or we will arrange it.
Q: What about the delivery date if we place the formal order ?
A: Usually it takes 15~20 days on the production .We know that on-time delivery is very crucial to our customers to meet dead-lines.
We monitor and expedite our supply chain to ensure that we delivery our products to our customers on-time . All the time.
