Quick Details
-
Application:
-
Building Construction
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Tatooine
-
Dimension(L*W*H):
-
1820*1000*1150mm
-
Weight:
-
300 kg
-
Power:
-
7.5kw
-
Marketing Type:
-
Hot Product 2022
-
Product Name:
-

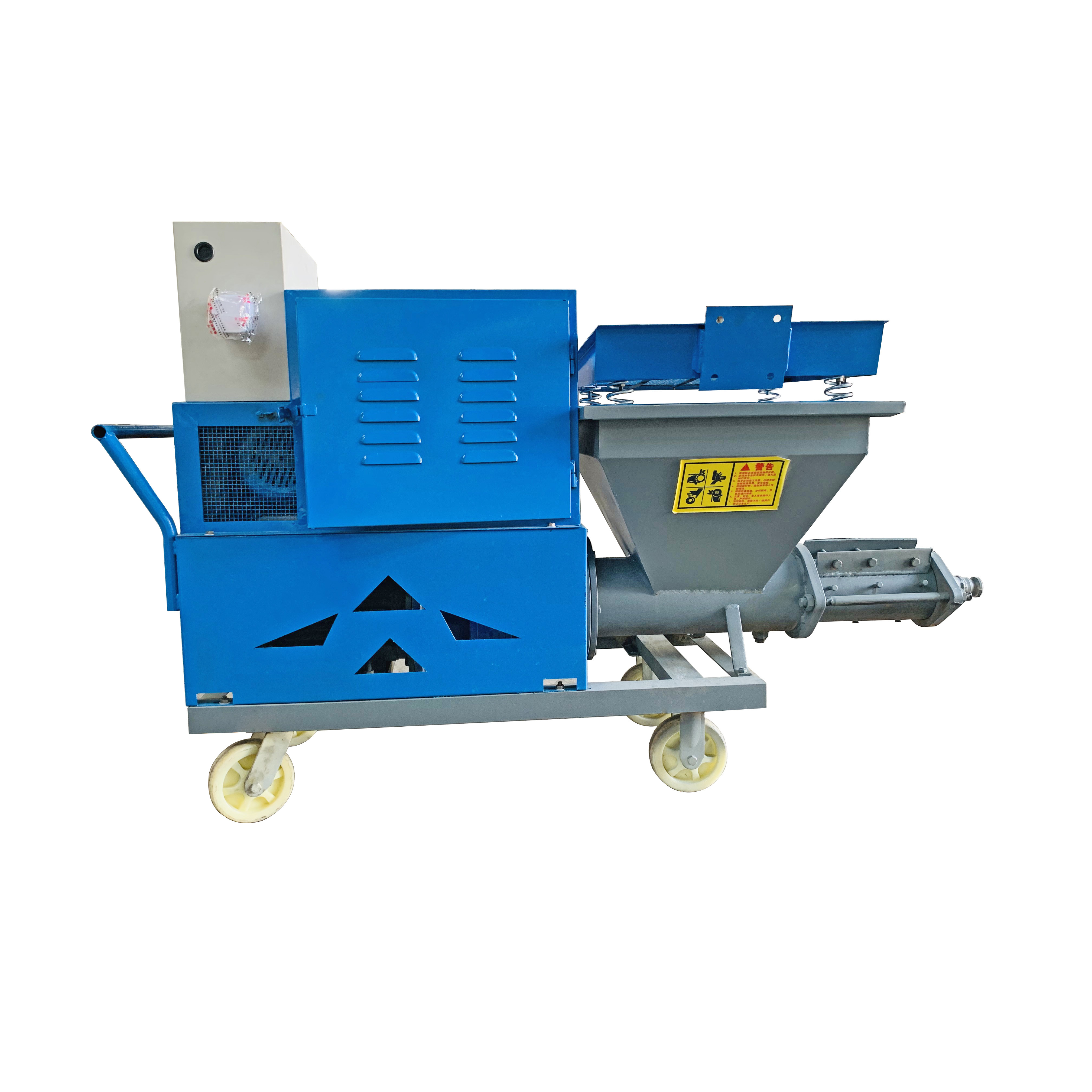

Mortar Spray Machine
-
Brand:
-
Tatooine
-
Keyword:
-
Concrete/Cement Spraying Machine
-
Air Pump Power:
-
2.2kw
-
Motor Power:
-
4kw-7.5kw
-
Voltage:
-
380v/3phase
-
Working Pressure:
-
5-8 mpa
-
Spraying Area:
-
150-220 m²/h
-
Certification:
-
CE/ISO
Quick Details
-
Max. vertical conveying distance:
-
10-25m
-
Max. horizontal conveying distance:
-
25-50m
-
Hopper Capacity:
-
20L
-
Application:
-
Building Construction
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Tatooine
-
Dimension(L*W*H):
-
1820*1000*1150mm
-
Weight:
-
300 kg
-
Power:
-
7.5kw
-
Marketing Type:
-
Hot Product 2022
-
Product Name:
-
Mortar Spray Machine
-
Brand:
-
Tatooine
-
Keyword:
-
Concrete/Cement Spraying Machine
-
Air Pump Power:
-
2.2kw
-
Motor Power:
-
4kw-7.5kw
-
Voltage:
-
380v/3phase
-
Working Pressure:
-
5-8 mpa
-
Spraying Area:
-
150-220 m²/h
-
Certification:
-
CE/ISO
Product Description
The mortar spraying machine is suitable for spraying scope: cement mortar, putty powder, paint, latex paint, real stone paint, thermal insulation mortar, waterproof material, fireproof material, thermal insulation material, sound-absorbing material and other water-soluble materials
Tatooine cement paint spray machine mortar cement spraying machine model concrete spraying machine
Specification
|
Metric
|
|
|
|
|||
|
Model
|
311
|
511
|
711
|
|||
|
Conveying Pipe Diameter
|
32 mm
|
38 mm
|
38 mm
|
|||
|
Air Pump Power
|
2.2kw
|
2.2 kw
|
2.2 kw
|
|||
|
Motor Power
|
4 kw
|
7.5 kw
|
7.5 kw
|
|||
|
Voltage
|
380V Three Phase Electric/Diesel Engine(customized)
|
380V Three Phase Electric/Diesel Engine(customized)
|
380V Three Phase Electric/Diesel Engine(customized)
|
|||
|
Spraying Area
|
150-170 m²/h
|
180-200 m²/h
|
220 m²/h
|
|||
|
Working Pressure
|
5-8 mpa
|
5-8 mpa
|
5-8 mpa
|
|||
|
Conveying Flow
|
3 m³/h
|
3 m³/h
|
4 m³/h
|
|||
|
Water:Cement:Sand
|
1:1:3
|
1:1:3
|
1:1:3
|
|||
|
The Maximum Passing Particle
|
4 mm
|
4 mm
|
4 mm
|
|||
|
Maximum Vertical Distance
|
10-15 m
|
15-20 m
|
20-25 m
|
|||
|
Maximum Horizontal Distance
|
25-35 m
|
30-40 m
|
40-50 m
|
|||
|
Overall Dimensions
|
1600*450*900 mm
|
1700*600*1100 mm
|
1800*650*1000 mm
|
|||
|
Total Weight
|
150 kg
|
300 kg
|
360 kg
|
|||
|
Scope of Application
|
motar,putty,paint,etc
|
motar ,putty,paint,etc
|
motar ,putty,paint,etc
|
|||
|
IMPERIAL
|
|
|
|
|||
|
Model
|
311
|
511
|
711
|
|||
|
Conveying pipe diameter
|
1.26''
|
1.5''
|
1.5''
|
|||
|
Air pump power
|
3hp
|
3hp
|
3hp
|
|||
|
Motor power
|
5.5hp
|
10hp
|
10hp
|
|||
|
Voltage
|
110v/380v/220v/415v/440v(customized)
|
110v/380v/220v/415v/440v(customized)
|
110v/380v/220v/415v/440v(customized)
|
|||
|
Spraying area
|
1615-1830ft*2/h
|
1938 -2153ft*2/h
|
1938 - 2153ft*2/h
|
|||
|
Conveying flow
|
106bcf/h
|
106bcf/h
|
141bcf/h
|
|||
|
Maximum passing particle
|
0.16''
|
0.16''
|
0.16''
|
|||
|
Maximum vertical distance
|
394''-591''
|
591''-788''
|
788''-985''
|
|||
|
Maximum horizontal distance
|
985''-1378''
|
1182''-1575''
|
1575''-1969''
|
|||
|
Overall dimensions(L*W*H)
|
63 ''*18''* 36''
|
67''* 24 ''*44''
|
71''* 26''* 39''
|
|||
|
Total weight
|
331ib
|
662ib
|
794ib
|
|||
|
Scope of application
|
motar,putty,paint,etc
|
motar,putty,paint,etc
|
motar,putty,paint,etc
|
|||
Product Details
Product advantage
1. Copper core motor, stable performance, not easy to burn machine
2. The connection between the spray gun and the feeding tube can be rotated, which is easy to operate
3. High construction efficiency, good quality, and small size, easy to handle on site
4. Sealing rubber sleeve, made of black rubber, wear-resistant and corrosion-resistant
Tatooine cement paint spray machine mortar cement spraying machine model concrete spraying machine
Packing & Delivery
We adopt wooden and iron box to pack machines, better guarantee the safety and quality of products.And we adopt multiple port, multiple exit point. Such as Shanghai, Qingdao, Guangdong and other regions. Product transportation will be faster and more convenient
